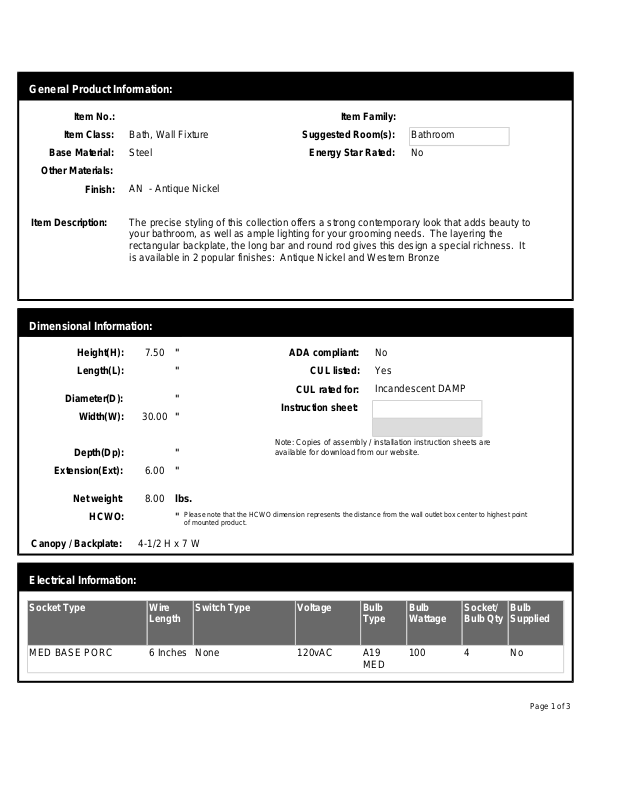

Page 1
TY8604AN
Page 1 of 3
Bath, Wall Fixture
Item Description:
Other Materials:
Steel
Base Material:
AN - Antique Nickel
Finish:
The precise styling of this collection offers a strong contemporary look that adds beauty to
your bathroom, as well as ample lighting for your grooming needs. The layering the
rectangular backplate, the long bar and round rod gives this design a special richness. It
is available in 2 popular finishes: Antique Nickel and Western Bronze
Item Class:
General Product Information:
Suggested Room(s):
Bathroom
No
Energy Star Rated:
CUL rated for:
Incandescent DAMP
Height(H):
Length(L):
Diameter(D):
Width(W):
"
ADA compliant:
Depth(Dp):
Extension(Ext):
Net weight:
HCWO:
Canopy / Backplate:
CUL listed:
"
"
"
"
"
lbs.
"
4-1/2 H x 7 W
8.00
6.00
30.00
7.50 No
Note: Copies of assembly / installation instruction sheets are
available for download from our website.
Yes
Please note that the HCWO dimension represents the distance from the wall outlet box center to highest point
of mounted product.
Dimensional Information:
MED BASE PORC 6 Inches None 120vAC A19
MED
100 4 No
Socket Type Wire
Length
Switch Type Voltage Bulb
Type
Bulb
Wattage
Socket/
Bulb Qty
Bulb
Supplied
Electrical Information:
Item No.: Item Family:
Instruction sheet:
Page 2
TY8604AN
Page 2 of 3
(1) CROSSBAR, (1) GREEN GROUND SCREW, (2) LOCK WASHERS, (1) NIPPLE, (1) LOCK BALL or KNOB
Mounting Hardware
Supplied chain:
Mounting Hardware:
Shade
Number
Shade Type Material Meas. AMeas. BMeas. CMeas. DMeas. EGlass
Count
Stem
Height
Description
Meas. Key: A) Top dia. (Round, Drum, Oct), Top Flat to Flat (Hex), Minor axis (Oval), Top short side (Rect /Sq. Cut Corner), Top (Sq. Cut
Corner) | B) Bottom dia. (Round, Drum, Oct), Bottom Flat to Flat (Hex), Major axis (Oval), Top long side (Rect / Sq. Cut Corner), Bottom (Sq.
Cut Corner) | C) Side (Round, Drum, Hex, Oct, Sq. Cut Corner), Bottom minor axis (Oval), Bottom Short side (Rect / Sq. Cut Corner) | D)
Bottom major axis (Oval), Bottom long side (Rect / Sq. Cut Corner), Side (Rect / Sq. Cut Corner, Oval).
Shade Information:
G2440SH SHADE ETCHED OPAL GLASS 3.5D 4
Replacement Parts Information:
Shipping Information:
Individual Reshippable 32.50 11.50 8.00 10.00 39.00 1.73 1 10
Pack Type Pack
Length
Pack
Width
Pack
Height
Gross
Wgt
Girth Cube Pack
QTY
Dim
Wgt
Glass Shade Glass 3.50 5.50 Opal Etched Glass
Part Number: Description: Qty:
BASE ANTQ NIKL 1
Note: Replacement parts are available by contacting our customer service department .
Page 3
TY8604AN
Page 3 of 3

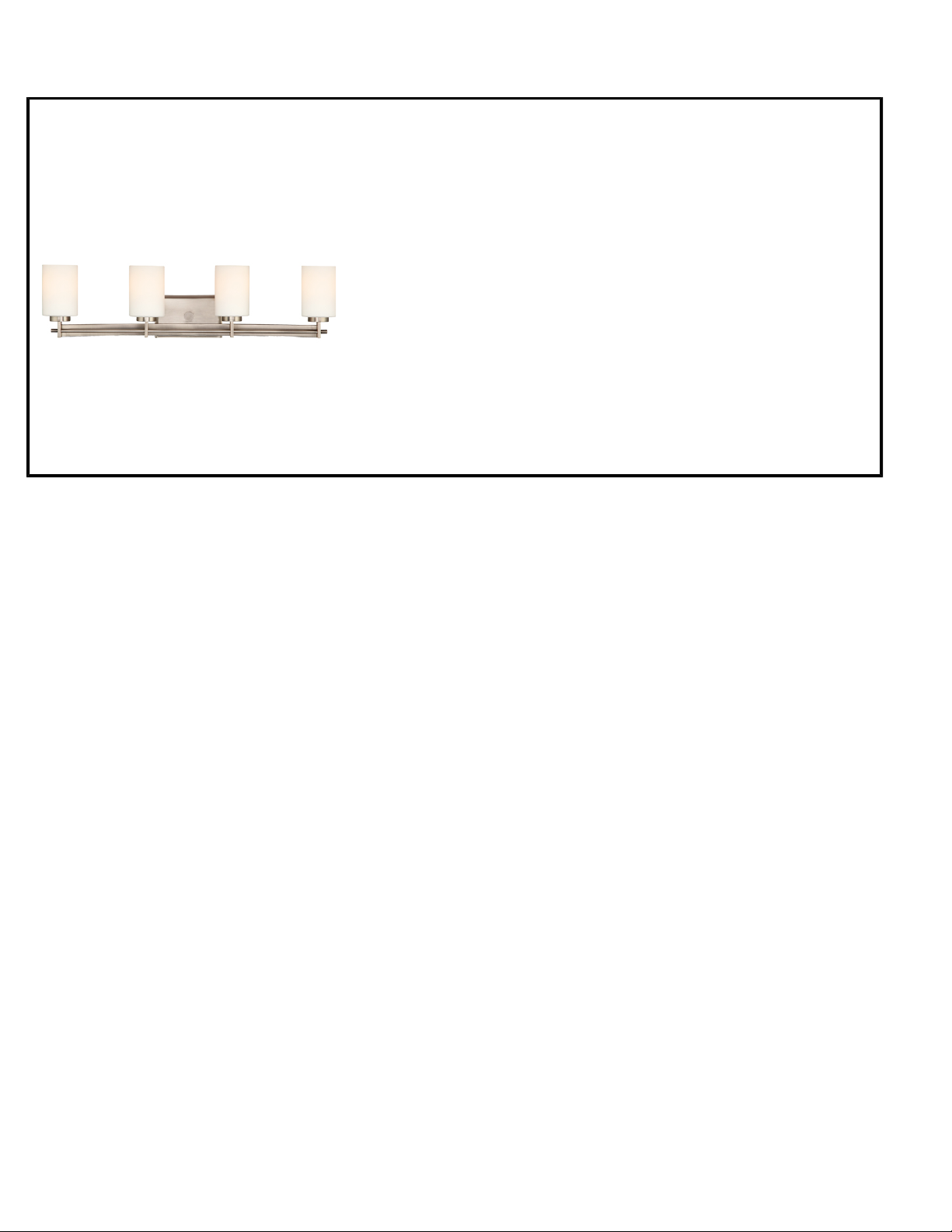

Product Photo:
