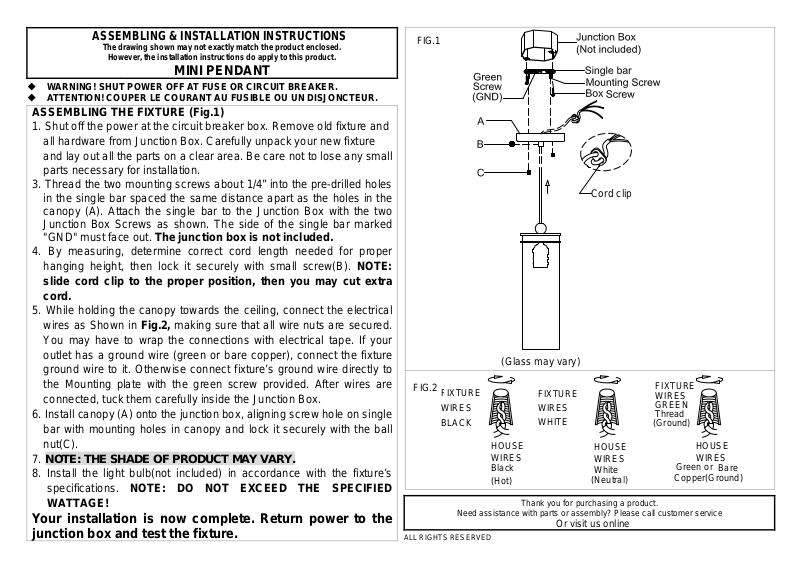

ASSEMBLING & INSTALLATION INSTRUCTIONS
The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJ ON CTEUR.
MINI PENDANT

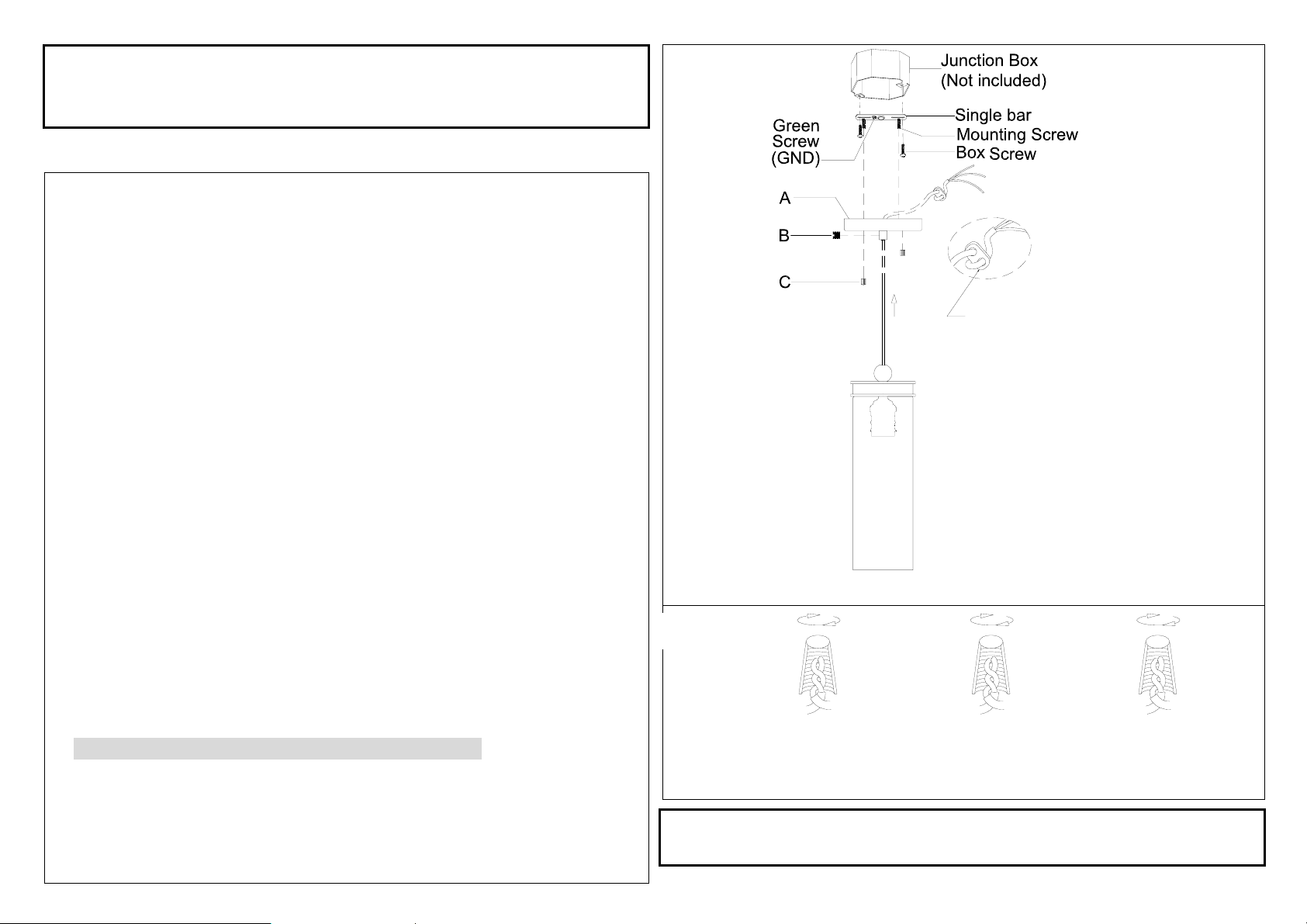

ASSEMBLING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker box. Remove old fixture and
all hardware from Junction Box. Carefully unpack your new fixture
and lay out all the parts on a clear area. Be care not to lose any small
parts necessary for installation.
3. Thread the two mounting screws about 1/4” into the pre-drilled holes
in the single bar spaced the same distance apart as the holes in the
canopy (A). Attach the single bar to the Junction Box with the two
Junction Box Screws as shown. The side of the single bar marked
"GND" must face out. The junction box is not included.
4. By measuring, determine correct cord length needed for proper
hanging height, then lock it securely with small screw(B). NOTE:
slide cord clip to the proper position, then you may cut extra
cord.
5. While holding the canopy towards the ceiling, connect the electrical
wires as Shown in Fig.2, making sure that all wire nuts are secured.
You may have to wrap the connections with electrical tape. If your
outlet has a ground wire (green or bare copper), connect the fixture
ground wire to it. Otherwise connect fixture’s ground wire directly to
the Mounting plate with the green screw provided. After wires are
connected, tuck them carefully inside the Junction Box.
6. Install canopy (A) onto the junction box, aligning screw hole on single
bar with mounting holes in canopy and lock it securely with the ball
nut(C).
7. NOTE: THE SHADE OF PRODUCT MAY VARY.
8. Install the light bulb(not included) in accordance with the fixture’s
specifications. NOTE: DO NOT EXCEED THE SPECIFIED
WATTAGE!
Your installation is now complete. Return power to the
junction box and test the fixture.
FIG.1
FIG.2
FIXTURE
WIRES
BLACK
Need assistance with parts or assembly? Please call customer service
ALL RIGHTS RESERVED
(Glass may vary)
FIXTURE
WIRES
WHITE
HOUSE
WIRES
Black
(Hot)
Thank you for purchasing a product.
Cord clip
HOUSE
WIRES
White
(Neutral)
Or visit us online
FIXTURE
WIRES
GREEN
Thread
(Ground)
Green or
Copper(Ground)
