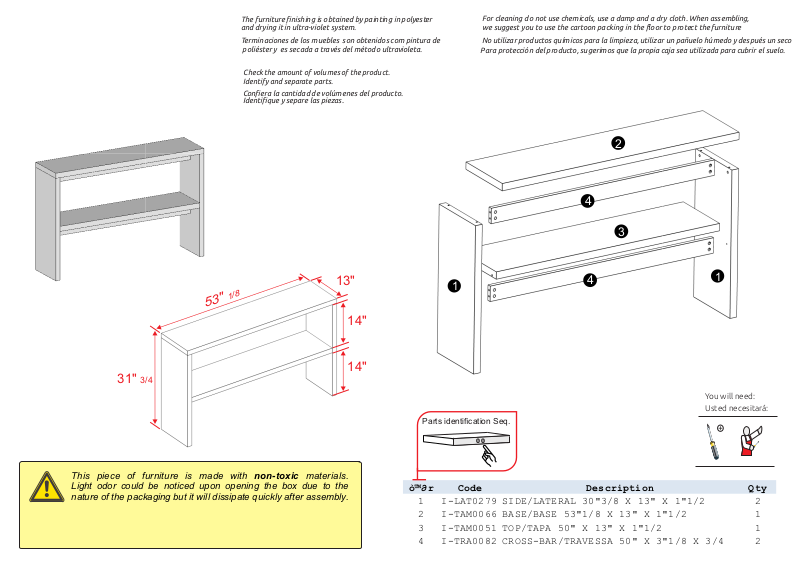

Page 1
ò™∂r Code Description Qty
1 I-LAT0279 SIDE/LATERAL 30"3/8 X 13" X 1"1/2 2
2 I-TAM0066 BASE/BASE 53"1/8 X 13" X 1"1/2 1
3 I-TAM0051 TOP/TAPA 50" X 13" X 1"1/2 1
4 I-TRA0082 CROSS-BAR/TRAVESSA 50" X 3"1/8 X 3/4 2
The furniture finishing is obtained by painting in polyester
and drying it in ultra-violet system.
Terminaciones de los muebles son obtenidos com pintura de
poliéster y es secada a través del método ultravioleta.
Check the amount of volumes of the product.
Identify and separate parts.
Confiera la cantidad de volúmenes del producto.
Identifique y separe las piezas.
For cleaning do not use chemicals, use a damp and a dry cloth. When assembling,
we suggest you to use the cartoon packing in the floor to protect the furniture
No utilizar productos químicos para la limpieza, utilizar un pañuelo húmedo y después un seco
Para protección del producto, sugerimos que la propia caja sea utilizada para cubrir el suelo.
2
4
3
13"
53" 1/8
14"
14"
31" 3/4
This piece of furniture is made with non-toxic materials.
Light odor could be noticed upon opening the box due to the
nature of the packaging but it will dissipate quickly after assembly.
1
Parts identification Seq.
00
4
1
You will need:
Usted necesitará:

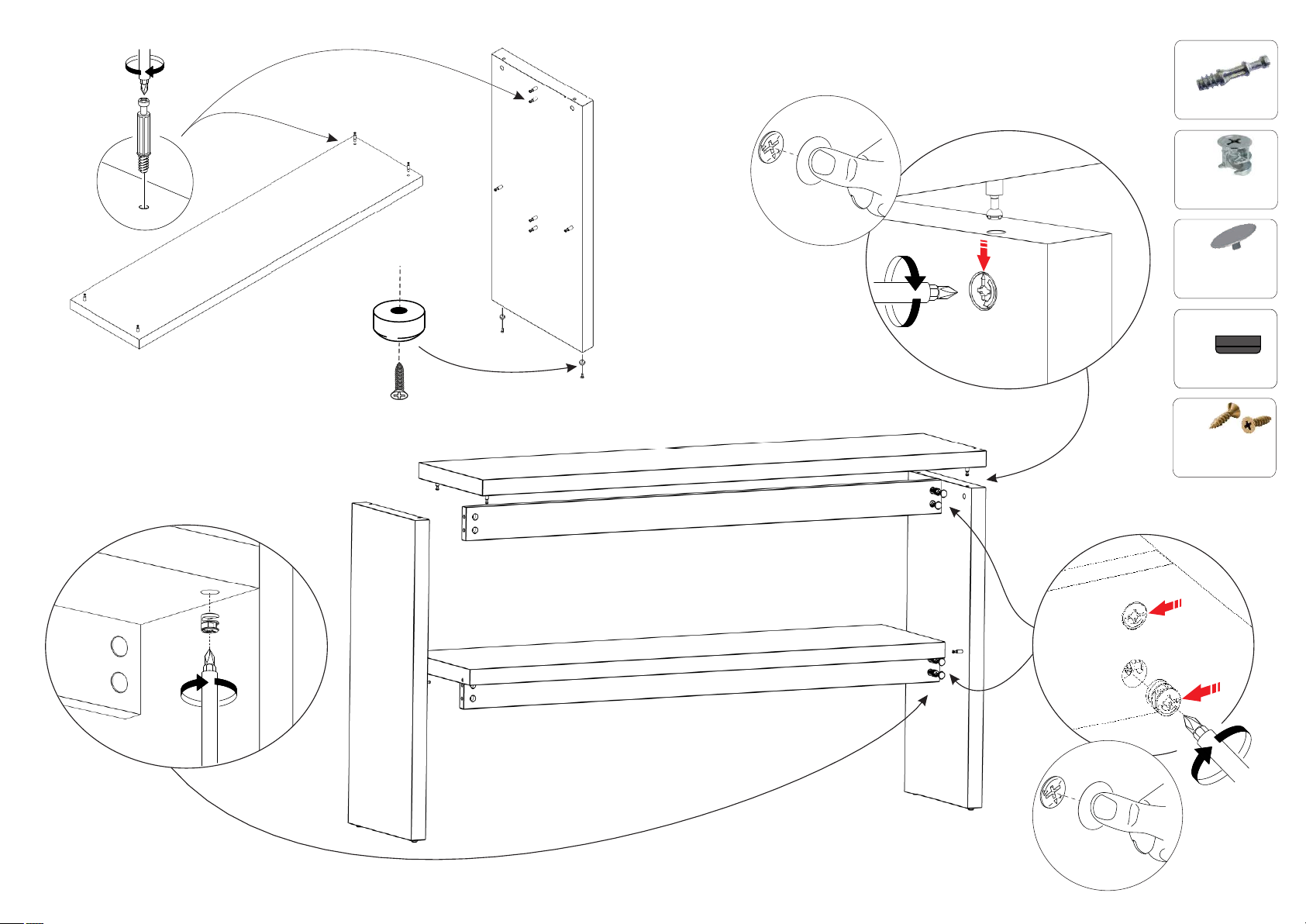

Page 2
A
16X
Minifix bolt
Pasador minifix
B
16X
Chestnut minifix
Castaña minifix
C
16X
Top minifix 15mm
Tapa minifix
4X
D
Base 15 x 15mm
E
4X
Screw / Tornillo
3,5x14mm
