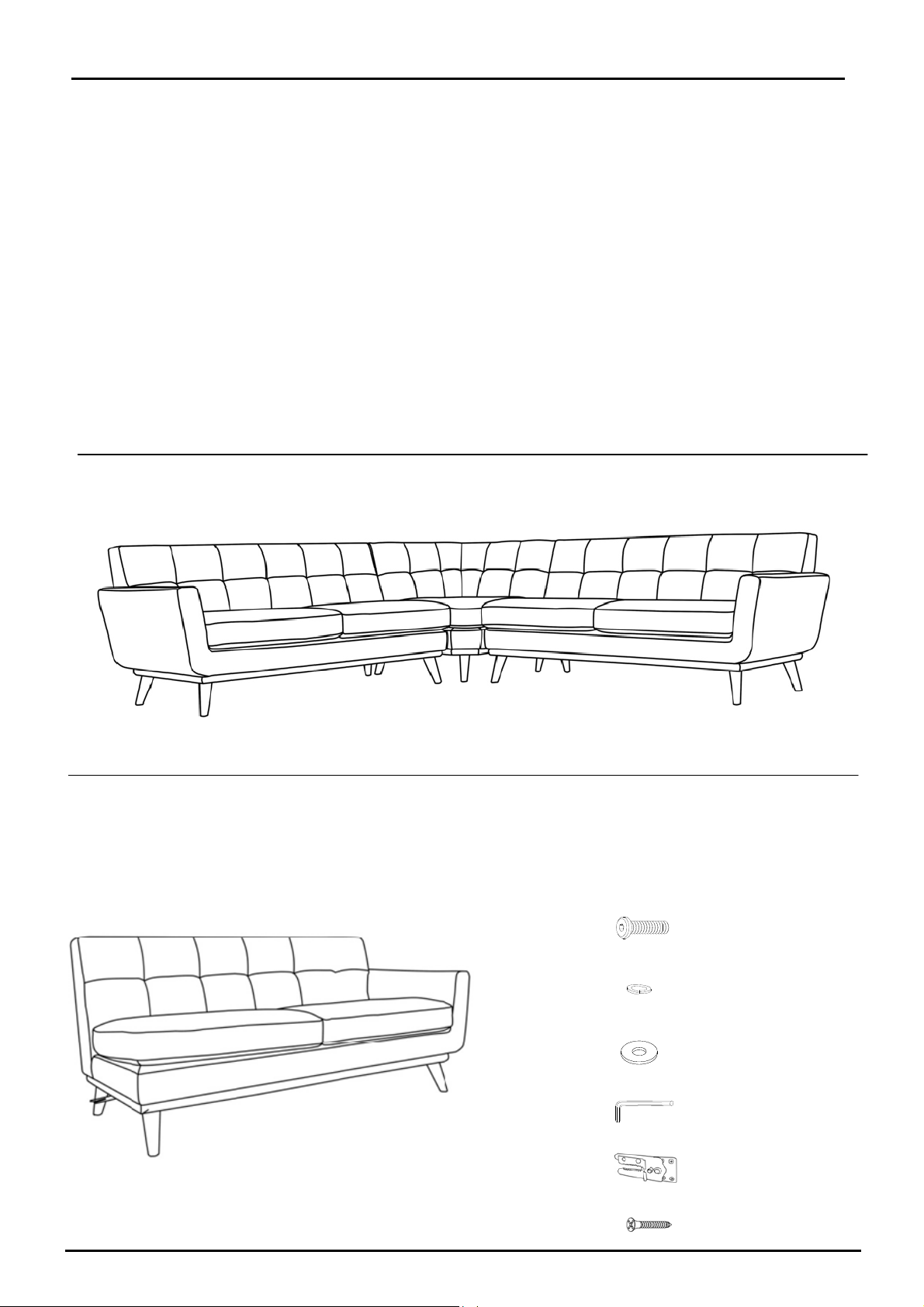

3 PIECE SECTIONAL SOFA SET
Thank you for purchasing the 3 PIECE SECTIONAL SOFA SET!
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the 3 piece sectional sofa set, we recommend that it is assembled by two adults,
on a carpeted or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of small children.

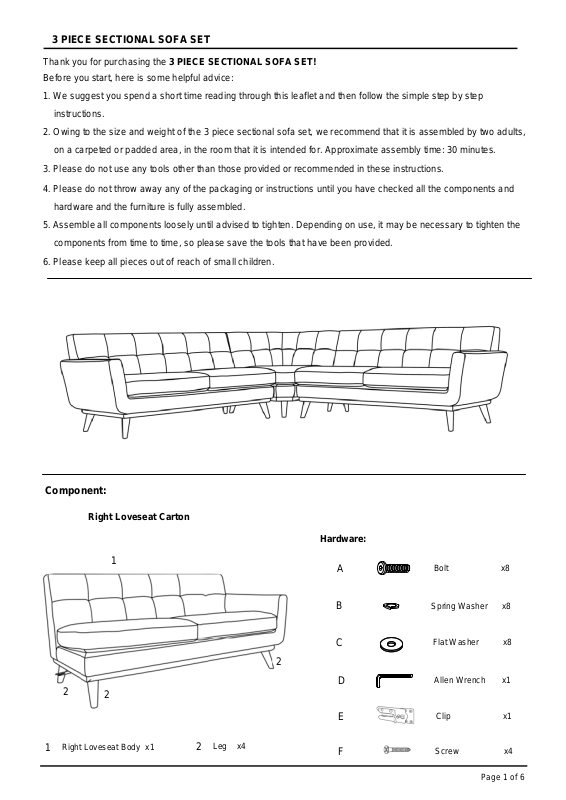

Component:
Right Loveseat Carton
4
2
2
1
Hardware:
A
B
C
2
D
E
Bolt x8
Spring Washer x8
Flat Washer x8
Allen Wrench x1
Clip x1
Right Loveseat Body x1
1
Leg x4
2
Page 1 of 6
F
Screw x4
Page 2
3 PIECE SECTIONAL SOFA SET

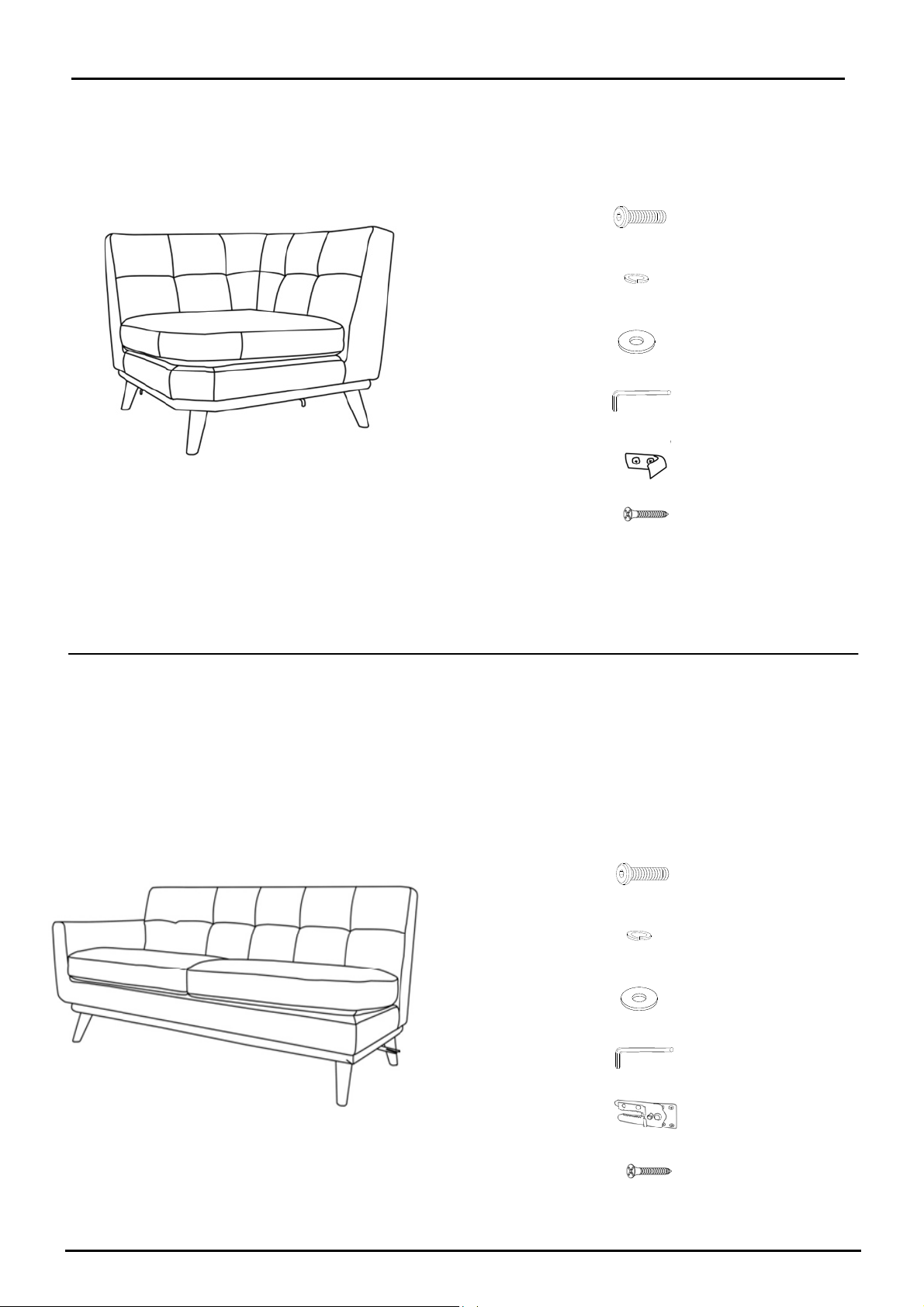

Corner Carton
Hardware:
2
3
Corner Body x1
2
3
2
2
Leg x4
A
B
C
D
G
F
Bolt x8
Spring Washer x8
Flat Washer x8
Allen Wrench x1
Clip Post x2
Screw x4
Left Loveseat Carton
2
Left Loveseat Body x1
4
4
2
2
Leg x4
2
Hardware:
A
B
C
D
E
F
Bolt x8
Spring Washer x8
Flat Washer x8
Allen Wrench x1
Clip x1
Screw x4
Page 2 of 6
Page 3
3 PIECE SECTIONAL SOFA SET
STEP 1:

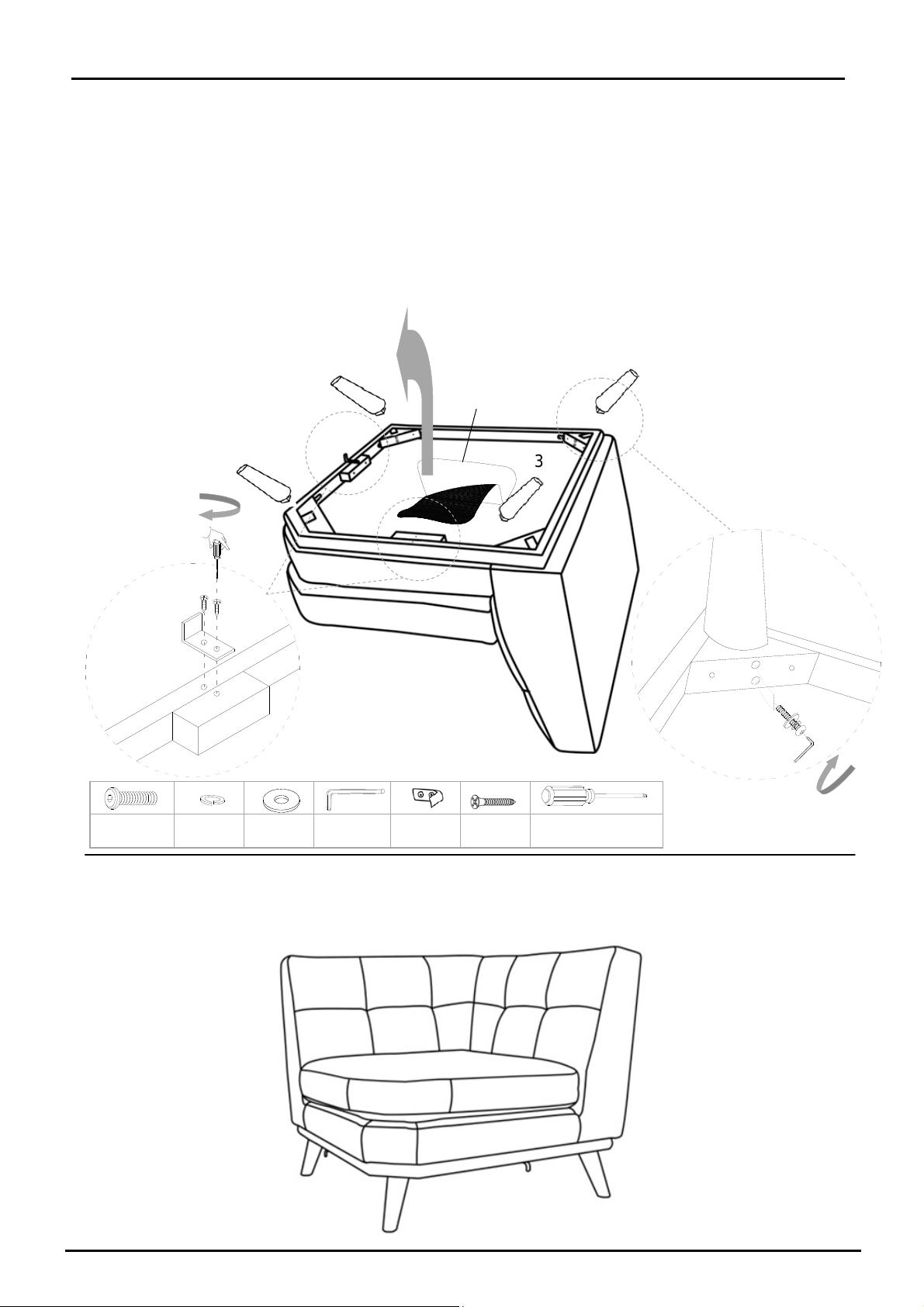

Please put the Corner Body (3) upside down on a carpeted or padded area b y two adults to make fully visible the corners.
Open the Zipper on the bottom of Corner Body (3) as shown.
Take out the 4pcs Legs (2) and hardware package on bottom of the Corner Body (3).
Position one of Legs (2) at one of the four wooden corners.
Insert 2 pieces of each Spring Washer (B), Flat Washer (C) into 2 pieces of Bolt (A) as shown.
Then insert assembled 2 pieces of Bolts (A) into the corner to connect the Leg(2).
Use Allen Wrench (D) to tighten all of Bolts (A).
Repeat the same steps for the remaining three legs (2).
Secure 2pcs Clip Post (G) to the Bottom of Corner Body (3) by using 4pcs Screw (F).
Tighten all Screws (F) with a Phillips Head Screwdriver (not included).
4pcs Legs
+
Hardware Package
Zipper on the bottom
2
of Corner body
2
3
2
F
F
G
3
Ax8 Bx8
STEP 2:
Carefully turn over the corner .
Cx8
Dx1
Gx2
Fx4
2
Phillips Head Screwdriver
( not included)
2
B
3
C
Hardware & Tool required
D
A
Page 3 of 6
Page 4
3 PIECE SECTIONAL SOFA SET
STEP 5:

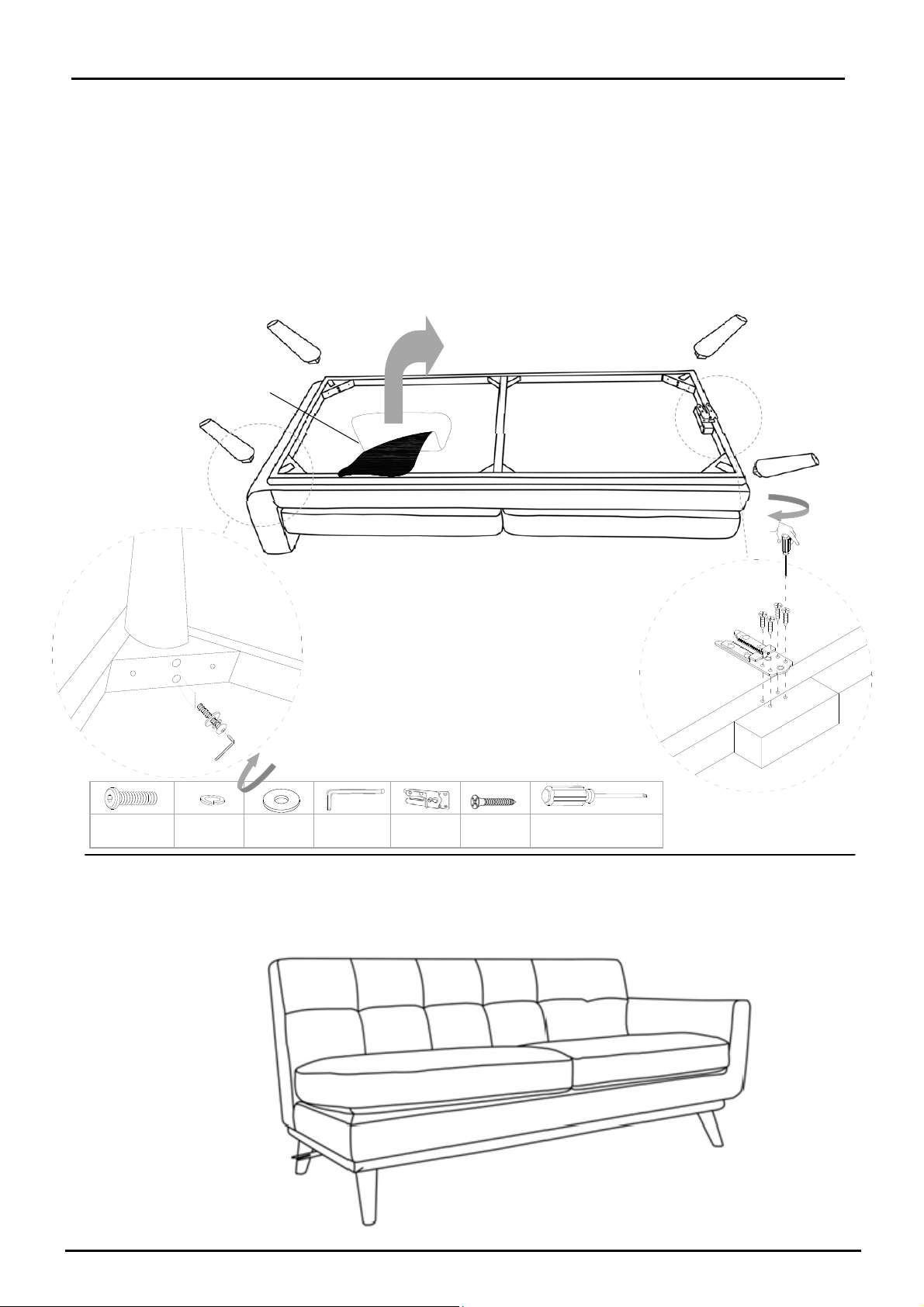

Please put the Left Loveseat Body (1) upside down on a carpeted or padded area by two adults to make fully visible the corners.
Open the Zipper on the bottom of Left Loveseat Body (1) as shown.
Take out the 4pcs Legs (2) and hardware package on bottom of the Left Loveseat Body (1).
Position one of Legs (2) at one of the four wooden corners.
Insert 2 pieces of each Spring Washer (B), Flat Washer (C) into 2 pieces of Bolt (A) as shown.
Then insert assembled 2 pieces of Bolts (A) into the corner to connect the Leg(2).
Use Allen Wrench (D) to tighten all of Bolts (A).
Repeat the same steps for the remaining three legs (2).
Secure 1pc Clip (E) to the Bottom of Left Loveseat Body (3) by using 4pcs Screw (F).
Tighten all Screws (F) with a Phillips Head Screwdriver (not included).
4pcs Legs
2
Zipper on the bottom
of Loveseat body
2
+
Hardware Package
2
2
2
3
Ax8 Bx8
STEP 4:
C
2
A
B
D
2
Cx8
Dx1
Ex1
Fx4
1
Phillips Head Screwdriver
( not included)
2
F
E
2
Hardware & Tool required
Carefully turn over the Left loveseat.
Page 4 of 6
Page 5
3 PIECE SECTIONAL SOFA SET
STEP 5:
Repeat the same steps for the right Loveseat.
4
2
2
2
Ax8 Bx8
STEP 6:

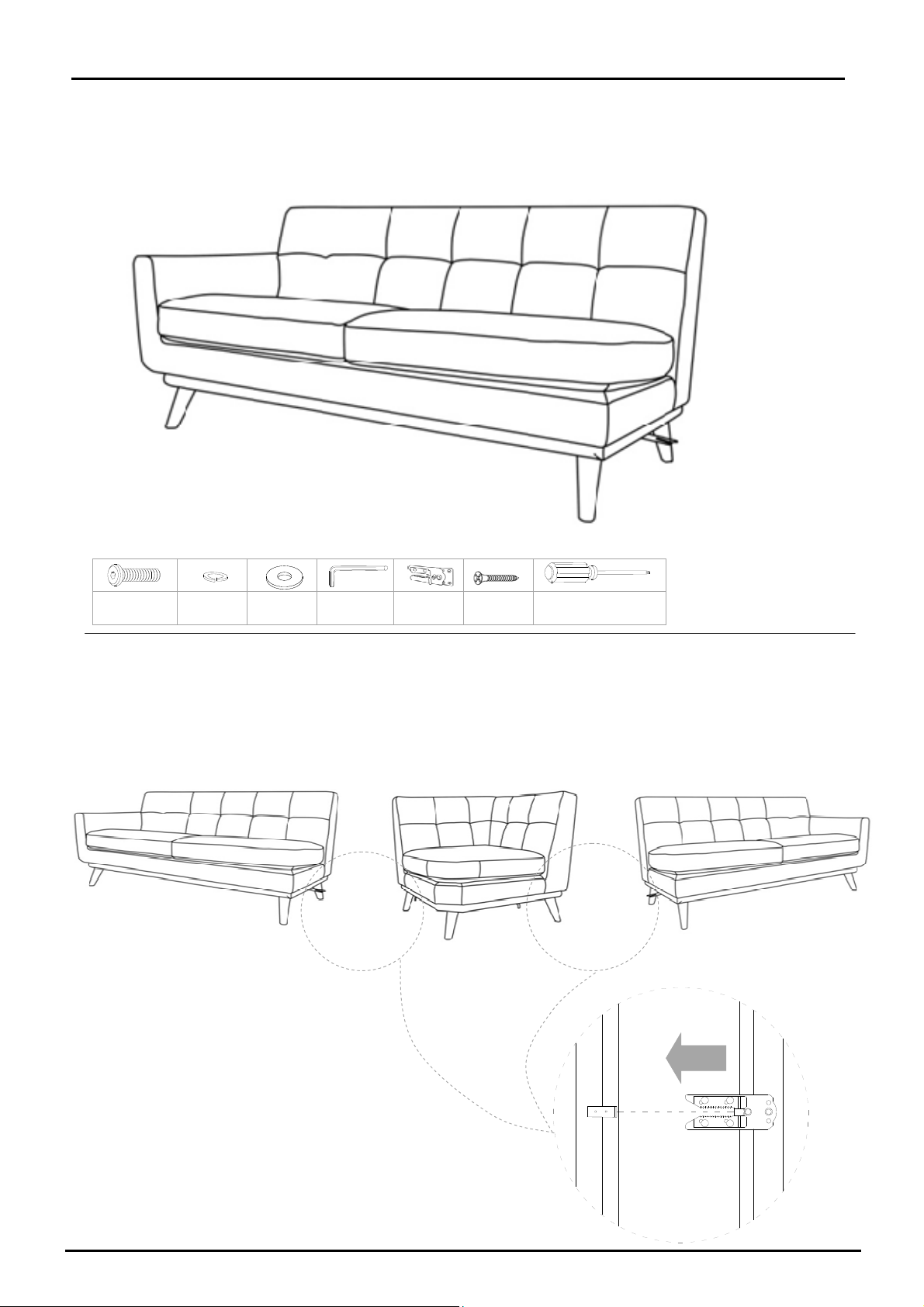

Please place the Corner (3) at your desired location.
Align the Clips (E) on the bottom of Loveseat (1&4) to the Clip Posts (G) on the bottom of Corner (3) as shown.
Push the Loveseats (1&4) close to the Corner (2) slowly until the Clip and the Post click together tightly.
Cx8
Dx1
Ex1
Fx4
3
Phillips Head Screwdriver
( not included) Hardware & Tool required
1 4
G
3
Page 5 of 6
E
1&4
Page 6
3 PIECE SECTIONAL SOFA SET
STEP 7:

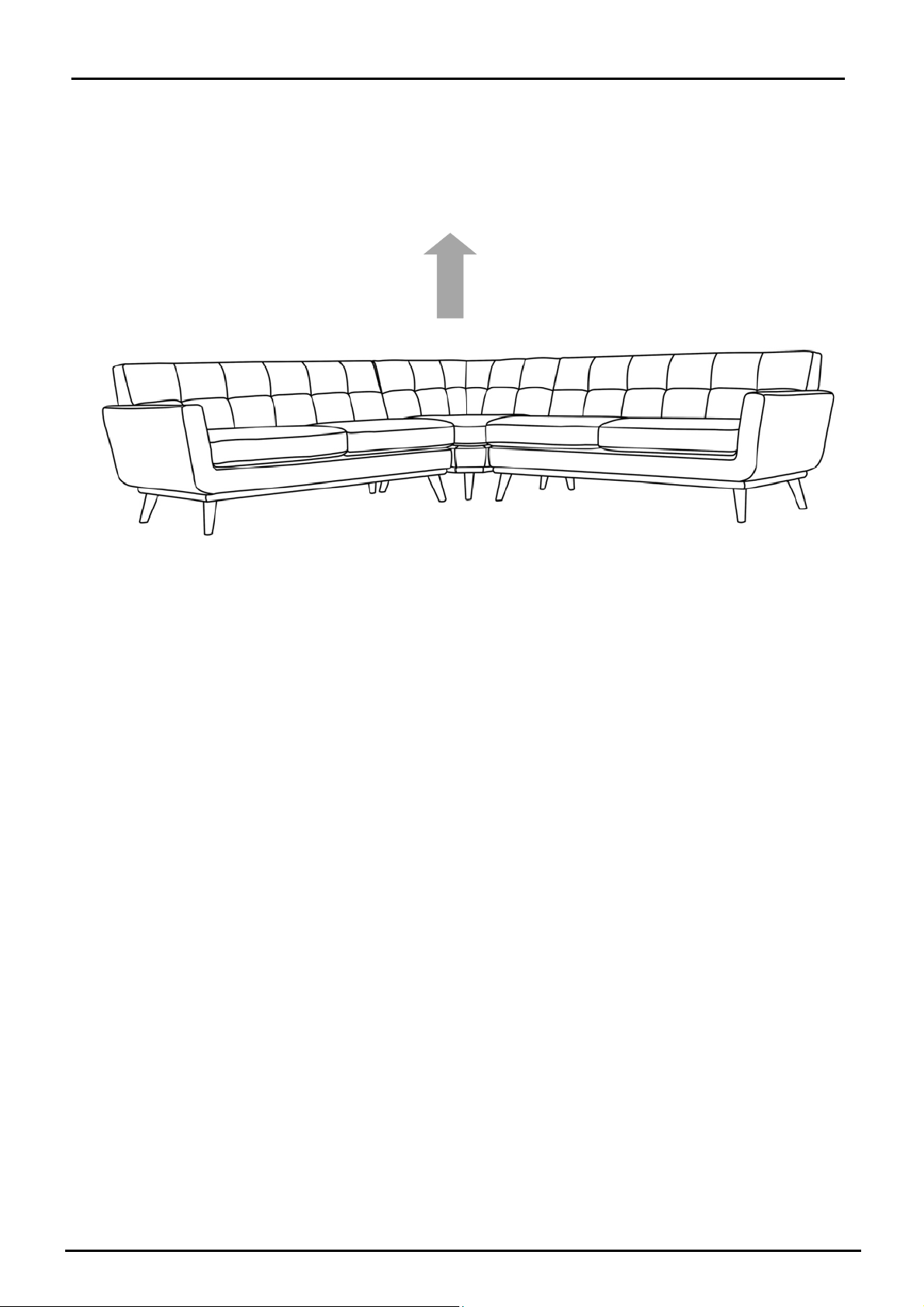

If you want to unlock the sofa. Please lift up the Corner (3) by two people.
4
3
1
Assembly is completed. The 3 piece sectional sofa set is ready to enjoy now!
Page 6 of 6
