Ou
tdoor Arm Chair
PART LIST
A B
Back Panel
1 PC
F
Core of Seat
Cushion
1 PC
G H
Cover of Back
Seat Panel
1 PC
Cushion *
1 PC
HARDWARE LIST
C
Right Arm Panel
1 PC
Core of Back
Cushion
1 PC
D
Left Arm Panel
1 PC
*Please note cushion covers will
ship separately.
E
Cover of Seat
Cushion *
1 PC
#1
M6*15mm
Short Bolt
4 PCS
#2
M6*30mm
Medium Bolt
2 PCS
#3 #5
M6*45mm
Long Bolt
EXTRA HARDWARE LIST
#1
M6*15mm
Short Bolt
1 PC
#2 #3 #4
M6*30mm
Medium Bolt
1 PC
M6*45mm
Long Bolt
4 PCS
1 PC
#4
M6mm
Flat Washer
10 PCS
M6mm
Flat Washer
1 PC
M6mm
Allen Wrench
1 PC
2
Step 1.
Attach back panel (part A) to left arm panel (part D) using long bolts (part #3), flat
washers (part #4) and allen wrench (part #5).
NOTE: Please do not fully tighten bolts until unit is fully assembled.
Lay left arm panel (part D) down on a soft flat surface, such as carpet, as shown below.
#5
#3
A
#4
D
Step 2.
short bolts (part #1), medium bolts (part #2), flat washers (part #4) and allen
wrench (part #5).
Attach seat panel (part B) to left arm panel (part D) and back panel (part A) using
#3
#4
#5
x2
x2
x1
NOTE: Please do not fully tighten bolts until unit is fully assembled.
#5
#1
#4
A
#2
#4
B
#5
D
#1
#2
#4
#5
x2
x2
x4
x1
3
Step 3.
bolts (part #1), long bolts (part #3), flat washers (part #4) and allen wrench (part #5).
NOTE: Please fully tighten all bolts at this time.
Attach right arm panel (part C) to back panel (part A) and seat panel (part B) using short
C
A
B
#4
#1
#5
D
Step 4. Insert core of seat cushion (part F) into cover of seat cushion (part E).
lnsert core of back cushion (part H) into cover of back cushion (part G).
#1
#3
#4
#5
#4
#3
#5
x2
x2
x4
x1
H
F
E
G
4

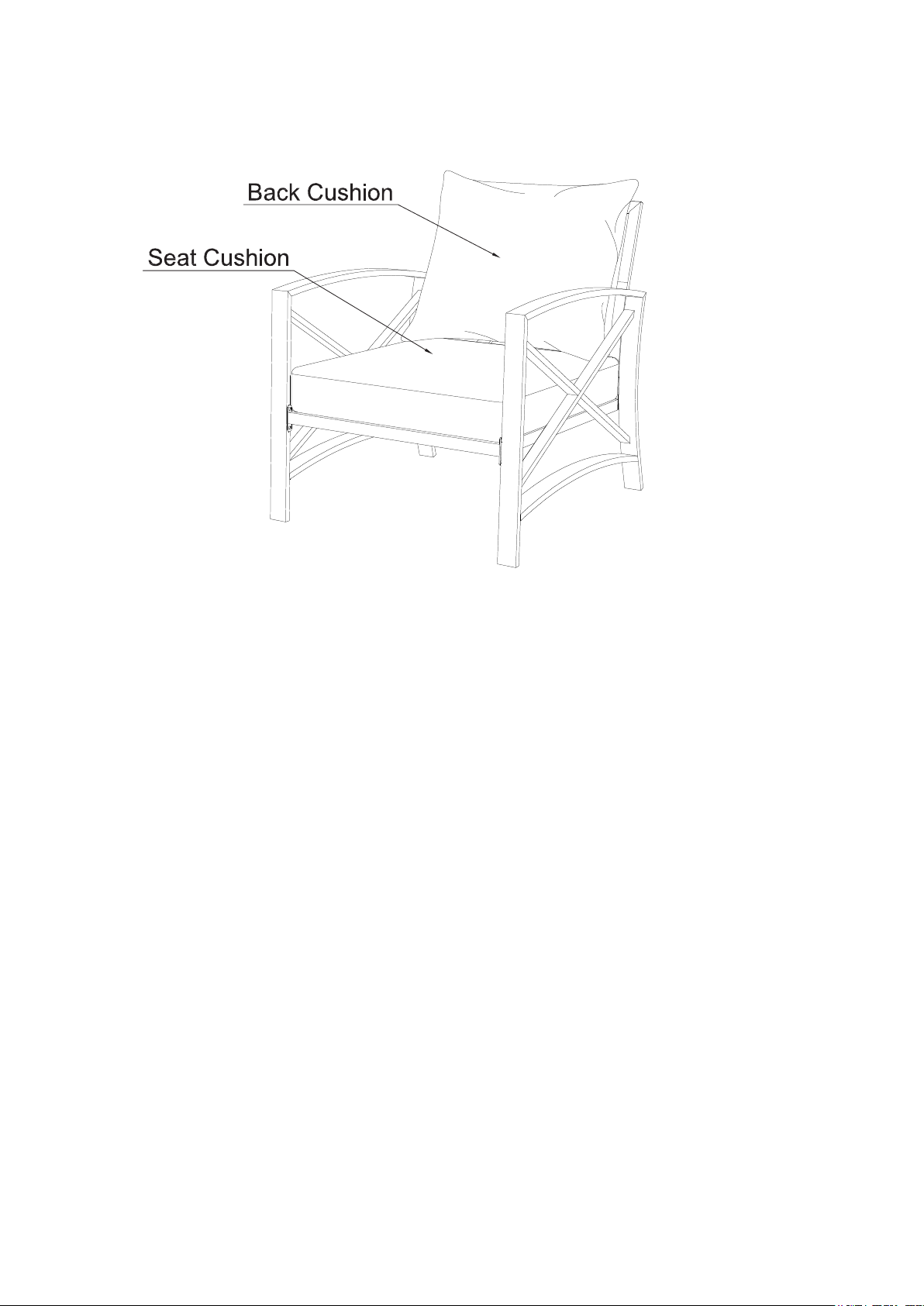

Step 5. Carefully turn unit upright and add cushions as shown below.
5
