Page 1

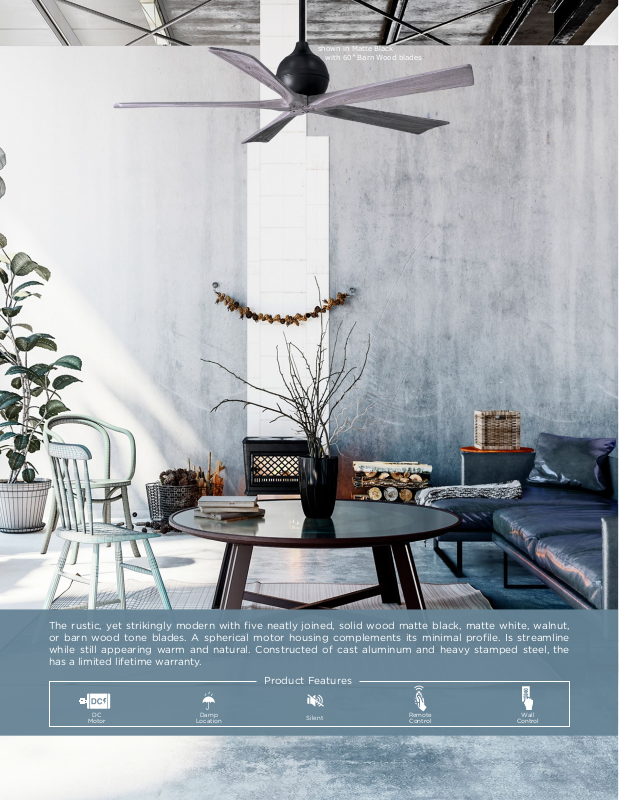

shown in Matte Black
with 60” Barn Wood blades
The rustic, yet strikingly modern with five neatly joined, solid wood matte black, matte white, walnut,
or barn wood tone blades. A spherical motor housing complements its minimal profile. Is streamline
while still appearing warm and natural. Constructed of cast aluminum and heavy stamped steel, the
has a limited lifetime warranty.
Product Features
DC
Motor
Damp
Location
Silent
Remote
Control
Wall
Control
Page 2
shown in Matte Black
with 52" Matte White blades
FINISH AND BLADE OPTIONS
shown in Textured Bronze
with 42" Barn Wood blades
shown in Matte Black
with 60" Barn Wood blades
shown in Textured Bronze
with 52" Walnut blades
NEW
NEW
Standard
Finishes
Blade Finishes
Fan Diameter
Matte Black BK
Textured Bronze TB
Barn Wood Tone BW
Matte Black BK
Matte White MWH
Walnut Tone WA
42 inches / 107 cm 42
52 inches / 132 cm 52
60 inches / 152 cm 60
TECHNICAL SPECS
Fan Diameter
Blade Material CNC Cut Solid Wood
Overall Drop 12 inches / 30 cm + downrod length
Fan Weight 18 lbs
Downrods Lengths
Field cuttable. Non-
threaded
Downrod Diameter 1 inch
Voltage 110 or 220
Motor Type DC
Environment
Ambience Silent
Safety Certification ETL / CETL
Warranty Limited Lifetime
inches: 42, 52 or 60
centimeters: 107, 132 or 152
inches: 5, 10, 20, 30, 48, 72
centimeters: 13, 25, 51, 76, 122, 183
Damp locations for all finishes
Neither coastal, saltwater nor
chlorine compatible
NEW JAN 21, 2020 DOE MOTOR EFFICIENCY DATA
Fan Diameter
RPM (Low / High) 52 / 229 51 / 156 52 / 77
CFM (Low / High) 852 / 4261 1784 / 5783 3328 / 5006
Watts (High) 25.33 32.18 31.38
CFM/Watt (High) 150 179 175
Blade Pitch 15° 15° 15°
42 inch /
107 cm
52 inch /
132 cm
60 inch /
152 cm
STANDARD EQUIPMENT
One downrod of 10 inches / 25 cm
Vaulted ceiling canopy for up to 30°
shown in Matte Black
with 52" Matte Black blades
6-speed RF
remote control
w/reverse in black
NOTE: Only compatible with included controllers.
Wireless
Decora-style,
6-speed, wall
control in white
Blade Options
Barn
Wood
Matte
Black
Matte
White
Walnut
Page 3
Irene-5
weight: 18 lbs
voltage: 110/220
2" / 5 cm
Downrods available in
inches: 5, 10, 20, 30, 48 or 72
centimeters: 13, 25, 51, 76, 122, or 183
TECHNICAL SPECIFICATIONS
6" / 15 cm diameter
Blade Pitch 15°
CEILING PITCH TABLE
0/12 0 degrees
1/12 4.76 degrees
2/12 9.46 degrees
3/12 14.04 degrees
4/12 18.43 degrees
5/12 22.62 degrees
6/12 26.57 degrees
7/12 30.26 degrees
8/12 33.69 degrees
9/12 36.87 degrees
10/12 39.81 degrees
11/12 42.51 degrees
10" / 25 cm
42", 52" or 60" / 107 cm, 132 cm or 152 cm
CEILING HEIGHT / DOWNROD
Ceiling
Height
10 ft or less
10 -12 feet 10 inches / 25 cm
13 feet 20 inches / 51 cm
14 feet 30 inches / 76 cm
15 feet 48 inches / 122 cm
16 feet + 72 inches / 183 cm
6" / 15 cm width
TABLE
Downrod Lengths
Field cuttable. Non-threaded
5 inches / 13 cm
Use safety cages if applicable
