Page 1

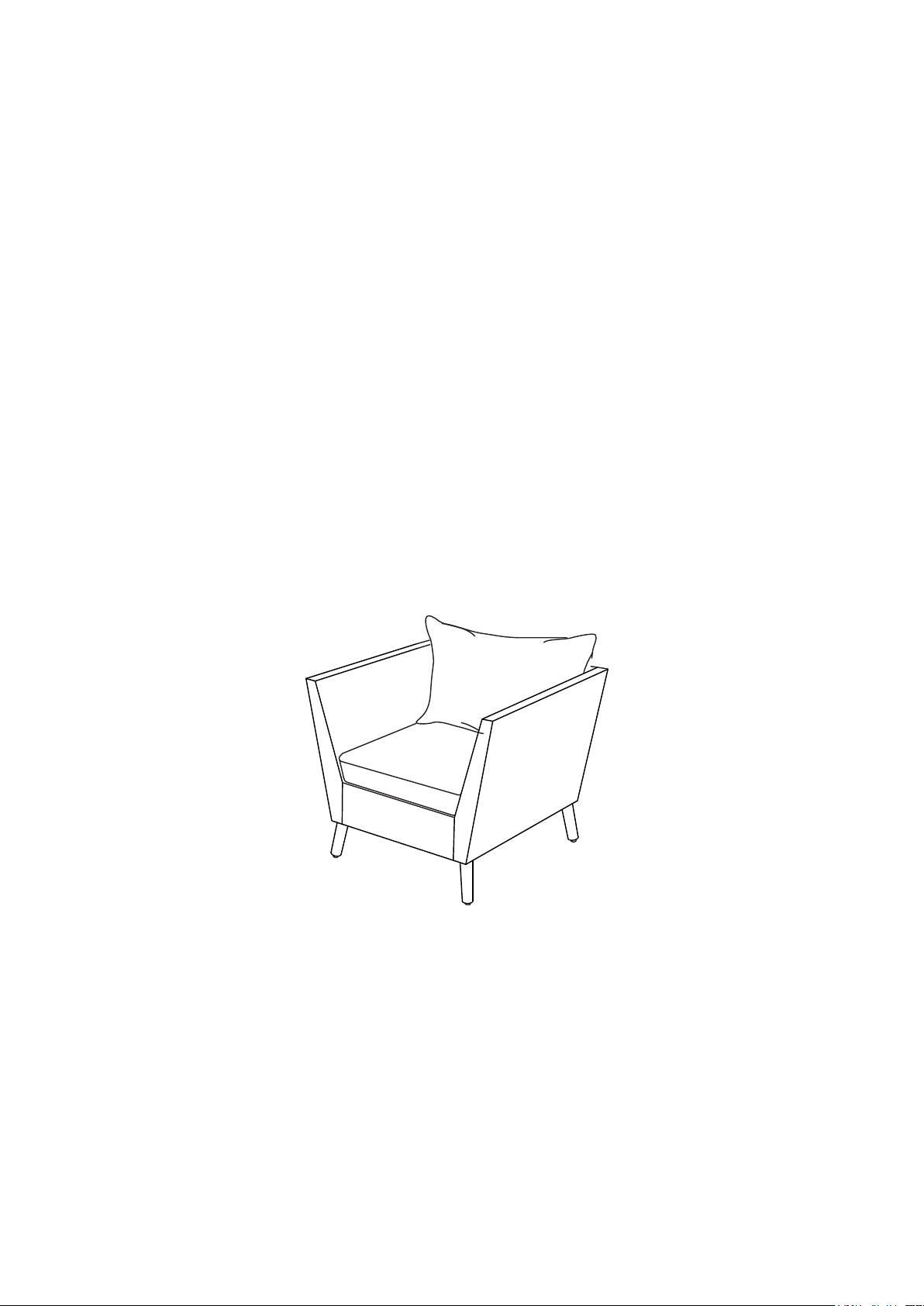

Outdoor Wicker Arm Chair
Page 2
PART LIST
A
Right Arm Panel
2 PCS
F
Seat Cushion
2 PCS
B
Left Arm Panel
2 PCS
G
Back Cushion
2 PCS
C D
Seat Panel
2 PCS
Back Panel
2 PCS
E
Leg
8 PCS
HARDWARE LIST
#1
M6*15mm
Short Bolt
24 PCS (Extra 1)
#2 #3 #4
M6*30mm
Long Bolt
14 PCS (Extra 1)
M6mm
Flat Washer
38 PCS (Extra 1)
M6mm
Allen Wrench
1 PC
2
Page 3
Step 1. Lay right arm panel (part A) upside down on a soft flat surface, such as carpet, as shown below.
Attach back panel (part D) to right arm panel (part A) using long bolt (part #2), flat washer
(part #3) and allen wrench (part #4).
NOTE: Please do not fully tighten bolts until unit is fully assembled.
#4
D
A
#2
#3
#2
#3
#4
Step 2. Attach seat panel (part C) to right arm panel (part A) and back panel (part D) using long
bolts (part #2), flat washers (part #3) and allen wrench (part #4).
NOTE: Please do not fully tighten bolts until unit is fully assembled.
#4
x1
x1
x1
D
#2
C
#3
A
#2
#3
#4
3
x3
x3
x1
Page 4
Step 3. Attach left arm panel (part B) to back panel (part D) and seat panel (part C) using long
bolts (part #2), flat washers (part #3) and allen wrench (part #4).
NOTE: Please do not fully tighten bolts until unit is fully assembled.
B
D
C
#4
#2
#3
#4
Step 4. Carefully turn assembled unit upside down. Attach legs (part E) to assembled unit
(parts A, B & D) using short bolts (part #1), flat washers (part #3) and allen wrench (part #4).
#3
#2
x3
x3
x1
NOTE: Please fully tighten all bolts at this time.
E
E
B
E
E
C
D
A
#1
#3
#4
#1
#3
x12
x12
#4
4
x1
Page 5

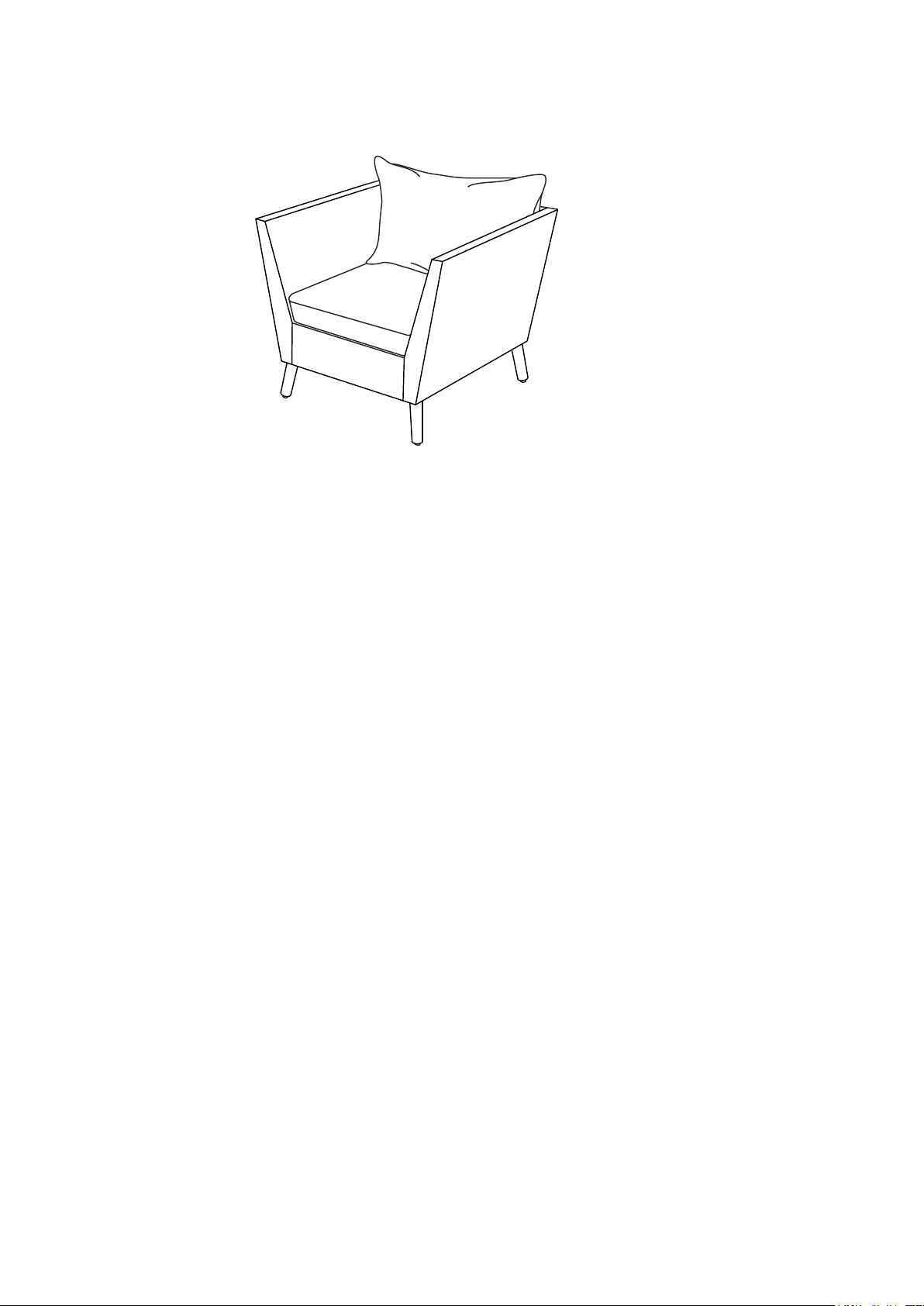

Step 5. Carefully turn unit upright. Add seat cushion (part F) and back cushion (part G) as shown below.
Repeat steps 1-5 to assemble remaining chair.
G
F
5
