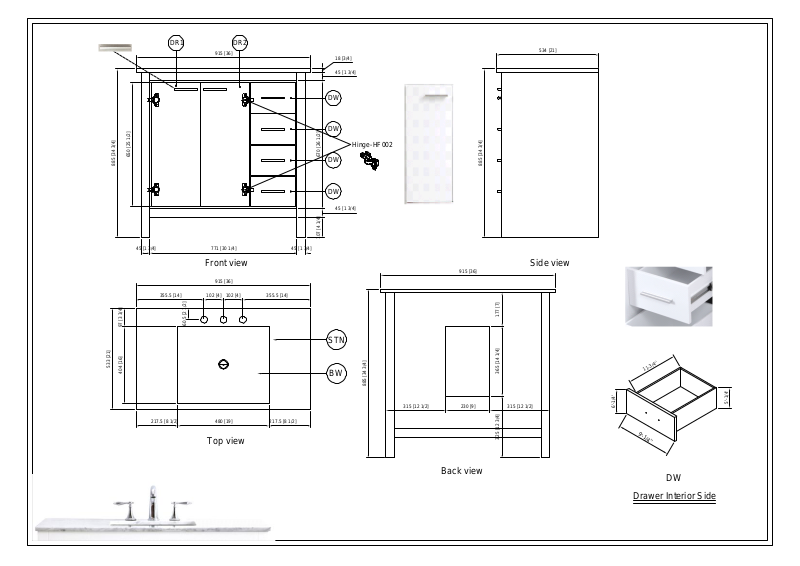

Page 1
DR1 DR2
915 [36]
650 [25 1/2]
885 [34 3/4]
45 [1 3/4] 771 [30 1/4] 45 [1 3/4]
Front view Side view
915 [36]
102 [4]102 [4]
18 [3/4]
45 [1 3/4]
534 [21]
DW
DW
Hinge-HF002
670 [26 1/2]
DW
885 [34 3/4]
DW
45 [1 3/4]
107 [4 1/4]
915 [36]
355.5 [14]355.5 [14]
97 [3 3/4]404 [16]
60.5 [2 1/2]
177 [7]325 [12 3/4]
STN
533 [21]
BW
885 [34 3/4]
315 [12 1/2] 315 [12 1/2]
480 [19]217.5 [8 1/2] 217.5 [8 1/2]
230 [9]
365 [14 1/4]
6'-1/4'
11-3/4''
5'-1/4'
9'-1/4''
Top view
Back view
DW
Drawer Interior Side
Page 2
Picture Description
255 [10]
QTY
Diagram Number
Left Door
650 [25 1/2]
255 [10]
(White)
Right Door
(White)
Drawer
(White)
6'-1/4'
650 [25 1/2]
11-3/4''
5'-1/4'
9'-1/4''
243.5 [9 1/2]
Shelf
400 [15 3/4]
175 [7]
490 [19 1/4]
(White)
1 DR1
1
4
1
SHELF
DR2
DW
0.51''
X12
6''
13.8
915 [36]
102 [4]102 [4]
355.5 [14]355.5 [14]
3/4]
97 [3
533 [21]
404 [16]
60.5 [2 1/2]
0.36'''
X8
0.98''
(x4)
0.63''
(x8)
STN
BW
Hinge(set of 2)
Screws(set of 12)
0.51"(13mm)
(Nickel)
Drawer Slide(set of 2)
Screws(set of 8)
0.39"(10mm)
(Zinc)
Konb(set of 6)
(Aluminum)
Door Knob Screw(4)
M4*0.98''(25mm)
Drawers Knob Screw(8)
M4*0.63''(16mm)
Countertop & Sink
carrara white marble
2
4
1
1
Hinge-HF002
Slide-HF001
KB115
TP-VF12836CRA
217.5 [8 1/2] 217.5 [8 1/2]
480 [19]
