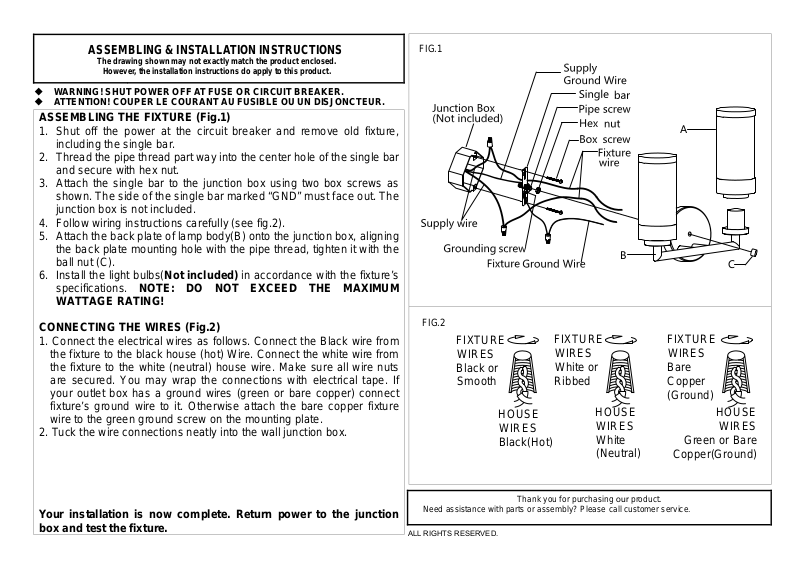

ASSEMBLING & INSTALLATION INSTRUCTIONS
The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJ ON CTEUR.
ASSEMBLING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker and remove old fixture,
2. Thread the pipe thread part way into the center hole of the single bar
3. Attach the single bar to the junction box using two box screws as
4. Follow wiring instructions carefully (see fig.2).
5. Attach the back plate of lamp body(B) onto the junction box, aligning
6. Install the light bulbs(Not included) in accordance with the fixture’s
CONNECTING THE WIRES (Fig.2)
1. Connect the electrical wires as follows. Connect the Black wire from
2. Tuck the wire connections neatly into the wall junction box.
Your installation is now complete. Return power to the junction
box and test the fixture.
including the single bar.
and secure with hex nut.
shown. The side of the single bar marked “GND” must face out. The
junction box is not included.
the back plate mounting hole with the pipe thread, tighten it with the
ball nut (C).
specifications. NOTE: DO NOT EXCEED THE MAXIMUM
WATTAGE RATING!
the fixture to the black house (hot) Wire. Connect the white wire from
the fixture to the white (neutral) house wire. Make sure all wire nuts
are secured. You may wrap the connections with electrical tape. If
your outlet box has a ground wires (green or bare copper) connect
fixture’s ground wire to it. Otherwise attach the bare copper fixture
wire to the green ground screw on the mounting plate.
FIG.1
A
B
FIG.2
FIXTURE
WIRES
Black or
Smooth
FIXTURE
WIRES
White or
Ribbed
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Black(Hot)
Thank you for purchasing our product.
Need assistance with parts or assembly? Please call customer service.
ALL RIGHTS RESERVED.
HOUSE
WIRES
White
(Neutral)
Green or Bare
Copper(Ground)
HOUSE
WIRES
C
