Page 1
7. Place the table panel above the
side cabinet and the plate. Line up
the holes on the plates with those at
the bottom of the table panel. Take
out the screws and washers from the
bag. Attach the washers to the screws
and then fix the side cabinet and
plate to the table panel by tightening
the screws. (Tip: You can line up all
the holes on the table panel with
those on the plates and put the
screws in and tighten them slightly at
first. If some of the holes don’t line
up well, you can loosen the screws
and realign the holes. After all the
screws are put in and all the holes are
aligned well, you can fully tighten the
screws.)
9. Push the drawers into the cabinet.
Place the wrist pad upon the tabletop. And clamp the LED lamp to the
table. Then the manicure table is
ready for use.
8. To make sure that the side
container can be attached to the
plate holes securely, the back of the
container (the side that is close to
the panel after installation) should
be parallel to the ground when you
try to install it. (Please refer to the
picture.)

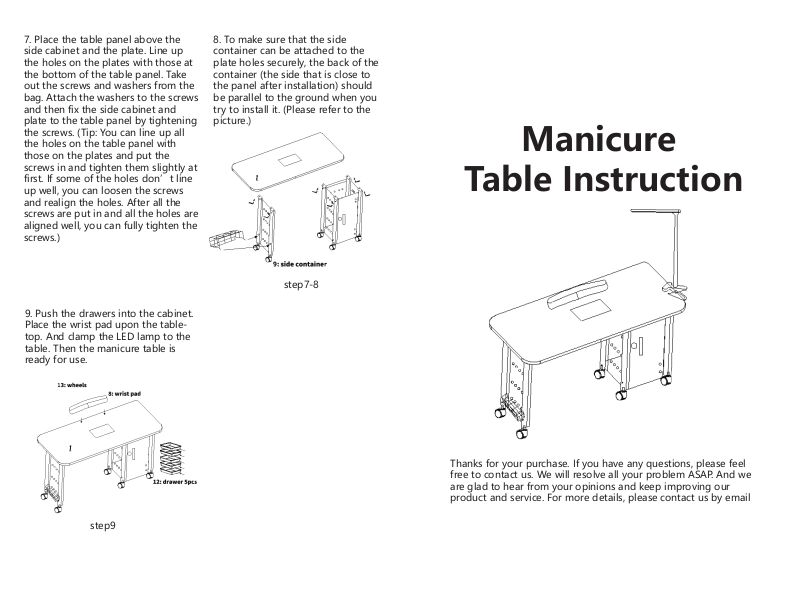

Manicure
Table Instruction
step7-8
step9
Thanks for your purchase. If you have any questions, please feel
free to contact us. We will resolve all your problem ASAP. And we
are glad to hear from your opinions and keep improving our
product and service. For more details, please contact us by email
Page 2
◆ PARTS INVENTORY:
3. Loosen the screws on the cabinet
door. Line up the holes on the door
with the hinge on the plate. Put the
screws in and tighten them.
step3
4. Attach the washer to the wheel
bolt. And then fasten the wheel bolt
to the hole at the cabinet bottom by
turning it clockwise. To tighten the
wheel, you can use the tiny wrench
provided or your own wrench that
may fit. And your hands may work as
well. You can turn the wheel with
your hands at first and then turn it
more tightly it with the wrench.
Other wheels can be installed in the
same way.
◆ ASSEMBLY ILLUSTRATION:
1.Take the screws out of the plate
with a screwdriver. Line up the holes
on the plates. Put the screws in and
then tighten them.
step1
2. Twist out the screws on the
supporting rods with a screwdriver.
Align the holes on the supporting
rods to those on the plates. Put the
screws in and retighten them.
step2
5. Install the wheels to the plate in
the same way mentioned above.
step5 step6
step4
6. Put the fan cleaner into the
opening on the tabletop. Align the
holes on the fan cleaner to those at
the bottom of the table panel. Lay
the screws into the holes and secure
them with a screwdriver.
