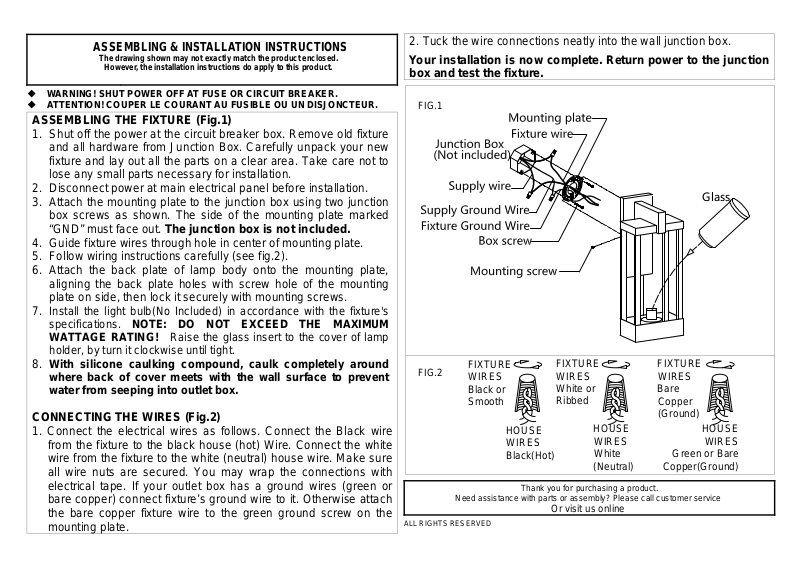

ASSEMBLING & INSTALLATION INSTRUCTIONS
The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJ ON CTEUR.
ASSEMBLING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker box. Remove old fixture
and all hardware from Junction Box. Carefully unpack your new
fixture and lay out all the parts on a clear area. Take care not to
lose any small parts necessary for installation.
2. Disconnect power at main electrical panel before installation.
3. Attach the mounting plate to the junction box using two junction
box screws as shown. The side of the mounting plate marked
“GND” must face out. The junction box is not included.
4. Guide fixture wires through hole in center of mounting plate.
5. Follow wiring instructions carefully (see fig.2).
6. Attach the back plate of lamp body onto the mounting plate,
aligning the back plate holes with screw hole of the mounting
plate on side, then lock it securely with mounting screws.
7.
Install the light bulb(No Included) in accordance with the fixture's
specifications. NOTE: DO NOT EXCEED THE MAXIMUM
WATTAGE RATING! Raise the glass insert to the cover of lamp
holder, by turn it clockwise until tight.
8.
With silicone caulking compound, caulk completely around
where back of cover meets with the wall surface to prevent
water from seeping into outlet box.
CONNECTING THE WIRES (Fig.2)
1. Connect the electrical wires as follows. Connect the Black wire
from the fixture to the black house (hot) Wire. Connect the white
wire from the fixture to the white (neutral) house wire. Make sure
all wire nuts are secured. You may wrap the connections with
electrical tape. If your outlet box has a ground wires (green or
bare copper) connect fixture’s ground wire to it. Otherwise attach
the bare copper fixture wire to the green ground screw on the
mounting plate.
2. Tuck the wire connections neatly into the wall junction box.
Your installation is now complete. Return power to the junction
box and test the fixture.
FIG.1
Glass
FIG.2
WIRES
Black or
Smooth
Need assistance with parts or assembly? Please call customer service
ALL RIGHTS RESERVED
FIXTURE
FIXTURE
WIRES
White or
Ribbed
HOUSE
WIRES
Black(Hot)
HOUSE
WIRES
White
(Neutral)
Thank you for purchasing a product.
Or visit us online
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Green or Bare
Copper(Ground)
