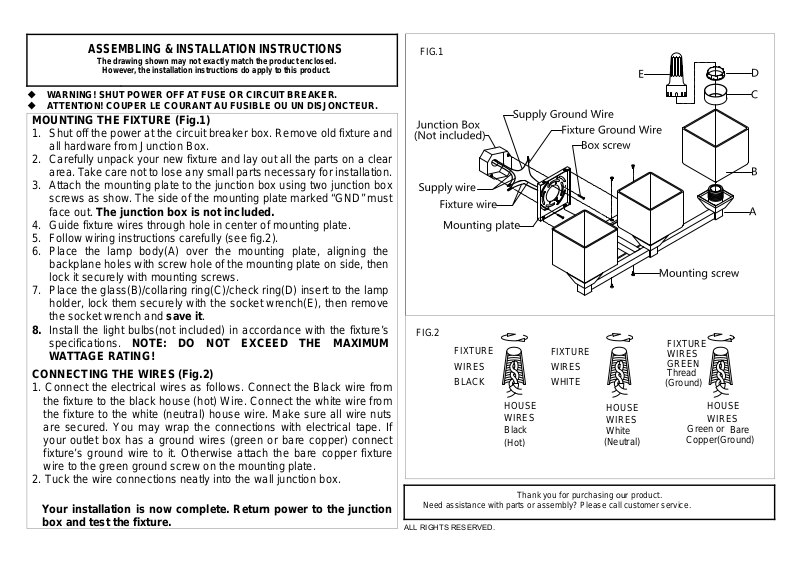

ASSEMBLING & INSTALLATION INSTRUCTIONS
(
)
(
)
The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJ ON CTEUR.
MOUNTING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker box. Remove old fixture and
2. Carefully unpack your new fixture and lay out all the parts on a clear
3. Attach the mounting plate to the junction box using two junction box
4. Guide fixture wires through hole in center of mounting plate.
5. Follow wiring instructions carefully (see fig.2).
6. Place the lamp body(A) over the mounting plate, aligning the
7. Place the glass(B)/collaring ring(C)/check ring(D) insert to the lamp
8. Install the light bulbs(not included) in accordance with the fixture’s
CONNECTING THE WIRES (Fig.2)
1. Connect the electrical wires as follows. Connect the Black wire from
the fixture to the black house (hot) Wire. Connect the white wire from
the fixture to the white (neutral) house wire. Make sure all wire nuts
are secured. You may wrap the connections with electrical tape. If
your outlet box has a ground wires (green or bare copper) connect
fixture’s ground wire to it. Otherwise attach the bare copper fixture
wire to the green ground screw on the mounting plate.
2. Tuck the wire connections neatly into the wall junction box.
Your installation is now complete. Return power to the junction
box and test the fixture.
all hardware from Junction Box.
area. Take care not to lose any small parts necessary for inst allation.
screws as show . The side of the mounting plate marked “GND” must
face out. The junction box is not included.
backplane holes with screw hole of the mounting plate on side, then
lock it securely with mounting screws.
holder, lock them securely with the socket wrench(E), then remove
the socket wrench and save it.
specifications. NOTE: DO NOT EXCEED THE MAXIMUM
WATTAGE RATING!
FIG.1
FIG.2
FIXTURE
WIRES
BLACK
HOUSE
WIRES
Black
Hot
FIXTURE
WIRES
WHITE
HOUSE
WIRES
White
Neutral
FIXTURE
WIRES
GREEN
Thread
(Ground)
HOUSE
WIRES
Green or
Copper(Ground)
Thank you for purchasing our product.
Need assistance with parts or assembly? Please call customer service.
ALL RIGHTS RESERVED.
