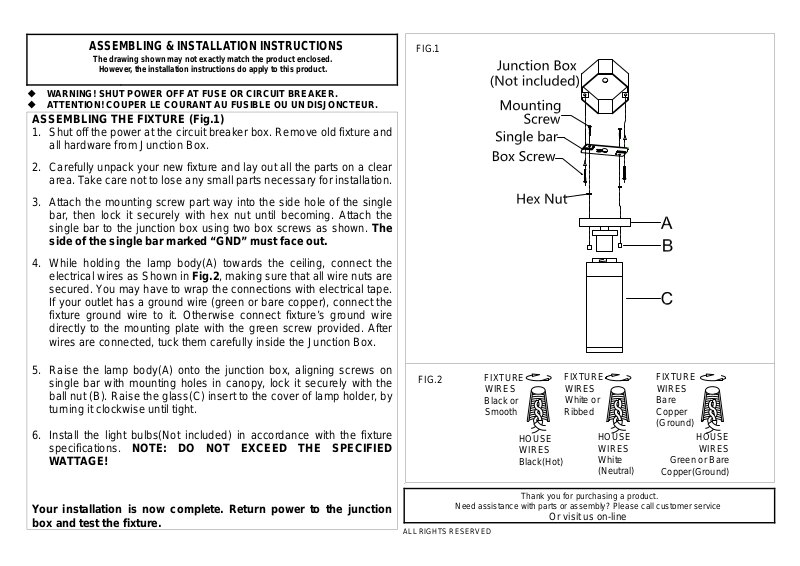

ASSEMBLING & INSTALLATION INSTRUCTIONS
The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJ ON CTEUR.
ASSEMBLING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker box. Remove old fixture and
2. Carefully unpack your new fixture and lay out all the parts on a clear
3. Attach the mounting screw part way into the side hole of the single
4. While holding the lamp body(A) towards the ceiling, connect the
5. Raise the lamp body(A) onto the junction box, aligning screws on
6. Install the light bulbs(Not included) in accordance with the fixture
Your installation is now complete. Return power to the junction
box and test the fixture.
all hardware from Junction Box.
area. Take care not to lose any small parts necessary for inst allation.
bar, then lock it securely with hex nut until becoming. Attach the
single bar to the junction box using two box screws as shown. The
side of the single bar marked “GND” must face out.
electrical wires as Shown in Fig.2, making sure that all wire nuts are
secured. You may have to wrap the connections with electrical tape.
If your outlet has a ground wire (green or bare copper), connect the
fixture ground wire to it. Otherwise connect fixture’s ground wire
directly to the mounting plate with the green screw provided. After
wires are connected, tuck them carefully inside the Junction Box.
single bar with mounting holes in canopy, lock it securely with the
ball nut (B). Raise the glass(C) insert to the cover of lamp holder, by
turning it clockwise until tight.
specifications. NOTE: DO NOT EXCEED THE SPECIFIED
WATTAGE!
FIG.1
FIG.2
`
Need assistance with parts or assembly? Please call customer service
ALL RIGHTS RESERVED
FIXTURE
WIRES
Black or
Smooth
FIXTURE
WIRES
White or
Ribbed
HOUSE
WIRES
Black(Hot)
Thank you for purchasing a product.
HOUSE
WIRES
White
(Neutral)
Or visit us on-line
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Green or Bare
Copper(Ground)
