Label Picture Description QTY
A Chair Back 1
B Front Leg 1
C Side Stretcher (R) 1
Assembly Instructions
Caution : You must read this before you proceed
DINING CHAIR
Part List
WARNING: These chairs are intended only for normal use with all four chair
legs on the ground. These consumer chairs have relatively thin legs and are
not designed to be sat in with only two chair legs on the ground (as from
tipping back, forward, or to the side), and such can cause stress and failure
of one or more chair legs. Any misuse of the chairs voids any warranties,
express or implied.
Page 1 of 7

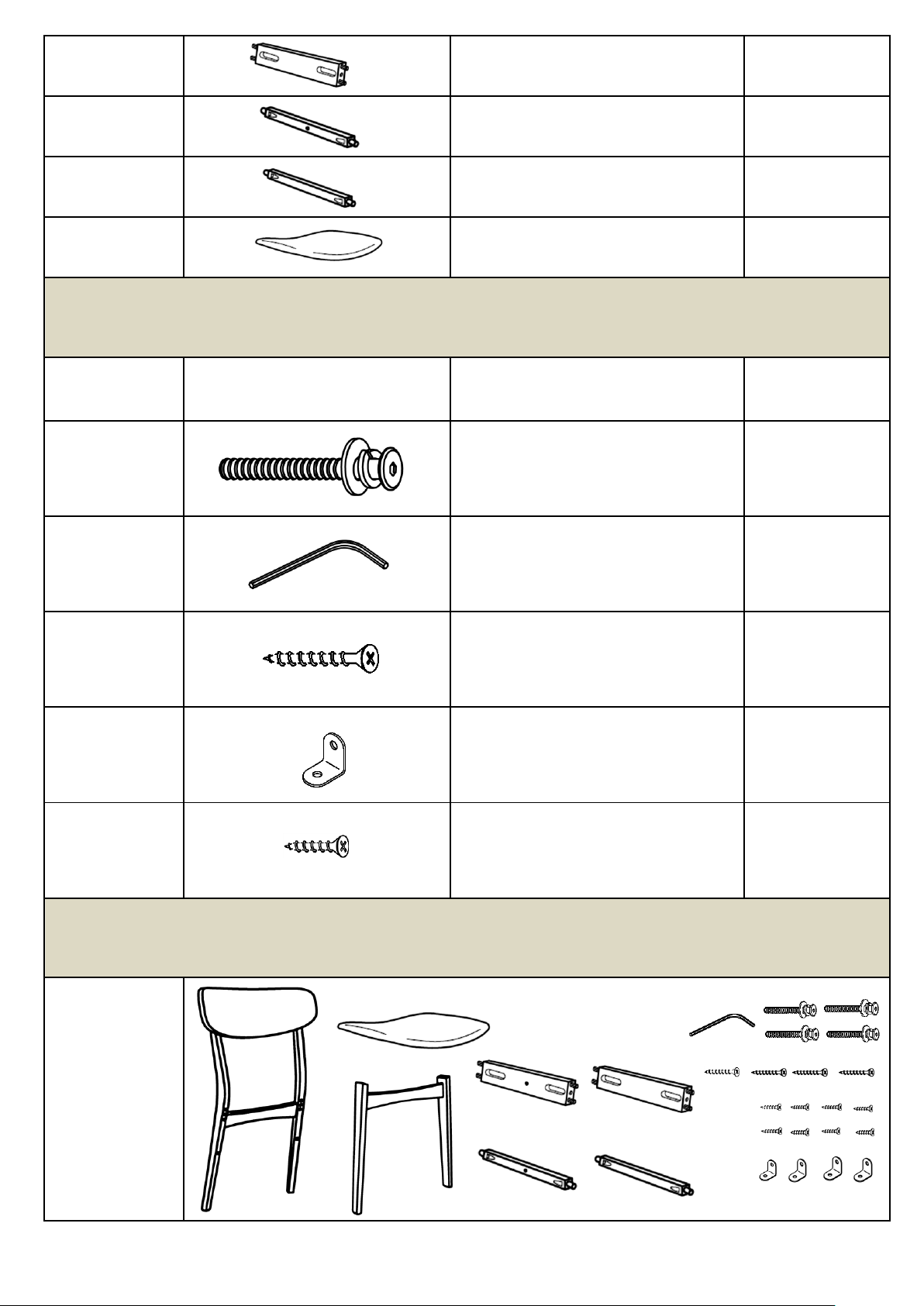

D Side Stretcher (L) 1
E Side Rail (R) 1
F Side Rail (L) 1
G Cushion Seat 1
Label Picture Description QTY
①
JCBC M6 x 50mm
+ S/W M6
+ F/W M6 x 13mm
4
② Allen Key M4 1
③ FH Screw #8 x 32mm 4
④ L Bracket 4
⑤ CSK Screw M3.5 x 12mm 8

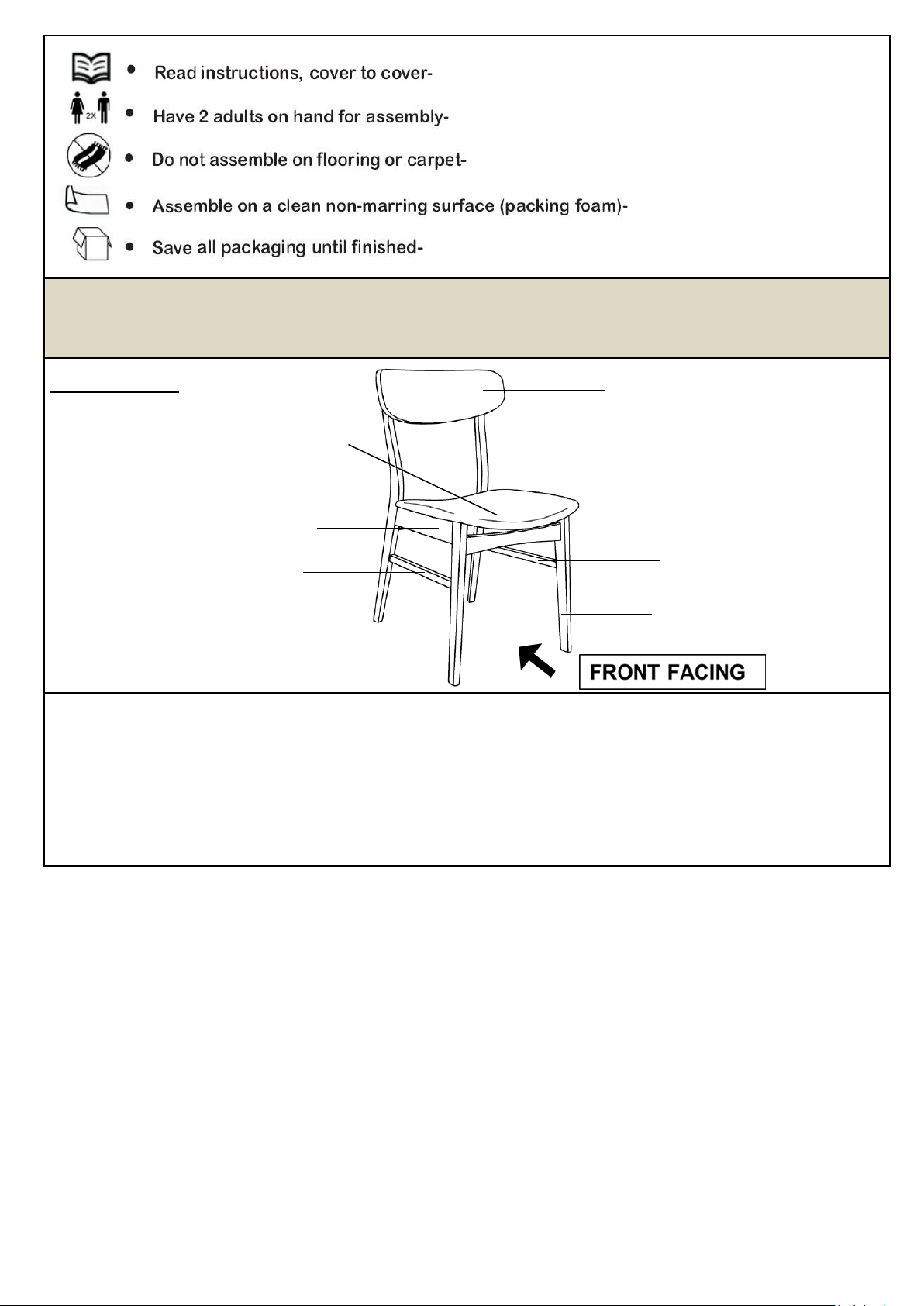

Before
Beginning
Assembly:
Hardware
Assembly Preparation
Page 2 of 7
Overview
This Dining Chair has multiple parts and may require up to some 30 minutes
to assemble. To give you an overview of the Dining Chair parts, the above
picture is to help you put the various parts into perspective. Please read
through the instructions below to familiarise yourself with the parts and
steps before assembly.
Assembly Steps
Back Frame (A)
Front Leg (B)
Side Stretcher (C)
Side Rail (F)
Side Rail (E)
Cushion Seat (G)
Page 3 of 7
Step 1
Step 2
(1.1) Place the Side Stretcher (C) and Side Stretcher (D) on the Back Frame
(A) as shown. Side Stretcher (C) has a small hole for identification.
(1.2) Then, fix the Side Stretcher (C) and (D) with JCBC Bolt ① + Spring
Washer + Flat Washer using Allen Key ②.
DO NOT FULLY TIGHTEN THE BOLT AND SCREWS.
(2.1 )Place the Side Rail (E) and Side Rail (F) on the Back Frame to. Side
Rail (E) has a small hole for identification.
(2.2) Then fix the Side Rail (E) and (F) with Screw ③ using Screwdriver (not
provided).
DO NOT FULLY TIGHTEN THE BOLT AND SCREWS.
(E) has a small hole for
identification.
(C) has a small hole for
identification.
(1.1)
(1.2)
(2.1)
(2.2)
Page 4 of 7

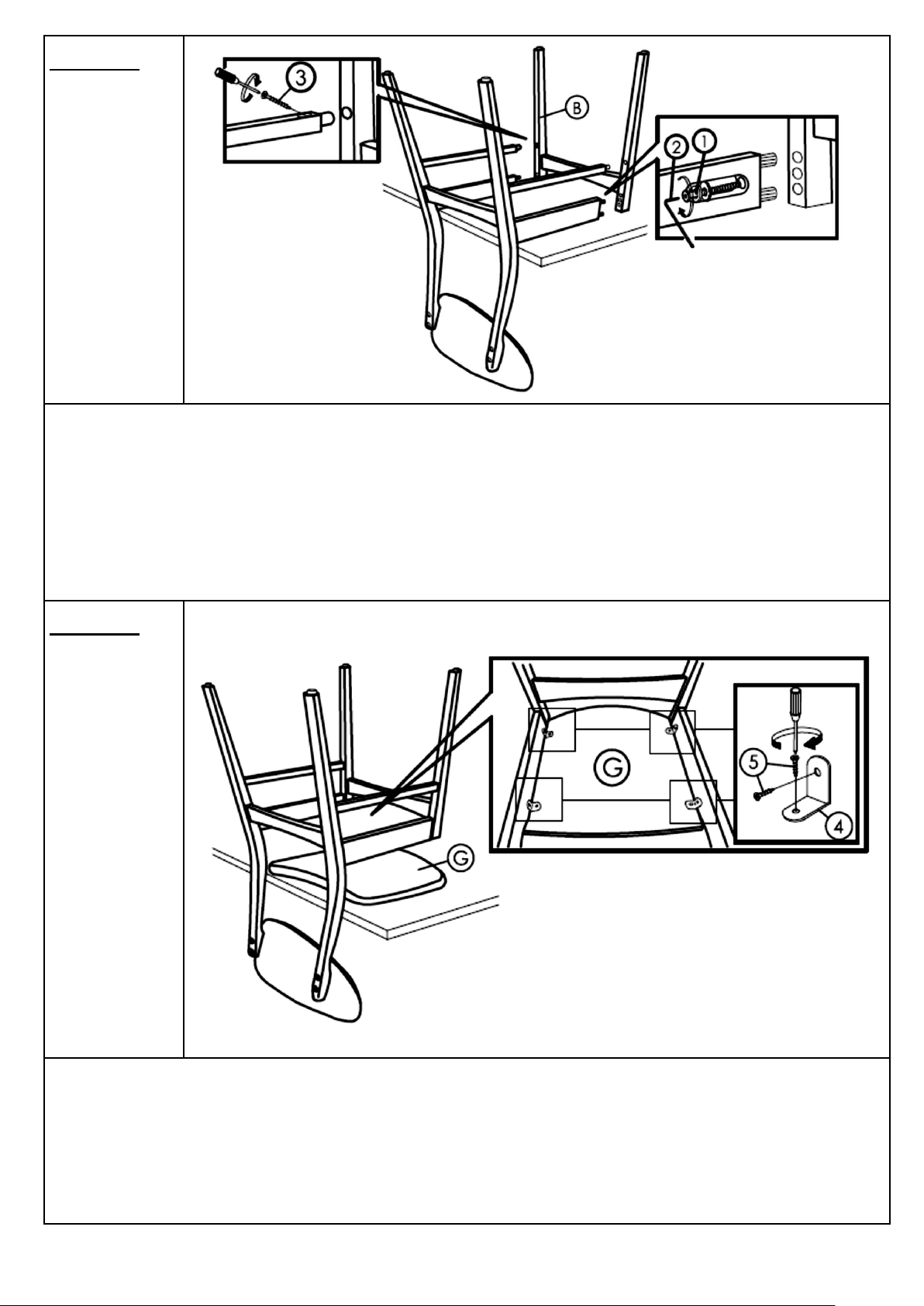

Step 3
Step 4
Place the Front Leg (B) on the Side Stretcher and Side Rail as shown.
Then,(3.1) fix the Front Leg (B) on the Side Stretcher with JCBC Bolt ① +
Spring Washer + Flat Washer using Allen Key ②.
Then,(3.2) fix the Front Leg (B) on the Side Rail with Screw ③ using
Screwdriver (not provided).
DO NOT FULLY TIGHTEN THE BOLT AND SCREWS.
Place the Cushion Seat (G) on the table and put the chair on it as shown.
Then, fix the Cushion Seat (G) with L-Bracket ④ and Screw ③ using
Screwdriver (not provided).
DO NOT FULLY TIGHTEN THE BOLT AND SCREWS.
(3.1)
(3.2)
Page 5 of 7

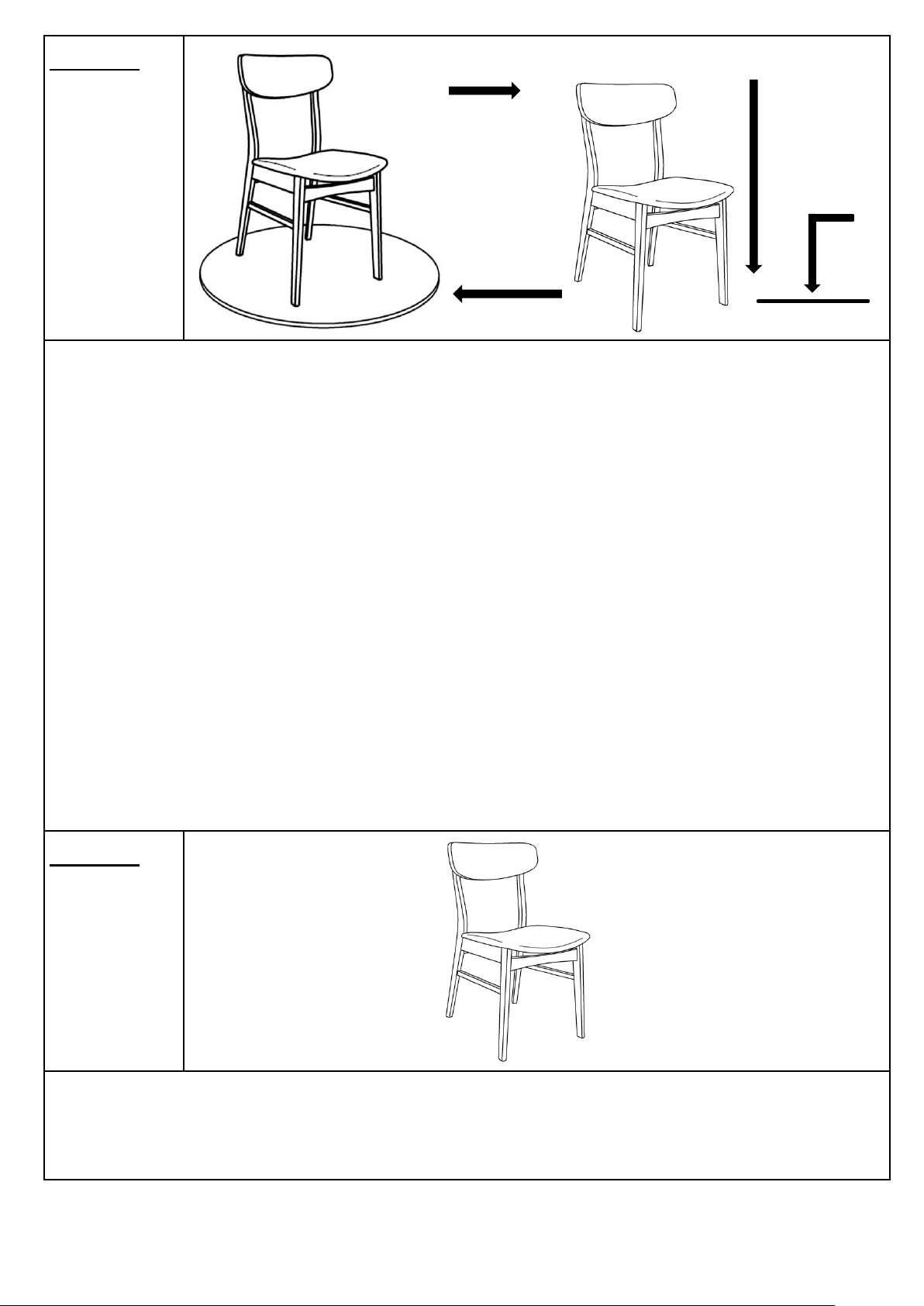

Step 5
Step 6
Inspect and make sure all parts are connected.
The dinning chair is ready for use.
Caution: This dining chair can only be used on a flat, level surface.
Place the dining chair on a Level Surface to check if it wobbles.
If it wobbles, lift the dining chair some 30cm to 50cm high from the ground,
keep your feet and toes well away from the drop zone, and drop the dining
chair freely and vertically with the four legs, hitting the ground at the same
time.
This Drop Test will help to ensure that all the bolts and gaps to all reach full
alignment.
Test again for evenness on Level Surface.
If no wobbles are found, proceed to tighten all the Bolts.
Caution: When tightening the Bolts, tighten sequentially.
Do not tighten any screw fully and then towards the next one,this would
cause the frame to warp. If it still wobbles, loosen the bolts and execute this
same drop test.
If the dining chair is not Stable it could lead to damage to the product.
① If wobble
③ Test again
②
30-50mm
Page 6 of 7
Page 7 of 7
