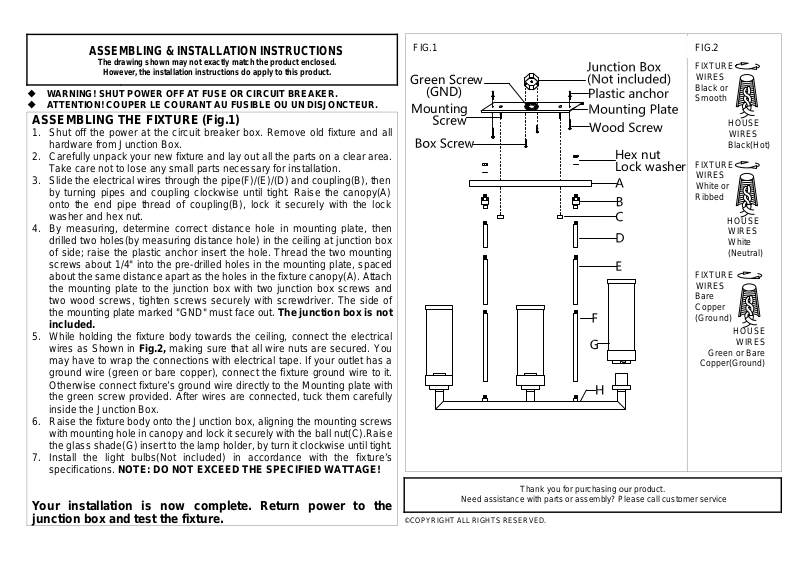

ASSEMBLING & INSTALLATION INSTRUCTIONS
The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJ ON CTEUR.
ASSEMBLING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker box. Remove old fixture and all
hardware from Junction Box.
2. Carefully unpack your new fixture and lay out all the parts on a clear area.
Take care not to lose any small parts necessary for installation.
3. Slide the electrical wires through the pipe(F)/(E)/(D) and coupling(B), then
by turning pipes and coupling clockwise until tight. Raise the canopy(A)
onto the end pipe thread of coupling(B), lock it securely with the lock
washer and hex nut.
4. By measuring, determine correct distance hole in mounting plate, then
drilled two holes(by measuring distance hole) in the ceiling at junction box
of side; raise the plastic anchor insert the hole. Thread the two mounting
screws about 1/4" into the pre-drilled holes in the mounting plate, spaced
about the same distance apart as the holes in the fixture canopy(A). Attach
the mounting plate to the junction box with two junction box screws and
two wood screws, tighten screws securely with screwdriver. The side of
the mounting plate marked "GND" must face out. The junction box is not
included.
5. While holding the fixture body towards the ceiling, connect the electrical
wires as Shown in Fig.2, making sure that all wire nuts are secured. You
may have to wrap the connections with electrical tape. If your outlet has a
ground wire (green or bare copper), connect the fixture ground wire to it.
Otherwise connect fixture’s ground wire directly to the Mounting plate with
the green screw provided. After wires are connected, tuck them carefully
inside the Junction Box.
6. Raise the fixture body onto the Junction box, aligning the mounting screws
with mounting hole in canopy and lock it securely with the ball nut(C).Raise
the glass shade(G) insert to the lamp holder, by turn it clockwise until tight.
7. Install the light bulbs(Not included) in accordance with the fixture’s
specifications. NOTE: DO NOT EXCEED THE SPECIFIED WATTAGE!
Your installation is now complete. Return power to the
junction box and test the fixture.
FIG.2 FIG.1
FIXTURE
GreenScrew
(GND)
Mounting
D
N
G
WIRES
Black or
Smooth
HOUSE
WIRES
Black(Hot)
Hexnut
Lockwasher
Thank you for purchasing our product.
Need assistance with parts or assembly? Please call customer service
©COPYRIGHT ALL RIGHTS RESERVED.
FIXTURE
WIRES
White or
Ribbed
HOUSE
WIRES
White
(Neutral)
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Green or Bare
Copper(Ground)
