Wade Logan W000120170 Assembling & Installation Instructions

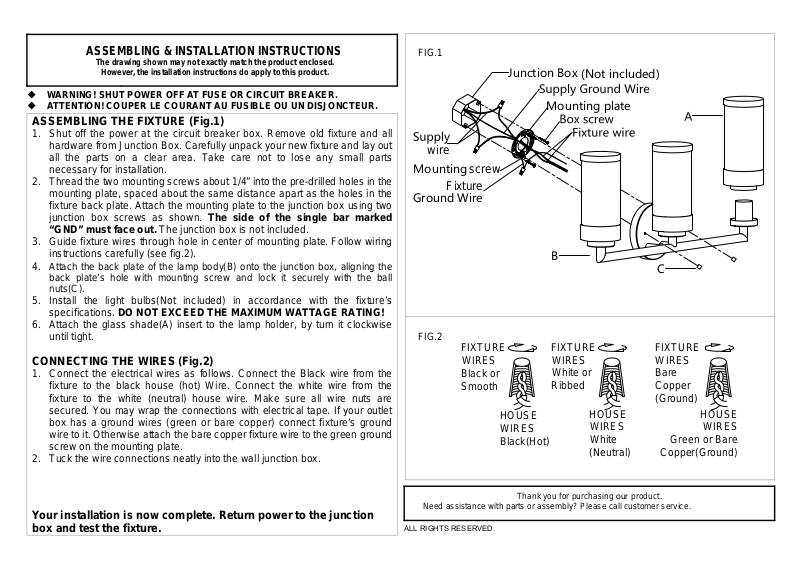

ASSEMBLING & INSTALLATION INSTRUCTIONS

The drawing shown may not exactly match the product enclosed.

However, the installation instructions do apply to this product.

 WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
 ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJ ON CTEUR.

ASSEMBLING THE FIXTURE (Fig.1)

1. Shut off the power at the circuit breaker box. Remove old fixture and all

2. Thread the two mounting screws about 1/4” into the pre-drilled holes in the

3. Guide fixture wires through hole in center of mounting plate. Follow wiring

4.

5. Install the light bulbs(Not included) in accordance with the fixture’s

6. Attach the glass shade(A) insert to the lamp holder, by turn it clockwise

CONNECTING THE WIRES (Fig.2)

1. Connect the electrical wires as follows. Connect the Black wire from the

2. Tuck the wire connections neatly into the wall junction box.

Your installation is now complete. Return power to the junction
box and test the fixture.

hardware from Junction Box. Carefully unpack your new fixture and lay out
all the parts on a clear area. Take care not to lose any small parts
necessary for installation.

mounting plate, spaced about the same distance apart as the holes in the
fixture back plate. Attach the mounting plate to the junction box using two
junction box screws as shown. The side of the single bar marked
“GND” must face out. The junction box is not included.

instructions carefully (see fig.2).

Attach the back plate of the lamp body(B) onto the junction box, aligning the
back plate’s hole with mounting screw and lock it securely with the ball
nuts(C).

specifications. DO NOT EXCEED THE MAXIMUM WATTAGE RATING!
until tight.

fixture to the black house (hot) Wire. Connect the white wire from the
fixture to the white (neutral) house wire. Make sure all wire nuts are
secured. You may wrap the connections with electrical tape. If your outlet
box has a ground wires (green or bare copper) connect fixture’s ground
wire to it. Otherwise attach the bare copper fixture wire to the green ground
screw on the mounting plate.

FIG.1

JunctionBox

(Notincluded)

Mountingplate

wire

Mounting

screw

Fixture

GroundWire

B

C

FIG.2

FIXTURE

WIRES
Black or
Smooth

FIXTURE

WIRES
White or

Ribbed

FIXTURE

WIRES
Bare
Copper
(Ground)

HOUSE

WIRES

Black(Hot)

HOUSE

WIRES
White

(Neutral)

Green or Bare

Copper(Ground)

HOUSE

WIRES

Thank you for purchasing our product.

Need assistance with parts or assembly? Please call customer service.
