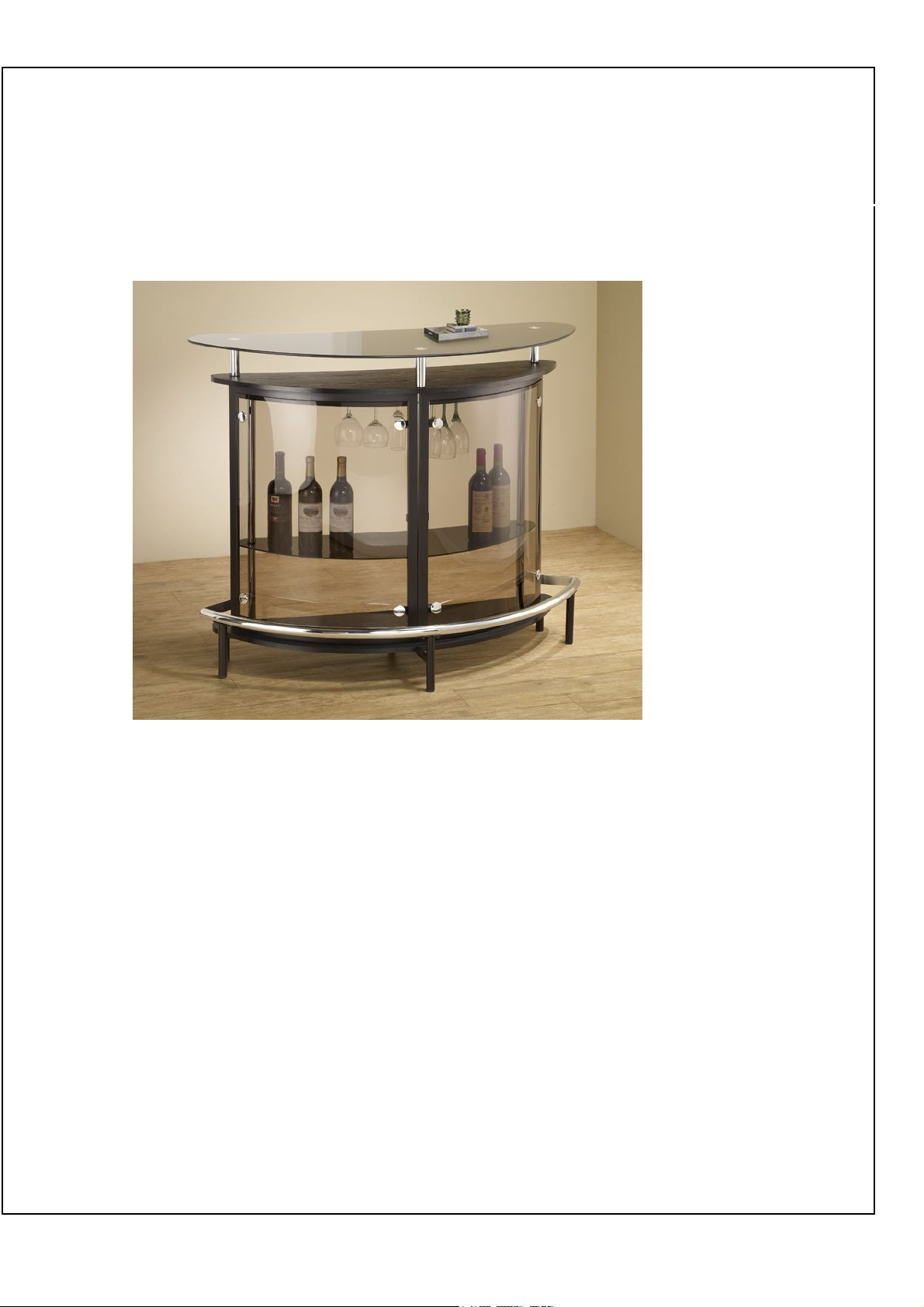

BAR TABLE
ASSEMBLY INSTRUCTION
page 1 of 7
ASSEMBLY INSTRUCION
A RIGHT FRONT 1PC
B LEFT FRONT 1PC
C BOTTOM 1PC
CROSS BAR
D HANGER BRACKET 3PCS
F LEG SUPPORT BAR 3PCS
G LARGE CROSS BAR 2PCS
H SHELF CROSS BAR 2PCS
I CONNECTION PIECE 1PC
J BOTTOM CENTER 1PC
SUPPORT
K BOTTOM SUPPORT BAR 2PCS
E
SHELF WOOD
3PCS
CROSS BAR
page 2 of 7
ASSEMBLY INSTRUCTION
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attaced instructions in the same sequence as numbered to assure fast & easy assembly.
Warning !
1. Don't attempt to repair or modify parts that are broken or defective. Please contact
the store immediately.
2. This product is for home use only and not intended for commerecial establishment.
PARTS IDENTIFICATION:
ASSEMBLY INSTRUCTION
z
FIGURE
Q'TY
L TOP GLASS 1PC
M SHELF GLASS 1PC
N SHELF WOOD 1PC
O BOTTOM WOOD 1PC
1
ALLEN BOLT
2
3
16PCS
3PCS
ALLEN BOLT
4
BOLT
2PCS
5
LARGE BOLT
10PCS
6
SCREW
9PCS
7
GLASS BOLT
1PC
8
ALLEN KEY
1PC
LARGE
MEDIUM
SMALL
ALLEN BOLT
3PCS
page 3 of 7
ASSEMBLY INSTRUCTION
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
Warning !
1. Don't attempt to repair or modify parts that are broken or defective. Please contact
the store immediately.
2. This product is for home use only and not intended for commerecial establishment.
PARTS IDENTIFICATION:
HARDWARE PACKAGE
DESCRIPTION
ASSEMBLY INSTRUCTION
page 4 of 7
ASSEMBLY INSTRUCTION
page 5 of 7
ASSEMBLY INSTRUCTION
page 6 of 7
ASSEMBLY INSTRCTION
STEP1:Connect Right Front(A)and Left Front(B)using Connection Piece(I)
and Bolt(4).
STEP2:Screw Right Front(A)and Left front(B)onto Shelf wood(N)using
Small allen bolt(3).
Screw Large bolt(5)onto Shelf wood(N), then screw Large cross bar(G)
onto it. Connect Shelf glass(M)with Large cross bar(G)using Large bolt(5)
and with(A)and(B)using Glass bolt(7),Screw Shelf cross bar(H)onto
Shelf glass(M),then connect Bottom wood(O)onto(A)and(B)and
Shelf cross bar(H)using Medium allen bolt(2).
STEP3:Screw Large bolt(5)onto Bottom wood(O),then screw Leg support bar(F)onto
Large bolt(5),screw Hanger bracket(D)onto Shelf wood(N)using Screw(6).
STEP4:Screw Bottom cross bar(C)onto(A)and(B)using Small allen bolt(3),
Screw Bottom support bar(K)onto Bottom cross bar(C)using Small allen bolt(3)
Be sure to tighten all screw and bolts and then set the bar table standing up.
STEP5:Attach Top glass(L)onto Shelf wood cross bar(E)using Large bolt(5),
Screw Shelf wood(O)with Shelf wood cross bar(E)using Large allen bolt(1)
Be sure to tighten all screws and bolts before use.
page 7 of 7
Screw Bottom center support(J)onto Bottom cross bar(C)using Medium allen bolt(2)
and Small allen bolt(3).
