Wade Logan VARK5065 Assembly Instructions

Download

Page 1

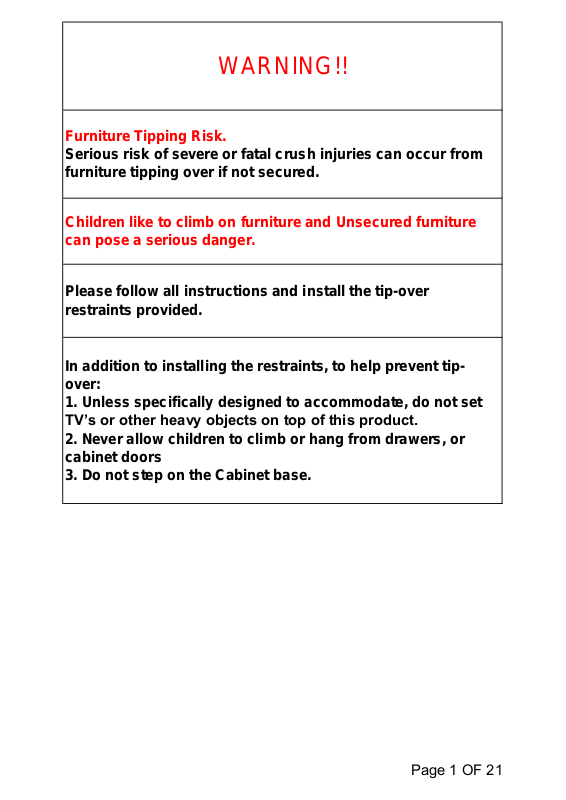

WARNING!!

Furniture Tipping Risk.

Serious risk of severe or fatal crush injuries can occur from furniture tipping over if not secured.

Children like to climb on furniture and Unsecured furniture can pose a serious danger.

Please follow all instructions and install the tip-over restraints provided.

In addition to installing the restraints, to help prevent tipover:

1. Unless specifically designed to accommodate, do not set

TV’s or other heavy objects on top of this product.

2. Never allow children to climb or hang from drawers, or cabinet doors

3. Do not step on the Cabinet base.

Page 1 OF 21

Page 2

Label Picture Description QTY

AL Drawer Left Side Rail 3

Drawer Right Side

Rail

Drawer Left Bottom

Rail

Drawer Right Bottom

Rail

C Top Panel 1

D Side Panel Left 1

Cabinet

Caution: You must read this before you proceed

Assembly Instructions

Part List

Page 2 OF 21

Page 3

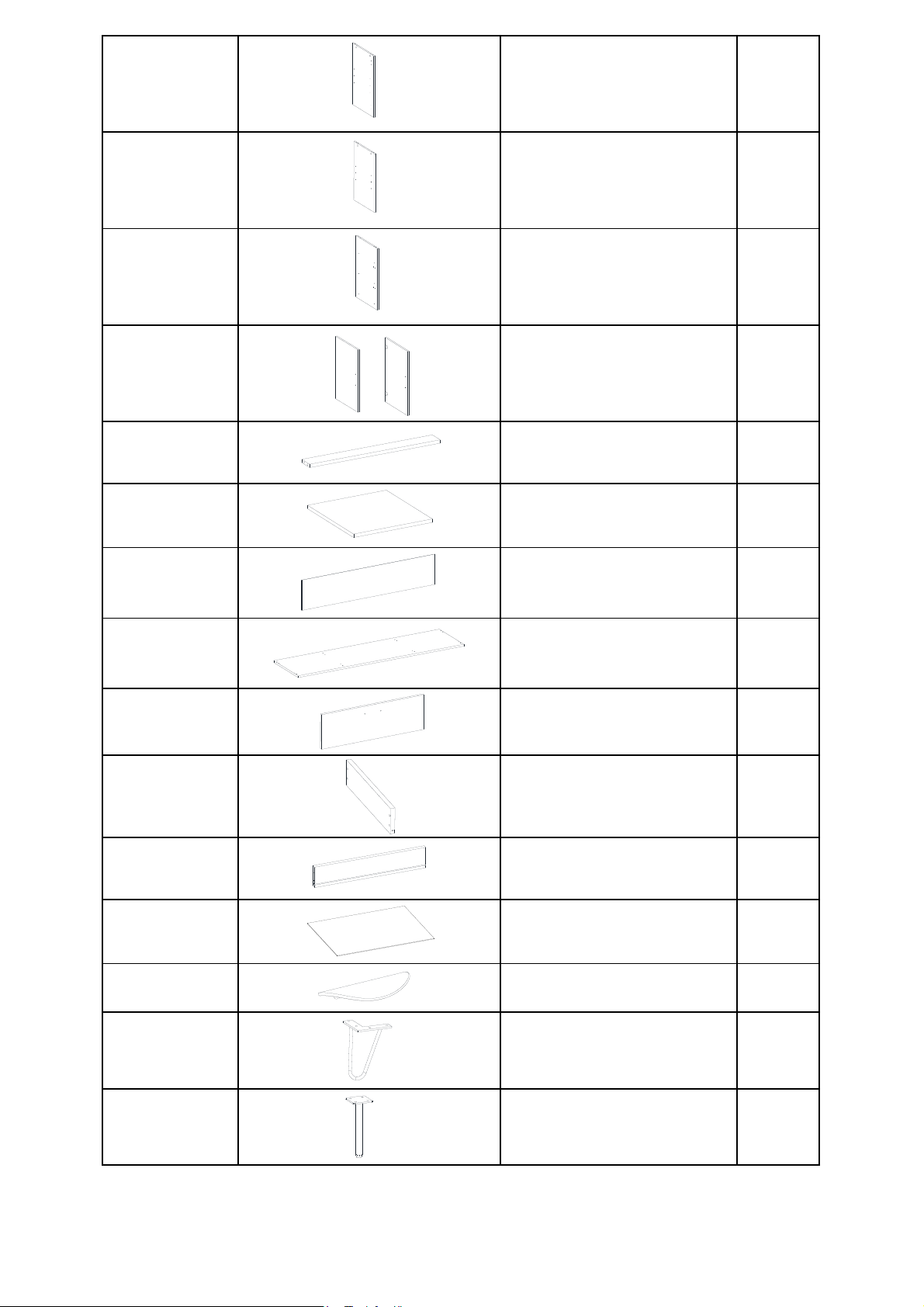

E Side Panel Right 1

F Center Panel Left 1

G Center Panel Right 1

H Door Panel 2

I Middle Panel 2

J Shelf Panel 2

K Back Panel 1

L Bottom Panel 1

M Drawer Front 3

N Drawer Side 6

O Drawer Back 3

P Drawer Bottom 3

Q Handle 5

R Leg 4

S Middle Leg 1

Page 3 OF 21

Page 4

Label Picture Description QTY

① Cam Lock 13

② Cam Bolt 13

③ Cam Cap 13

④

Positioning Dowel (Ø

8*30mm)

⑤

Cap Wood Screw

(M6*50mm)

⑥ Screw (M4*38mm) 25

⑦ Screw (M3.5*16mm) 73

⑧ Shelf Support 9

⑨ Allen Key 1

⑩ Nail 37

⑪ Hinge 4

⑫ Screw (M4*25mm) 11

⑬

Screwdriver (not

provided)

⑭

Hammer (not

provided)

⑮

Power Drill (not

provided)

Hardware

Page 4 OF 21

Page 5

⑯ Metal Bracket 4

⑰ Wall Plug 2

⑱ Wall Plug Screw 2

⑲ Pan Head Screw 2

⑳

Cabinet Restraint

Strap

Cabinet Restraint Device Hardware

Before

Beginning

Assembly:

Assembly Preparation

X 13

X 21

X 9

X 1

X 3

X 73

X 25

X 37

X 11

X 9

X 4

X 1

X 2

X 3

Page 5 OF 21

Page 6

Step 1

Overview

Unpack and place all parts on a clean, non-marring surface. Attach Cam Bolts(②) to mounting positions on Top Panel(C) with Screwdriver(⑬).

Assembly Steps

This Cabinet has multiple parts and may require up to 60 minutes to assemble. To give you an overview of the Cabinet parts, the above picture is to help you put the various parts into perspective. Please read through the instructions below to familiarise yourself with the parts and steps before assembly.

FRONT FACING

Top Panel (C)

Side Panel Right (E)

Center Panel Left (F)

Side Panel Left (D)

Bottom Panel (L)

Leg (R)

Door Panel (H)

Drawer Front (M)

Center Panel Right (G)

Door Panel (H)

Handle (Q)

Middle Leg (S)

②

⑬

②

②②②

②

Page 6 OF 22

Page 7

Step 2 Step 3

Step 4

Attach Cam Bolts(②) to mounting positions on Center Panel Left(F) with Screwdriver(⑬).

4.1) Attach Drawer Left Side Rails(AL) to Side Panel Left(F) using Screws(⑦) with Screwdriver(⑬) where indicated.

Note: There are pre-existing mounting positions on the Center Panel Left(F) to attach the Drawer Left Side Rails(AL). Tighten the Screws fully in a sequential manner.

2.1) Insert Cam Locks(①) into mounting positions on Side Panel Left(D) by

hand.

2.2) Insert Positioning Dowels(④) into mounting positions on Side Panel Left(D) by hand.

2.3) Repeat the same process on Side Panel Right(E).

②

⑬

RIGHT FACE

②

⑦

4.1

⑦

⑬

①④④

④

①

④

①

④

①

④

2.2

RIGHT FACE

2.1

①

Page 7 OF 21

Page 8

Step 5

Step 6

Step 7

Insert Cam Bolts(②) into mounting positions on Center Panel Right(G) by hand.

5.1) Insert Cam Locks(①) into mounting positions on Center Panel Left(F) by hand.

5.2) Insert Positioning Dowels(④) into mounting positions on Center Panel Left(F) by hand.

7.1) Attach Drawer Right Side Rails(AR) to Center Panel Right(G) using Screws(⑦) with Screwdriver(⑬) where indicated.

Note: There are pre-existing mounting positions on the Center Panel Right(G) to attach the Drawer Right Side Rails(AR). Tighten the Screws fully in a sequential manner.

②

⑬

LEFT FACE

②

⑦

⑬

⑦

7.1

ARARAR

④

④④④

①

LEFT FACE

5.1

①

④

5.2

Page 8 OF 21

Page 9

Step 8

Step 9

8.1) Insert Cam Locks(①) into mounting positions on Center Panel Right(G) by hand.

8.2) Insert Positioning Dowels(④) into mounting positions on Center Panel Right(G) by hand.

9.1) Insert Cam Locks(①) into mounting positions on Middle Panel(I) by hand.

9.2) Insert Positioning Dowels(④) into mounting positions on Middle Panel(I) by hand.

RIGHT FACE

④

①

④

①

④

④①①

④

9.1

①

④

8.2

④

9.2

8.1

①

Page 9 OF 21

Page 10

Step 10

Step 11

10.1) Insert Positioning Dowels(④) from Middle Panel(I) into mounting positions on Center Panel Left(F).

Note: Ensure the arrows on Cam Locks head points towards the Cam Bolt mounting positions.

10.1) Insert Cam Bolts(②) on Center Panel Left(F) into the mounting

positions on Middle Panel(I).

10.2) Turn the Cam Locks(①) clockwise with the Screwdriver(⑬) until they all lock into place.

10.3) Cover Cam Locks(①) with Cam Caps(③) by hand.

11.1) Insert Positioning Dowel(④) from Middle Panel(I) into mounting

position on Center Panel Right(G).

Note: Ensure the arrow on Cam Lock head points towards the Cam Bolt mounting position.

11.1) Insert the Cam Bolt(②) on Center Panel Right(G) into mounting

position on side of Middle Panel(I).

11.2) Turn the Cam Lock(①) clockwise with the Screwdriver(⑬) until it locks into place.

11.3) Cover Cam Locks(①) with Cam Caps(③) by hand.

Arrow

NOTE

Cam Bolt

Mounting Position

Arrow

NOTE

Cam Bolt

Mounting Position

④

②

①

④

②

①

④

10.1

⑬

②

①

④

11.1

⑬

②

①

10.3

③

①

11.3

③

①

②②②②

10.2

11.2

Page 10 OF 21

Page 11

Step 12

Step 13

12.1) Insert Positioning Dowels(④) from Center Panel Left(F) and Center Panel Right(G) into mounting positions on Top Panel(C).

Note: Ensure the arrows on Cam Locks head points towards the Cam Bolt mounting positions.

12.1) Insert the Cam Bolts(②) on Top Panel(C) into mounting positions on

Center Panel Left(F) and Center Panel Right(G).

12.2) Turn the Cam Locks(①) with the Screwdriver(⑬) until they all lock into place.

12.3) Cover Cam Locks(①) with Cam Caps(③) by hand.

13.1) Insert Positioning Dowels(④) from Side Panel Right(E) into mounting

positions on Top Panel(C).

Note: Ensure the arrows on Cam Locks head points towards the Cam Bolt mounting positions.

13.1) Insert the Cam Bolts(②) on Top Panel(C) into mounting positions on

Side Panel Right(E).

13.2) Turn the Cam Locks(①) with the Screwdriver(⑬) until they all lock into place.

13.3) Cover Cam Locks(①) with Cam Caps(③) by hand.

Arrow

NOTE

Cam Bolt

Mounting Position

④

②

①

Arrow

NOTE

Cam Bolt

Mounting Position

①

④

②

12.3

③

①

④

12.1

⑬

②C①

④

13.1

⑬

②

①

13.3

③

①

13.2

12.2

Page 11 OF 21

Page 12

Step 14

Step 15

14.1) Insert Positioning Dowels(④) from Side Panel Left(D) into mounting positions on Top Panel(C). Note: Ensure the arrows on Cam Locks head points towards the Cam Bolt mounting positions.

14.1) Insert the Cam Bolts(②) on Top Panel(C) into mounting positions on Side Panel Left(D).

14.2) Turn the Cam Locks(①) with the Screwdriver(⑬) until they all lock into place.

14.3) Insert Cam Cap(③) to cover the Cam Lock(①) by hand.

15.1) Insert Positioning Dowels(④) from Side Panel Left(D),Side Panel

Right(E), Center Panel Left(F) and Center Panel Right(G) into mounting positions on Bottom Panel(L).

15.2) Attach Bottom Panel(L) to Side Panel Left(D), Side Panel RIght(E), Center Panel Left(F) and Center Panel Right(G) using Cap Wood Screws(⑤) with Allen Key(⑨).

Arrow

NOTE

Cam Bolt

Mounting Position

④

②

①

15.2

⑨

⑤

④

14.1

⑬

②

①

14.3

③

①

15.1

④

14.2

Page 12 OF 21

Page 13

Step 16

Step 17

Attach Back Panel(K) to TV Cabinet Assembly using Nails(⑩) with Hammer(⑭).

Note: Ensure all the Cam Lock(①) must be tighten after Attach the Back Panel(K). Please be extra careful when using a hammer to avoid injury. Note: Hit Nails(⑩) along all four edges (slightly inwards from sides) on the lines drawn on the Back Panel(K).

Attach Legs(R) and Middle Leg(S) to Bottom Panel(L) using Screws(⑦) with Screwdriver(⑬).

Tighten the Screws fully in a sequential manner. Caution: Legs(R) should be facing outwards. Misassembly and reassembly may cause damage and instability to the product. Note: There are pre-existing mounting positions on the Bottom Panel(L) to attach the Legs(R) and Middle Leg(S).

⑬

⑦

⑬

CAUTION

⑩

⑭

LLS

⑩

NOTE

Page 13 OF 21

Page 14

Step 18

Step 19 Step 20

Step 21

Insert Metal Shelf Support(⑧) into mounting positions on Side Panel Left(D), Side Panel Right(E), Center Panel Left(F) and Center Panel Right(G) By hand.

Attach Hinges(⑪) to Door Panel(H) using Screws(⑦) with Screwdriver(⑬).

Tighten the Screws fully in a sequential manner. Note: There are pre-existing mounting positions on the Door Panel(H) to attach the Hinges(⑪).

Put Shelf Panel(J) in place on Shelf Supports(⑧).

Note: There are lead mounting positions on Shelf Panels (J) to fit Metal Shelf Supports (⑧).

⑧

GFK

NOTE

⑧

⑦

⑦⑬⑪

⑪

⑬

⑫

⑬⑫⑫

⑫

Page 14 OF 21

Page 15

Step 22 Step 23

Attach Drawer Side Panels(N) to Drawer Front Panel(M) and Drawer Back Panel(O) using Screws(⑥) with Screwdriver(⑬).

Tighten the Screws fully in a sequential manner.

Attach Handle(Q) to Door Panel(H) using Screws(⑫) with Screwdriver(⑬).

Tighten the Screws fully in a sequential manner. Note: There are pre-existing mounting positions on the Door Panel(H) to attach the Handle(Q).

22.1) Attach Hinges(⑪) to Side Panel Left(D) and Side Panel Right(E)

using Screws(⑦) with Screwdriver(⑬). Tighten the Screws fully in a sequential manner.

22.2) Rotate first screw on Hinges(⑪) to adjust left-right position of Door Panels(H) when necessary.

22.3) Rotate second screw on Hinges(⑪) to adjust in-out position of Door Panels(H) when necessary.

Note: There are pre-existing mounting positions on the Side Panel Left(D) and Side Panel Right(E) to attach the Hinges(⑪).

22.1

22.2

⑦

⑪

⑬

⑬⑪⑪

⑬

KHF

⑥

⑬

⑥

Page 15 OF 21

Page 16

Step 24

Insert Drawer Bottom Panel(P) into Drawer Assembly, attach Drawer Side Panels(N) to Drawer Front Panel(M) and Drawer Back Panel(O) using Screws(⑥) with Screwdriver(⑬).

Tighten the Screws fully in a sequential manner.

PNO

⑥

⑬

⑥

Page 16 OF 21

Page 17

Step 25 Step 26

Step 27

25.1) Attach Drawer Right Bottom Rail(BR) to Drawer Bottom Panel(P) using Screws(⑦) with Screwdriver(⑬) where indicated.

25.2) Repeat the same process on the Drawer Left Bottom Rail(BL). Tighten the Screws fully in a sequential manner.

Attach Handle(Q) to Drawer Front Panel(M) using Screws(⑫) with Screwdriver(⑬).

Tighten the Screws fully in a sequential manner.

Put Drawer in place by aligning the rails.

BL/BR

⑫

⑬

⑫

BL/BR

AL/AR

MMM

⑬

25.1

⑦

25.2

NOTE

Page 17 OF 21

Page 18

Step 28

！ WARNING

Serious or fatal crushing injuries can occur from tipping furniture.

To help prevent tip-over: ALWAYS secure this furniture to the wall using Cabinet Restraint

Device.

See product instructions for more ways to help prevent furniture tip-over.

Usage For Cabinet Restraint Device:

To secure Cabinet against wall, attach two Metal Brackets(⑯) on wall and product, use Cabinet Restraint Strap(⑳) to connect the Metal Brackets(⑯).

Instructions:

28.1) Turn the Cabinet so the back side faces you.

28.2) Attach Metal Brackets(⑯) to Back Panel(K), where labeled, using Pan

Head Screws(⑲) with Screwdriver(⑬).

⑲

⑯

⑬

⑯

28.2

Page 18 OF 21

Page 19

Step 29

Step 30

Attach Metal Brackets(⑯) to Wall Plugs(⑰) using Wall Plug Screws(⑱) with Screwdriver(⑬).

29.1) Drill two holes on wall at same height as Metal Brackets(⑯) on Cabinet with Power Drill(⑮).

You can mark these points in two ways as below:

1) Move the Cabinet back to the wall. Mark two points same height as

Cabinet on the wall.

Note: The Metal Brackets need to be secured to solid, load bearing surface. Please use a Stud Finder(not supplied) if needed to locate the Wall Frame.

2) Measure the height of the Metal Brackets(⑯) with ruler/measuring tape

and mark on wall to keep them accurate and same height.

29.2) Insert Wall Plugs(⑰) into drilled holes on wall with Hammer(⑭).

⑭

⑮

29.2

29.1

⑰

⑱

⑰⑯⑬

Page 19 OF 21

Page 20

Step 31

Step 32

Move Cabinet to the wall. Pull the Restraint Straps(⑳) through the Metal Brackets(⑯) on the wall and Cabinet one by one, and pull the Restraint Straps(⑳) tight.

Your Cabinet is ready for use.

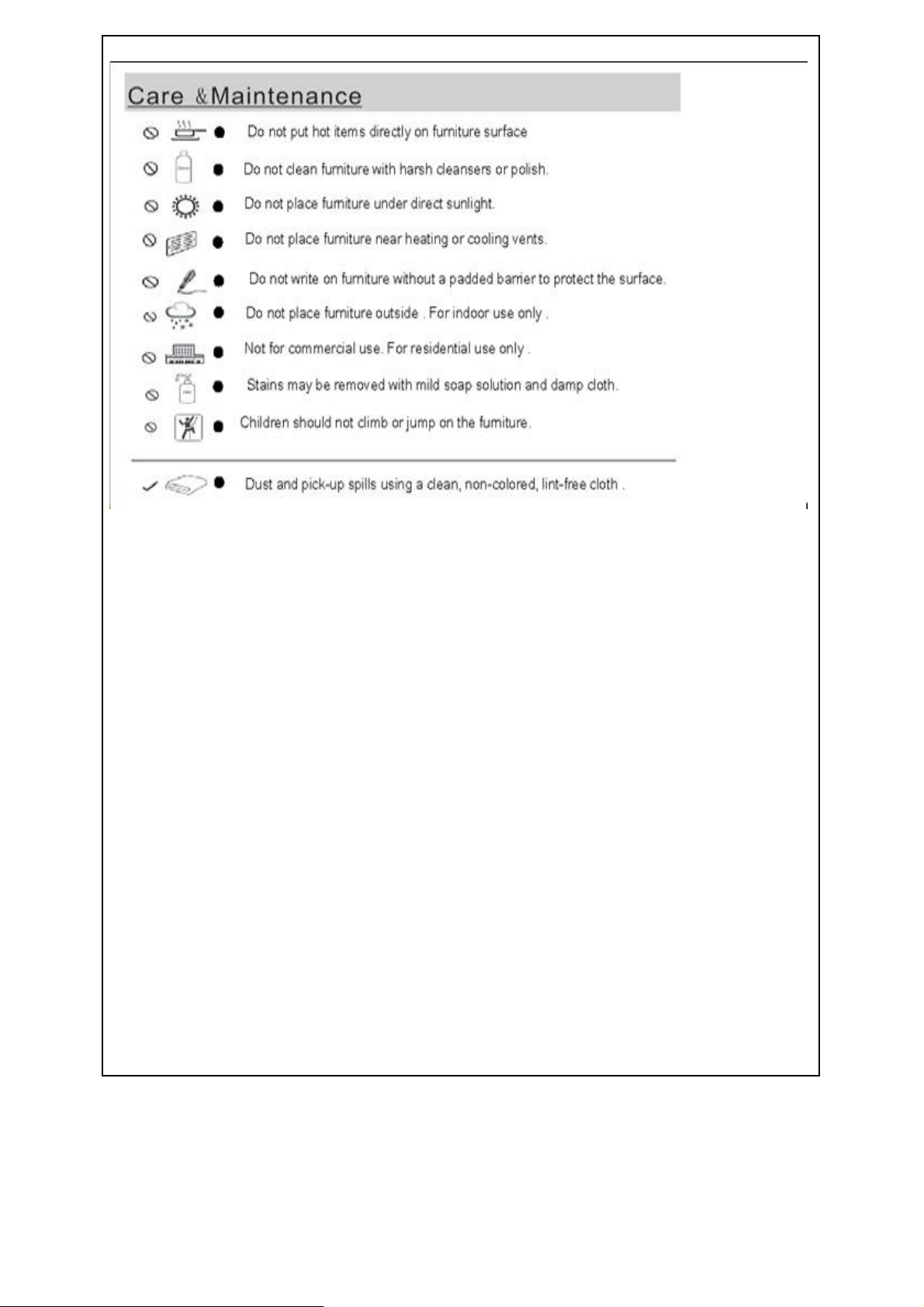

This Cabinet can only be used on a flat, level surface.

⑳

⑯

Page 20 OF 21
