Page 1

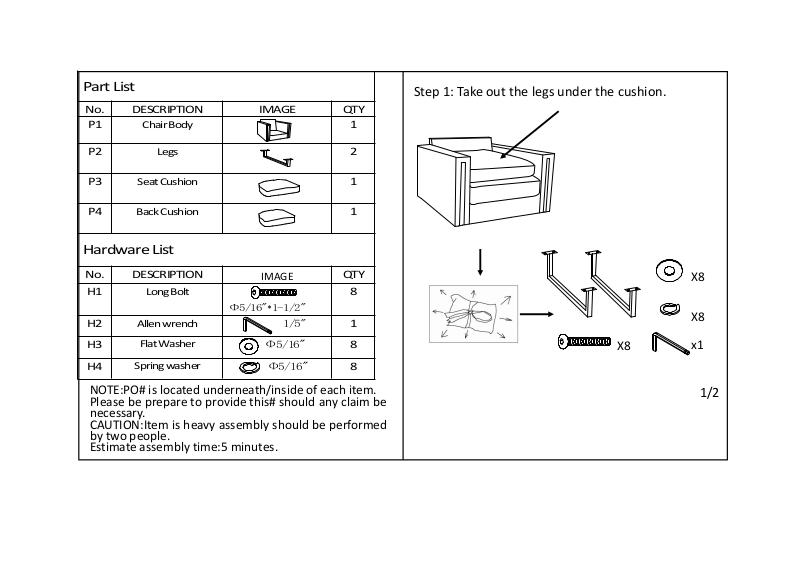

PartList
No.
DESCRIPTION
QTY
P1
ChairBody
1
P2
Legs
2
P3
SeatCushion
1
P4
BackCushion
1
HardwareList
No.
DESCRIPTION
QTY
H1
LongBolt
Φ5/16"*1-1/2"
8
H2
Allenwrench
1/5
"
1
H3
FlatWasher
Φ5/16"
8
H4
Springwasher
Φ5/16"
8
Step 1: Take out the legs under the cushion.
x1
X8
X8
X8
1/2
NOTE:PO# is located underneath/inside of each item.
Please be prepare to provide this# should any claim be
necessary.
CAUTION:Item is heavy assembly should be performed
by two people.
Estimate assembly time:5 minutes.
Page 2
2/2
Step 2: Attach legs(P2) to the seat frame by using flat washer (H3),spring washer(H4), Long Bolt (H1)and
use Allen wrench(H2)to tighten the bolt !
H4
H1
H2
P2
P1
Step 3：Level the chair and place the chair upright on a level surface.
ADDITIONAL NOTE ABOUT SAFETY:BOLTS MAY LOOSEN DURING NORMAL EVERYDAY USE. THEY SHOULD BE PERIODICALLY INSPECTED AND RE-TIGHTENED TO
PREVENT DAMAGE OR INJURY. ALWAYS CHECK TO BE SURE THAT ALL HARDWARE IS KEPT TIGHTENED.
Thank you for your purchase
