A

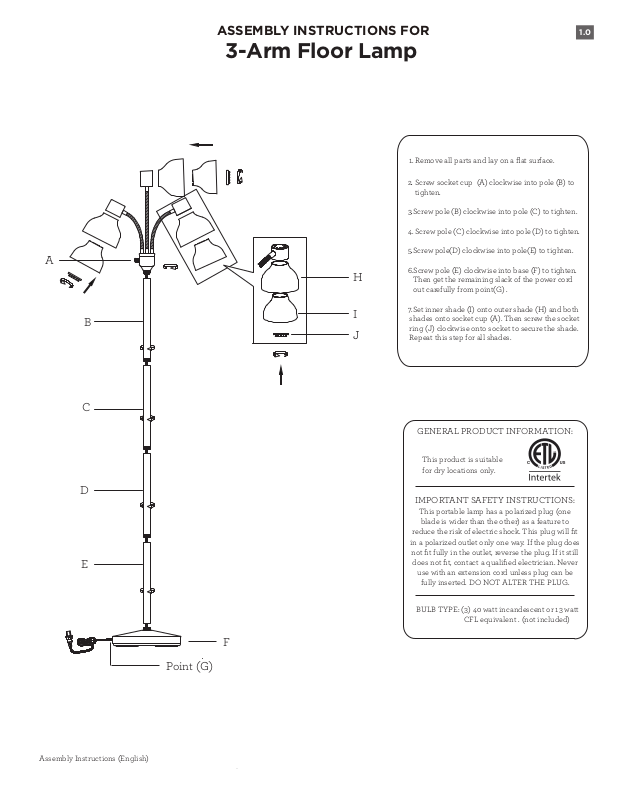

ASSEMBLY INSTRUCTIONS FOR
3566-04
3-Arm Floor Lamp
1. Remove all parts and lay on a flat surface.
2. Screw socket cup (A) clockwise into pole (B) to
tighten.
3.Screw pole (B) clockwise into pole (C) to tighten.
4. Screw pole (C) clockwise into pole (D) to tighten.
5.Screw pole(D) clockwise into pole(E) to tighten.
H
I
B
J
6.Screw pole (E) clockwise into base (F) to tighten.
Then get the remaining slack of the power cord
out carefully from point(G) .
7.
Set inner shade (I) onto outer shade (H) and both
shades onto socket cup (A). Then screw the socket
ring (J) clockwise onto socket to secure the shade.
Repeat this step for all shades.
3566-09
1.03566-01
D
C
E
GENERAL PRODUCT INFORMATION:
This product is suitable
for dry locations only.
IMPORTANT SAFETY INSTRUCTIONS:
This portable lamp has a polarized plug (one
blade is wider than the other) as a feature to
reduce the risk of electric shock. This plug will fit
in a polarized outlet only one way. If the plug does
not fit fully in the outlet, reverse the plug. If it still
does not fit, contact a qualified electrician. Never
use with an extension cord unless plug can be
fully inserted. DO NOT ALTER THE PLUG.
BULB TYPE: (3) 40 watt incandescent or 13 watt
CFL equivalent . (not included)
F
Point (G)
