Outdoor Wicker Arm Chair
PART LIST
A B
Right Arm Panel
1 PC
Left Arm Panel
1 PC
F
Back Cushion
1 PC
HARDWARE LIST
C
Back Panel
1 PC
D
Seat Panel
1 PC
E
Seat Cushion
1 PC
#1
M6*65mm M6mm M6mm
Bolt
12 PCS
#2 #3 #4 #5
Washer
24 PCS
EXTRA HARDWARE LIST
#1
M6*65mm M6mm M6mm
Bolt
#2 #3
Washer
Nut
12 PCS
Nut
M6mm
Allen Key
1 PC
M6mm
Wrench
1 PC
1 PC
1 PC
1 PC
2
Step 1.
Lay back panel (part C) down on a soft flat surface,such as carpet,as shown below.
Attach right arm panel (part A) to back panel (part C) using bolts(part #1),washers
(part #2),nuts(part #3),wrench(part #5) and allen key (part #4).
NOTE:Please do not fully tighten bolts until unit is fully assembled.
#2
#1
#4
A
C
Step 2.
Attach left arm panel (part B) to back panel (part C) using bolts(part #1),washers
(part #2) ,nuts (part #3),wrench (part #5) and allen key (part #4).
NOTE:Please do not fully tighten bolts until unit is fully assembled.
#2
#3
#5
#1
#2
#3
#4
#5
x2
x4
x2
x1
x1
#5
#3
#2
#2
#1
#4
B
A
C
#1
#2
#3
#4
#5
3
x2
x4
x2
x1
x1

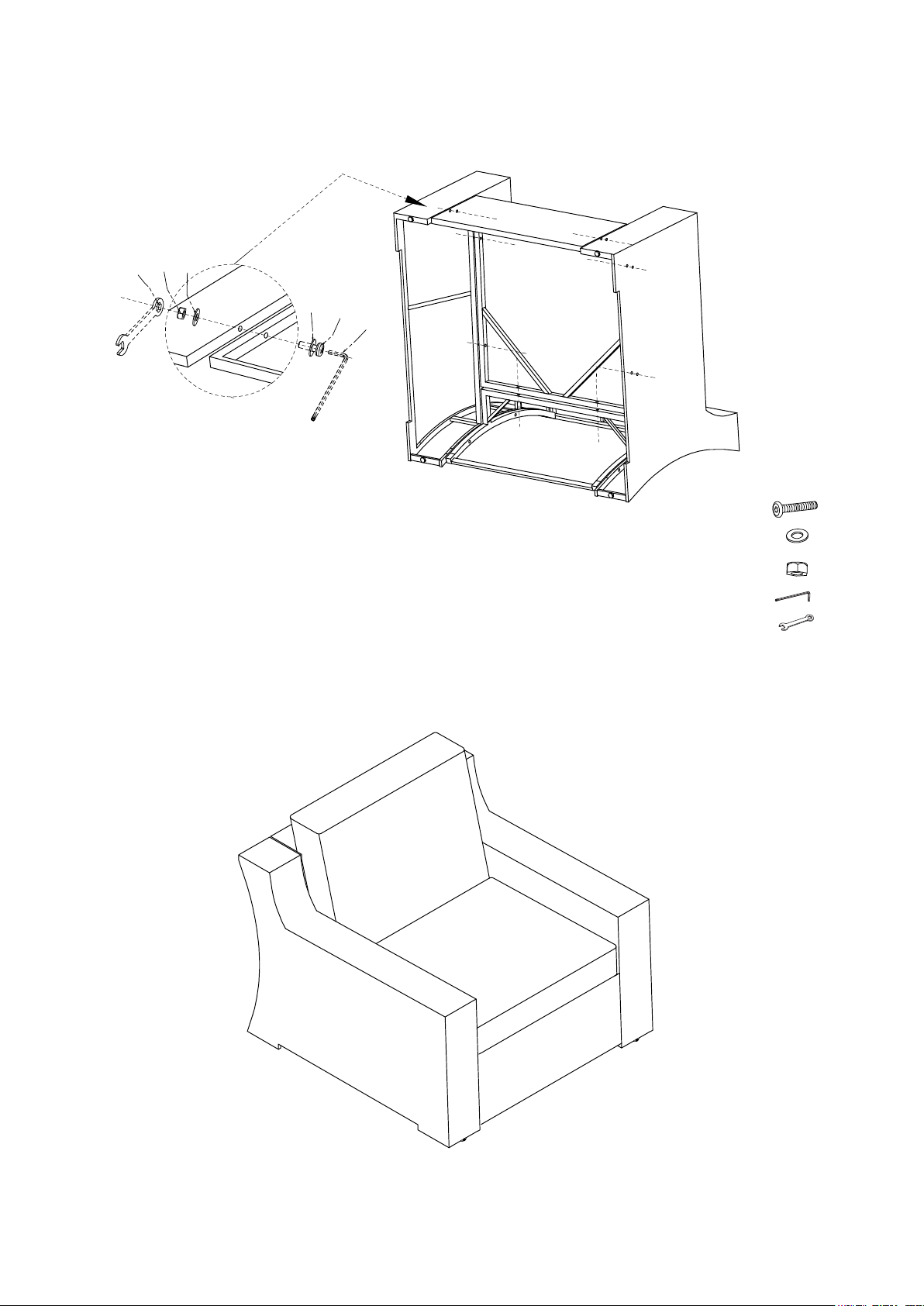

Step 3.
Attach seat panel (part D) to assembled unit (parts A,B&C) using bolts(part #1),washers
(part #2),nuts(part #3),wrench(part #5) and allen key (part #4).
NOTE:Please fully tighten all bolts at this time.
#2
#3
#5
Step 4.
Carefully turn chair upright.Place seat cushion (part E) and back cushion (part F)
on the chair.
#2
#1
#4
B
D
C
A
#1
#2
#3
#4
#5
x8
x16
x8
x1
x1
F
E
4
