SINGLE HIGH BAND ANTENNA
MODEL:

WL 7-13/S

HIGH BAND ANTENNA

A single high band model provides optimum per-
formance over the entire VHF high band. This
sturdy antenna gives excellent performance with
reliable, trouble free operation. A newly designed
feed point accepts a standard 75 Ohm CATV
housing connector.

Antenna, Inc.

SINGLE HIGH BAND
ANTENNA MODEL:

• WL 7-13/S

HIGH BAND ANTENNA

A single high band model provides optimum performance
over the entire VHF high band. This sturdy antenna gives
excellent performance with reliable, trouble free operation.
A newly designed feed point accepts a standard 75 Ohm
CATV housing connector.

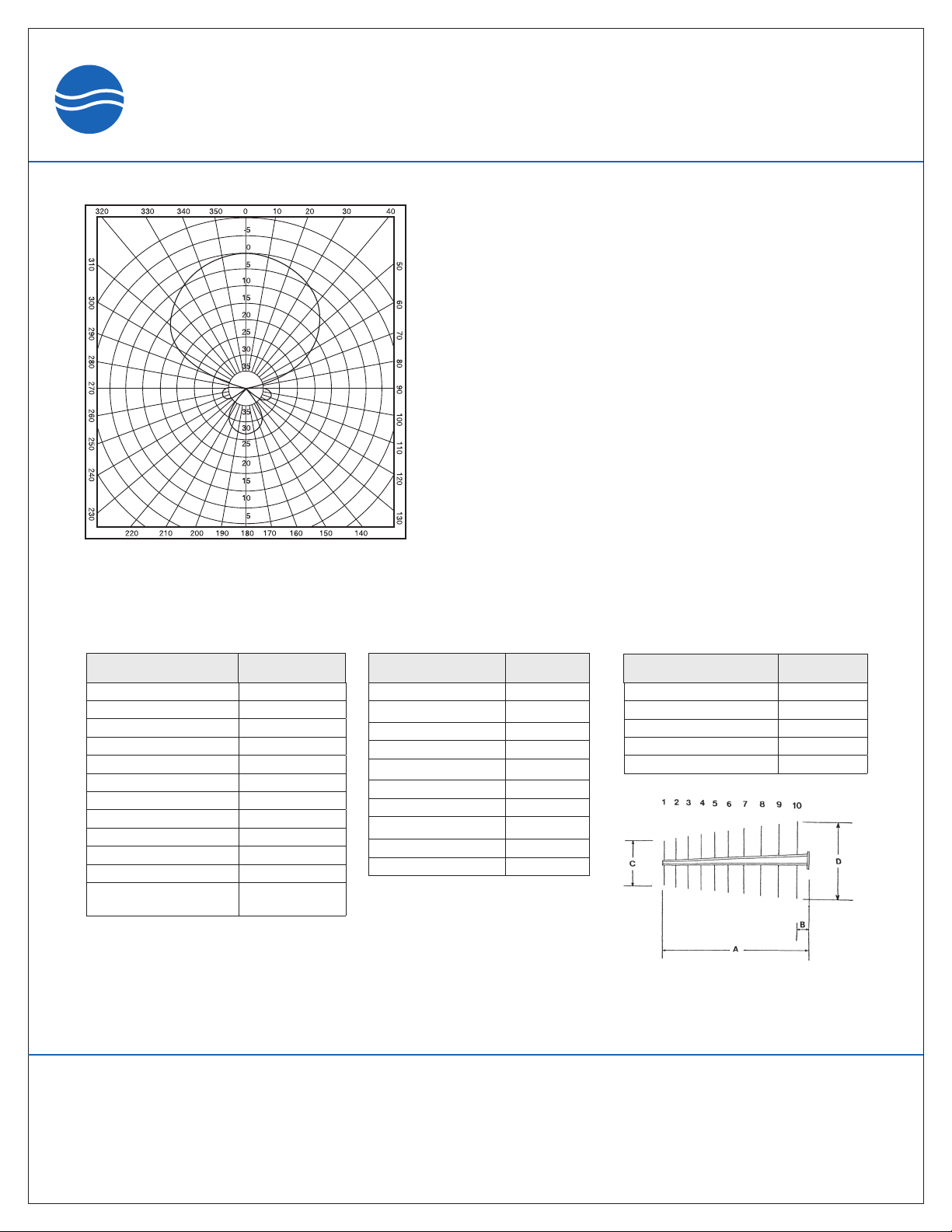

SPECIFICATIONS:

ElEctrical

Specification

FREQUENCY RANGE
CHANNELS
GAIN 11.5 dBi
IMPEDANCE 75 Ohm
VSWR <1.25:1
FR:BK RATIO
POLARIZATION
H. BEAM WIDTH
V. BEAM WIDTH 70 deg.
SIDE LOBE SUPPRESSION* >30 dB
CONNECTORS** “F” Connector
STD. MOUNT 1/2" U-Bolts to Fit

*Where interfering signals such as co-channel, adja­cent channel and ghosting are present, custom arrays
can be designed to reduce the level of interference by
as much as 40 db in most cases.

A qualified structural engineer should be consulted prior to mounting an antenna on a tower or a support structure.

WL 7-13/S

174-216 MHz

7 To 13

>25 dB

H or V

50 deg.

2 7/8" O.D. Pipe

WiND aND icE lOaDiNG

Specification

BOOM LENGTH 96 "
WEIGHT (LBS):

NO ICE* 25
1" RADIAL ICE** 140

WIND LOAD (LBS):

NO ICE* 60
1" RADIAL ICE** 60

WIND TORQUE (Ft-Lbs):

NO ICE* 327
1" RADIAL ICE** 235

*WIND SPEED 100 MPH
**HALF WIND 50 MPH

WL 7-13/S

MEcHaNical

Specification

NUMBER OF ELEMENTS 10
BOOM LENGTH (A) 96"
STUB LENGTH (B) 8.25"
SHORTEST ELEMENT (C) 19.25"
LONGEST ELEMENT (D) 33.625"

WL 7-13/S

WADE Antenna Inc.

29 Sharp Road
Brantford, Ontario, N3T 5L8 Canada
Tel: [phone]
Fax: [phone]

[e-mail]

www.wadeantenna.com
