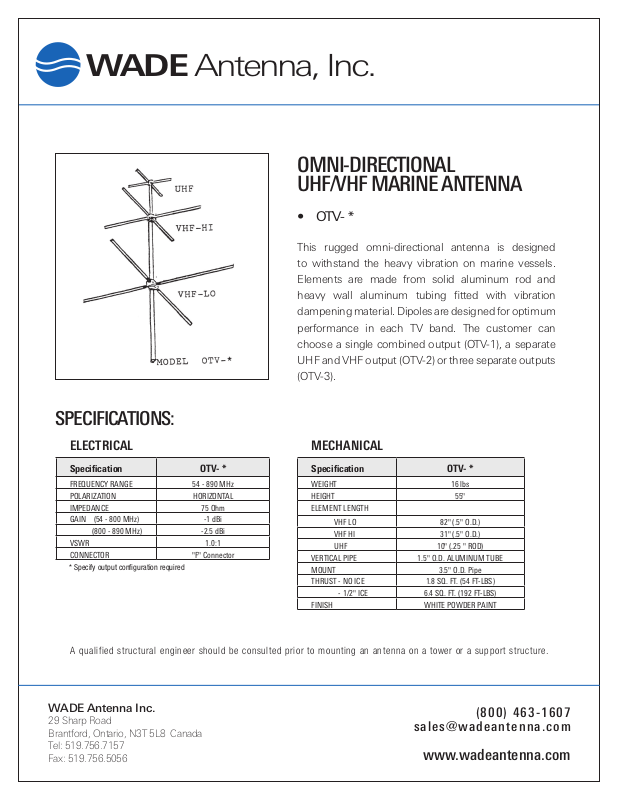

Wade Antenna OTV-x User Manual

WADE

OMNI-DIRECTIONAL
UHF/VHF MARINE
ANTENNA

MODEL:

OTV- *

This rugged omni-directional antenna is designed
to withstand the heavy vibration on marine ves-
sels. Elements are made from solid aluminum rod
and heavy wall aluminum tubing fitted with vibra-
tion dampening material. Dipoles are designed for
optimum performance in each TV band. The
customer can choose a single combined output

Antenna, Inc.

OMNI-DIRECTIONAL
UHF/VHF MARINE ANTENNA

• OTV- *

This rugged omni-directional antenna is designed
to withstand the heavy vibration on marine vessels.
Elements are made from solid aluminum rod and
heavy wall aluminum tubing fitted with vibration
dampening material. Dipoles are designed for optimum
performance in each TV band. The customer can
choose a single combined output (OTV-1), a separate
UHF and VHF output (OTV-2) or three separate outputs
(OTV-3).

SPECIFICATIONS:

ELECTRICAL

Specification

FREQUENCY RANGE 54 - 890 MHz
POLARIZATION HORIZONTAL
IMPEDANCE 75 Ohm
GAIN (54 - 800 MHz) -1 dBi

(800 - 890 MHz) -2.5 dBi
VSWR 1.0:1
CONNECTOR "F" Connector

* Specify output configuration required

OTV- *

A qualified structural engineer should be consulted prior to mounting an antenna on a tower or a support structure.

WADE Antenna Inc.

29 Sharp Road
Brantford, Ontario, N3T 5L8 Canada
Tel: [phone]
Fax: [phone]

MECHANICAL

Specification

WEIGHT 16 lbs
HEIGHT 55"
ELEMENT LENGTH

VHF LO 82" (.5" O.D.)
VHF HI 31" (.5" O.D.)

UHF 10" (.25 " ROD)
VERTICAL PIPE 1.5" O.D. ALUMINUM TUBE
MOUNT 3.5" O.D. Pipe
THRUST - NO ICE 1.8 SQ. FT. (54 FT-LBS)

- 1/2" ICE 6.4 SQ. FT. (192 FT-LBS)

FINISH WHITE POWDER PAINT

OTV- *
