Wade Antenna OFT-2M User Manual

SPECIFICATIONS

ELECTRICAL

FREQUENCY (MHz)

108-118

GAIN (dBi Minimum)

2 dBi (Main Lobe)

POLARIZATION

Horizontal

VSWR

Less than 1.6:1

TERMINAL TYPE

“N” Female

TERMINAL IMPEDANCE

50 Ohms

MAXIMUM POWER

40 Watts

MONITOR PORT

TERMINAL TYPE

“N” Female

COUPLED LEVEL

-45dB ±5dB

(Below Input Level)

DIRECTIVITY

Greater than 20dB

HEIGHT (Max)

71.50 in. (181.6 cm)

WIDTH (Max)

60.00 in. (152.4 cm)

MECHANICAL

OFT-2M OMNI-DIRECTIONAL

DUAL ARRAY ANTENNA

TACO

Antenna

A division of WADE Antenna, Inc.

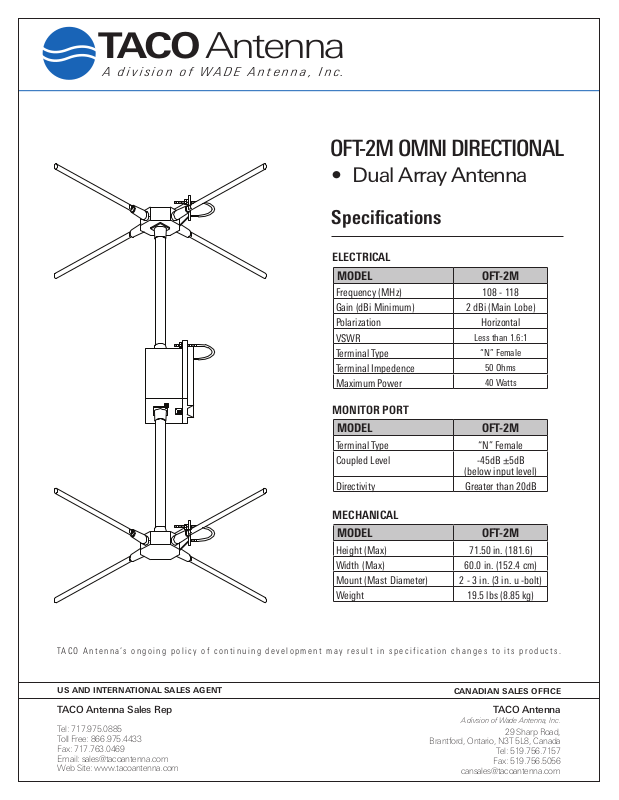

OFT-2M OMni DirecTiOnal

Dual Array Antenna•

Specications

ELECTRICAL

MODEL OFT-2M

Frequency (MHz) 108 - 118
Gain (dBi Minimum) 2 dBi (Main Lobe)
Polarization Horizontal
VSWR
Terminal Type
Terminal Impedence
Maximum Power

Less than 1.6:1

“N” Female

50 Ohms

40 Watts

TACO Antenna’s ongoing policy of continuing development may result in specification changes to its products.

US And InTernATIOnAl SAleS AGenT

TACO Antenna Sales Rep

Tel: [phone]
Toll Free: 866.975.4433
Fax: [phone]
Email: [e-mail]
Web Site: www.tacoantenna.com

MONITOR PORT

MODEL OFT-2M

Terminal Type “N” Female
Coupled Level -45dB ±5dB

Directivity Greater than 20dB

MECHANICAL

MODEL OFT-2M

Height (Max) 71.50 in. (181.6)
Width (Max) 60.0 in. (152.4 cm)
Mount (Mast Diameter) 2 - 3 in. (3 in. u -bolt)
Weight 19.5 lbs (8.85 kg)

Brantford, Ontario, N3T 5L8, Canada

(below input level)

CAnAdIAn SAleS OFFICe

A divsion of Wade Antenna, Inc.

[e-mail]

TACO Antenna

29 Sharp Road,

Tel: [phone]

Fax: [phone]

TACO

OFT-2S OMNI-DIRECTIONAL

DUAL ARRAY ANTENNA

This antenna is based on TACO’s
commercial off-the-shelf OFT dual
array antenna.

SPECIFICATIONS

ELECTRICAL

FREQUENCY (MHz)

108-118

GAIN (dBi Nominal)

2 dBi (Main Lobe)

POLARIZATION

Horizontal

VSWR

Less than 1.6:1

TERMINAL TYPE

“N” Female

TERMINAL IMPEDANCE

50 Ohms

MAXIMUM POWER

40 Watts

HEIGHT (Max)

71.50 in. (181.6 cm)

WIDTH (Max)

60.00 in. (152.4 cm)

MOUNT (Mast Dia)

2 to 3 in. (3 in. u-bolt)

WEIGHT

19.5 lbs (8.85 kg)

MECHANICAL

TACO Communications, Inc.

Antenna

A division of WADE Antenna, Inc.

OFT-2S OMni DirecTiOnal

Dual Array Antenna

This antenna is based on TACO’s commercial
off-the-shelf OFT dual array antenna

Specications

ELECTRICAL

MODEL OFT-2S

Frequency (MHz) 108 - 118
Gain (dBi Minimum) 2 dBi (Main Lobe)
Polarization Horizontal
VSWR
Terminal Type
Terminal Impedence
Maximum Power

Less than 1.6:1

“N” Female

50 Ohms

40 Watts

MECHANICAL

MODEL OFT-2S

Height (Max) 71.50 in. (181.6)
Width (Max) 60.0 in. (152.4 cm)
Mount (Mast Diameter) 2 - 3 in. (3 in. u -bolt)
Weight 19.5 lbs (8.85 kg)

TACO Antenna’s ongoing policy of continuing development may result in specification changes to its products.

US And InTernATIOnAl SAleS AGenT

TACO Antenna Sales Rep

Tel: [phone]
Toll Free: 866.975.4433
Fax: [phone]
Email: [e-mail]
Web Site: www.tacoantenna.com

Brantford, Ontario, N3T 5L8, Canada

CAnAdIAn SAleS OFFICe

TACO Antenna

A divsion of Wade Antenna, Inc.

29 Sharp Road,

Tel: [phone]

[e-mail]

Fax: [phone]

TACO

OFT-EP

OMNI-DIRECTIONAL

ANTENNA

The OFT-EP is an omni directional, elliptically
polarized antenna for differential communications
(LADGPS) between ground and aircraft. It is a
combination of a horizontally polarized loop
antenna and a vertically polarized dipole antenna,
with a power split of 75%-25% respectively.

A division of WADE Antenna, Inc.

Antenna

OFT-eP OMni DirecTiOnal

Single Array Antenna

The OFT-EP is an omni directional, elliptically
polarized antenna for differential communications
(LADGPS) between ground and aircraft. It is a combination
of a horizontally polarized loop antenna and a vertically
polarized dipole antenna, with a power split of 75%-25%
respectively.

Specications

ELECTRICAL

MODEL OFT-EP

Frequency (MHz) 108 - 118
Gain (dBi Nominal) Horiz. Polarization 0.75 dBi (-1.25 dBd)

Vert. Polarization –4.0 dBi (-6 dBd)
VSWR
Terminal Type
Terminal Impedence
Maximum Power
Lightning Protection

MECHANICAL

MODEL OFT-EP

Height (Max) 62.0 in. (157.5 cm)
Width (Max) 58.0 in. (147.3 cm)
Mount (Mast Dia.) 2 - 3 in. (3 in. u -bolt)
Weight 7.5 lbs (7.95 kg)

Less than 1.6:1

“N” Female

50 Ohms

40 Watts

DC GROUND

TACO Antenna’s ongoing policy of continuing development may result in specification changes to its products.

US And InTernATIOnAl SAleS AGenT

TACO Antenna Sales Rep

Tel: [phone]
Toll Free: 866.975.4433
Fax: [phone]
Email: [e-mail]
Web Site: www.tacoantenna.com

CAnAdIAn SAleS OFFICe

TACO Antenna

A divsion of Wade Antenna, Inc.

29 Sharp Road,

Brantford, Ontario, N3T 5L8, Canada

Tel: [phone]

Fax: [phone]

[e-mail]

TACO

OFT-SP OMNI-DIRECTIONAL

DUAL ARRAY ANTENNA

This antenna is based on TACO’s
commercial off-the-shelf OFT dual
array antenna.

SPECIFICATIONS

ELECTRICAL

FREQUENCY (MHz)

108-118

GAIN (dBi Nominal)

1.75 dBi (Main Lobe)

POLARIZATION

Horizontal

VSWR

Less than 1.6:1

TERMINAL TYPE

“N” Female

TERMINAL IMPEDANCE

50 Ohms

MAXIMUM POWER

40 Watts

HEIGHT (Max)

41.50 in. (105.5 cm)

WIDTH (Max)

60.00 in. (152.4 cm)

MOUNT (Mast Dia)

2 to 3 in. (3 in. u-bolt)

WEIGHT

7.5 lbs (7.95 kg)

MECHANICAL

Antenna

A division of WADE Antenna, Inc.

OFT-SP OMni DirecTiOnal

Dual Array Antenna

This antenna is based on TACO’s commercial
off-the-shelf OFT dual array antenna

Specications

ELECTRICAL

MODEL OFT-SP

Frequency (MHz) 108 - 118
Gain (dBi Minimum) 1.75 dBi (Main Lobe)
Polarization Horizontal
VSWR
Terminal Type
Terminal Impedence
Maximum Power

Less than 1.6:1

“N” Female

50 Ohms

40 Watts

MECHANICAL

MODEL OFT-SP

Height (Max) 41.50 in. (105.5)
Width (Max) 60.0 in. (152.4 cm)
Mount (Mast Diameter) 2 - 3 in. (3 in. u -bolt)
Weight 7.5 lbs (8.85 kg)

TACO Antenna’s ongoing policy of continuing development may result in specification changes to its products.

US And InTernATIOnAl SAleS AGenT

TACO Antenna Sales Rep

Tel: [phone]
Toll Free: 866.975.4433
Fax: [phone]
Email: [e-mail]
Web Site: www.tacoantenna.com

Brantford, Ontario, N3T 5L8, Canada

CAnAdIAn SAleS OFFICe

A divsion of Wade Antenna, Inc.

[e-mail]

TACO Antenna

29 Sharp Road,

Tel: [phone]

Fax: [phone]
