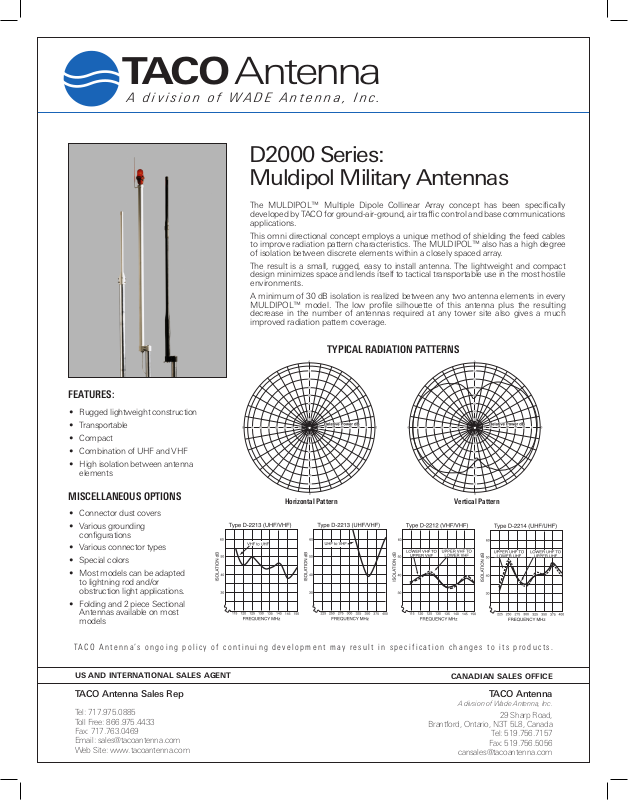

TACO
Antenna
A division of WADE Antenna, Inc.
D2000 Series:
Muldipol Military Antennas
The MULDIPOL™ Multiple Dipole Collinear Array concept has been specifically
developed by TACO for ground-air-ground, air traffic control and base communications
applications.
This omni directional concept employs a unique method of shielding the feed cables
to improve radiation pattern characteristics. The MULDIPOL™ also has a high degree
of isolation between discrete elements within a closely spaced array.
The result is a small, rugged, easy to install antenna. The lightweight and compact
design minimizes space and lends itself to tactical transportable use in the most hostile
environments.
A minimum of 30 dB isolation is realized between any two antenna elements in every
MULDIPOL™ model. The low profile silhouette of this antenna plus the resulting
decrease in the number of antennas required at any tower site also gives a much
improved radiation pattern coverage.
TYPICAL RADIATION PATTERNS
FEATURES:
• Rugged lightweight construction
• Transportable
• Compact
• Combination of UHF and VHF
• High isolation between antenna
elements
MISCELLANEOUS OPTIONS
• Connector dust covers
• Various grounding
configurations
• Various connector types
• Special colors
• Most models can be adapted
to lightning rod and/or
obstruction light applications.
• Folding and 2 piece Sectional
Antennas available on most
models
TACO Antenna’s ongoing policy of continuing development may result in specification changes to its products.
Horizontal Pattern Vertical Pattern
US AND INTERNATIONAL SALES AGENT
TACO Antenna Sales Rep
Tel: 717.975.0885
Toll Free: 866.975.4433
Fax: 717.763.0469
Email: sales@tacoantenna.com
Web Site: www.tacoantenna.com
CANADIAN SALES OFFICE
TACO Antenna
A divsion of Wade Antenna, Inc.
29 Sharp Road,
Brantford, Ontario, N3T 5L8, Canada
Tel: 519.756.7157
Fax: 519.756.5056
cansales@tacoantenna.com
OPERATION
The process employed in the TACO antennas incorporates the patented
MULDIPOL™ concept. The utilization of this technique results in a unit which
has excellent “broadband” halfwave dipole characteristics over the entire
operating frequencies.
The desired “figure eight” radiation pattern is generally constant throughout
the band. Through “broadband” suppression of extraneous currents upon the
transmission line, the undesirable “Clover Leaf” pattern is avoided.
By design, the outer conductors of both halves of each dipole are at the same
DC ground potential. A ground is provided at the base of each antenna for
supplemental grounding capability.
Muldipol Military Antenna Specifications
TAC O
A division of WADE Antenna, Inc.
Antenna
ENVIRONMENTAL
• Built to Military standards
• Rain, salt-fog, sand, dust and fungus to
MIL-STD 810F
• Temperature, barometric pressure and
humidity to MIL-STD 210C
ELECTRICAL
• Isolation (min.) 30.0 dB
• Polarization Vertical
• Omni Directional +0dB/-1dB
• Uniformity (azimuth)
• VSWR (max.) 2:1
(except D2211, 2.3:1)
• Terminals “N” Female
• Terminal Impedance 50 Ohms
• VHF Applied Power 350 W
• UHF Applied Power 250W
• Vertical Beam Deviation ±10° (horizon)
• Operating Temp -40o to 70o C
(-40o to 158o F)
VHF FREQUENCIES ONLY
MODEL
D2212 XX 2.0 2 75 1 152.5 386.7 12.5 5.7 Green 2.0
D2212A XX 2.0 2 75 1 121.38 386.7 12.5 5.7 Green 2.0
D2216 X 2.0 1 75 2 54.5 138.4 5.5 2.5 Green 0.7
D2260 XXX 2.0 3 75 1 196.5 499.1 25.0 11.3
D2260A XXX 2.0 3 75 1 193.5 491.5 25.0 11.3
D2261A XX 4.5 1 40 1 140.5 356.9 19.0 8.6 Green 1.7
D2261A1* XX 4.5 1 40 3 140.5 356.9 19.0 8.6 White 2.1
D2268
D2272* XX 2.0 2 75 3 152.5 386.7 17.5 8.0 White 2.3
D2272A XX 2.0 2 75 2 152.5 386.7 17.0 7.7 Green 2.3
D2276* X 2.0 1 75 3 54.5 138.4 5.5 2.5 White 0.7
VHF FREQUENCY (MHz)
108-
116-
150
118-
136
174
XXX 5.5 1 25 1 200.0 508.0 23.3 10.6 Green 3.0 -
150-
174
GAIN
(dBi)
# OF
OUTPUTS
HPBW
DEGREE
MOUNTING
DIAMETER
LENGTH
INCHES
LENGTHCMWEIGHT
LBS
WEIGHTKGCOLOR
2 Piece
Green
2 Piece
Green
WIND LOAD
0.5” RADIAL
ICE
2.6
2.5
NSN
5985-01-315-7443
-
5985-01-050-7522
5985-01-438-1459
-
-
5985-01-050-7525
5985-01-053-5108
-
5985-01-050-7522
X – Denotes number of active elements
* COTS Product
MOUNTING DIAMETER KEY
(1) = 3 inch Mast Size O.D. Also available for 2.875 upon request
(2) = 1.5 to 3 inch Mast Size O.D.
(3) = 2.875 inch Mast Size O.D. / 1.66 inch adapter also included
www.tacoantenna.com
Muldipol Military Antenna
TAC O
Specifications
UHF FREQUENCIES ONLY
MODEL
D2214 XX 2.0 2 75 1 84.5 214.0 10.0 4.5 Green 1.3
D2217 X 2.0 1 75 2 32.5 81.9 4.0 1.8 Green 0.4
D2219 XXX 2.0 3 75 1 114.5 290.2 13.0 5.9 Green 1.6
D2221 XXXX 2.0 4 75 1 168.5 427.4 17.5 7.9 Green 2.2
D2231 XXXX 1.5 4 75 1 120.0 300.0 14.0 6.4 Green 1.8
D2236 XXXX 6.5 1 22 1 84.0 213.4 18.0 8.2 Green 1.2 -
D2262 XX 4.5 1 40 2 68.0 172.7 13.0 5.9 Green 1.0 -
D2262A* XX 4.5 1 40 3 68.0 172.7 13.0 5.9 White 1.1
D2263 XXXX 6.5 1 20 1 134.5 341.0 20.0 9.1 Green 1.8 -
D2266 XXXXXX 7.5 1 13 1 200.0 508.0 32.0 14.5 Green 2.6
D2266D XXXXXX 5.5 2 25 1 200.0 508.0 32.0 14.5 Green 2.6
D2267 XXX 5.5 1 25 3 112.0 280.0 13.1 6.0 Green 1.7 -
D2274* XX 2.0 2 75 3 84.5 214.0 11.0 5.0 White 1.3
D2274A XX 2.0 2 75 2 84.5 214.0 10.0 4.5 Green 1.3 -
D2277* X 2.0 1 75 3 32.5 81.9 4.0 1.8 White 0.4
D2284 XX 1.5 2 75 1 57.0 144.8 8.0 3.6 Green 1.0
D2288 XXXX 2.0 4 75 1 114.5 290.2 13.0 5.9 White 1.5
UHF FREQUENCY (MHz)
225-400
380-
470
400-
470
400-
500
GAIN
(dBi)
# OF
OUTPUTS
DEGREE
HPBW
MOUNTING
DIAMETER
LENGTH
INCHES
LENGTHCMWEIGHT
A division of WADE Antenna, Inc.
WEIGHTKGCOLOR
LBS
Antenna
WIND
LOAD
0.5”
RADIAL ICE
5985-01-287-7682
5985-01-129-7691
5985-01-154-7328
5985-01-315-5472
5985-01-296-1904
5985-01-050-7523
5985-01-050-7521
NSN
-
-
-
-
-
VHF & UHF FREQUENCIES
MODEL VHF (MHz)
108-
116-
150
118-
136
174
D2118 X XX 2.0 3 75 1 114.5 290.2 12.5 5.7 Green 1.5
D2211 X X 1.5 1 75 1 103.0 261.6 14.0 6.4 White 2.0
D2213 X X 2.0 2 75 1 84.5 214.0 10.0 4.5 Green 1.3
D2218 XX X 2.0 3 75 1 168.5 427.4 16.5 7.5 Green 2.2
D2218A XX X 2.0 3 75 1 168.5 427.4 16.5 7.5
D2241 X X 1.5 2 75 1 106.0 269.3 14.0 6.4 Green 1.6
D2243 X X X 1.5 2 75 1 140.0 350.0 16.4 7.4
D2273* X X 2.0 2 75 3 84.5 214.0 11.5 5.1 White 1.3
D2295 X XX 2.0 3 75 1 125.0 317.5 23.0 10.4 White 2.0
D2296 XX X 2.0 3 75 1 196.0 497.8 28.0 12.7 White 3.0
X – Denotes number of active elements
* COTS Product
D2295 has lightning rod.
D2296 has lightning rod and obstruction light.
138-
174
UHF (MHz)
225-
400
400-
470
GAIN
(dBi)
# OF
OUTPUTS
DEGREE
HPBW
MTG.
DIA.
LENGTH
INCHES
LENGTHCMWEIGHT
MOUNTING DIAMETER KEY
(1) = 3 inch Mast Size O.D. Also available for 2.875 upon request
(2) = 1.5 to 3 inch Mast Size O.D.
(3) = 2.875 inch Mast Size O.D. / 1.66 inch adapter also included
WEIGHTKGCOLOR
LBS
2 Piece
Green
2 Piece
Green
WIND
LOAD
(0.5”
RADIAL
ICE)
2.2
2.1
NSN
5985-01-186-2740
5985-01-568-9419
5985-01-149-9091
5985-01-301-5437
5985-01-063-1474
-
-
5985-01-050-7524
5985-01-383-8620
5985-01-383-8569
www.tacoantenna.com
