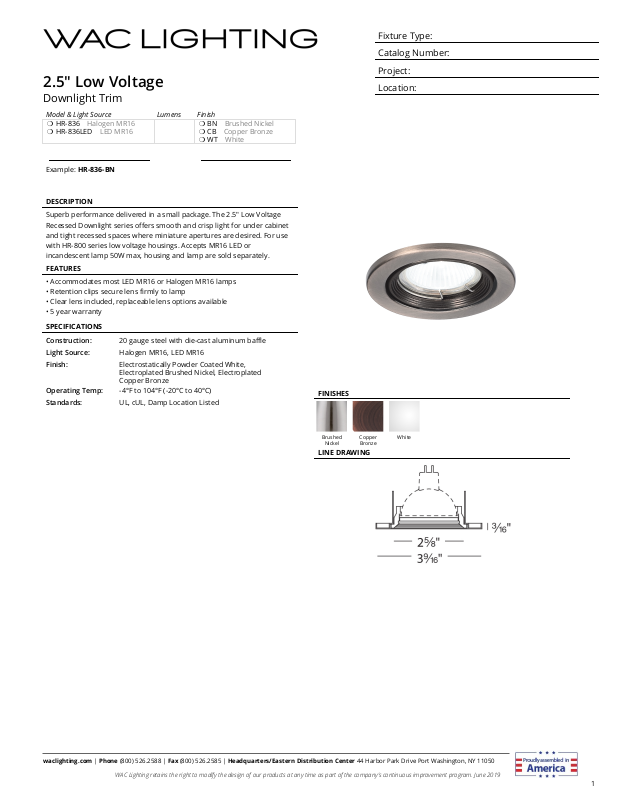

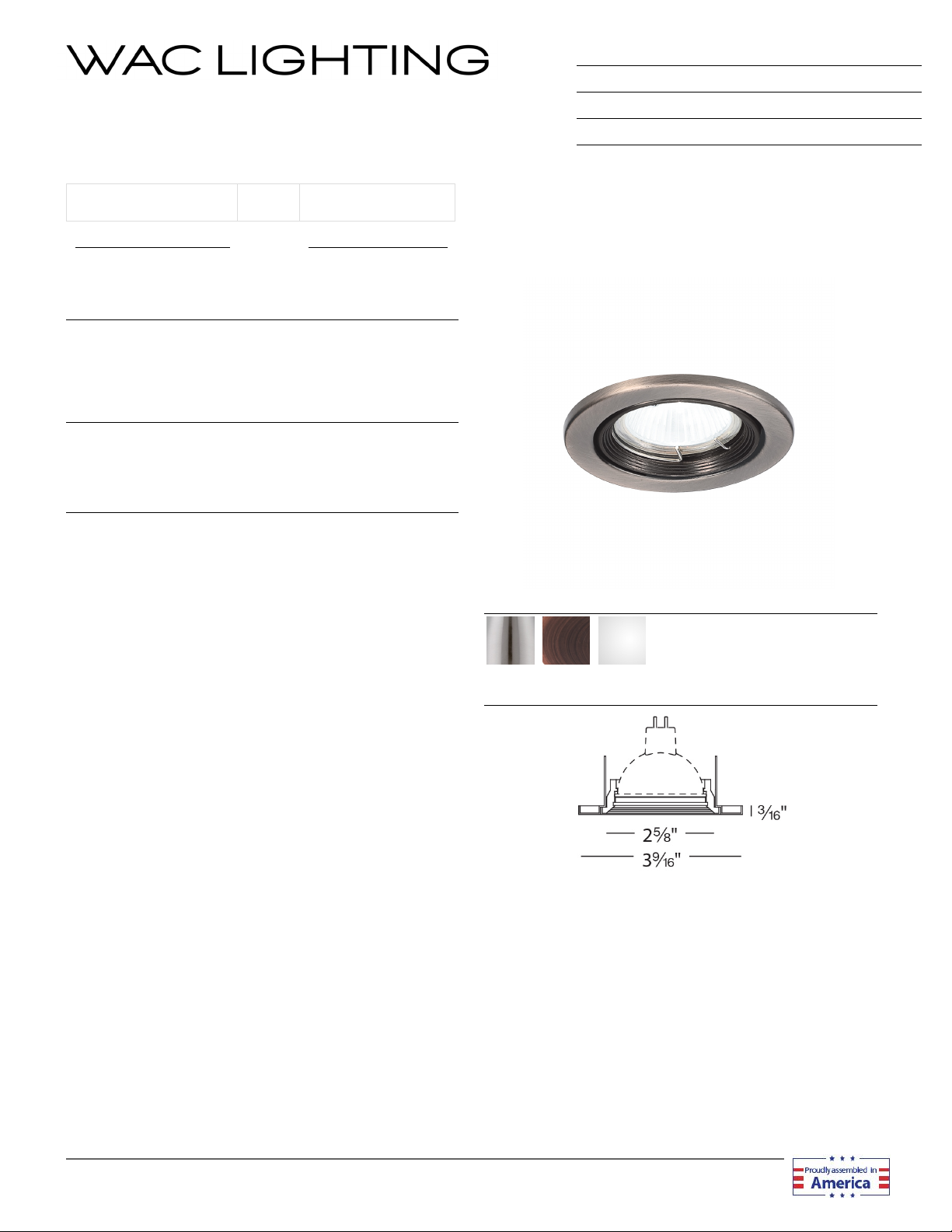

Page 1
2.5" Low Voltage
❍❍❍❍❍
Downlight Trim
Model & Light Source
HR-836
Halogen MR16 BN Brushed Nickel
HR-836LED LED MR16 CB Copper Bronze
Example: HR-836-BN
DESCRIPTION
Superb performance delivered in a small package. The 2.5" Low Voltage
Recessed Downlight series offers smooth and crisp light for under cabinet
and tight recessed spaces where miniature apertures are desired. For use
with HR-800 series low voltage housings. Accepts MR16 LED or
incandescent lamp 50W max, housing and lamp are sold separately.
FEATURES
• Accommodates most LED MR16 or Halogen MR16 lamps
• Retention clips secure lens firmly to lamp
• Clear lens included, replaceable lens options available
• 5 year warranty
SPECIFICATIONS
Construction:
Light Source:
Finish:
20 gauge steel with die-cast aluminum baffle
Halogen MR16, LED MR16
Electrostatically Powder Coated White,
Electroplated Brushed Nickel, Electroplated
Copper Bronze
Operating Temp: -4°F to 104°F (-20°C to 40°C)
Standards:
UL, cUL, Damp Location Listed
Lumens Finish
WT White
FINISHES
Fixture Type:
Catalog Number:
Project:
Location:
Brushed
Nickel
Copper
Bronze
LINE DRAWING
White
waclighting.com | Phone (800) 526.2588 | Fax (800) 526.2585 | Headquarters/Eastern Distribution Center 44 Harbor Park Drive Port Washington, NY 11050
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. June 2019
1

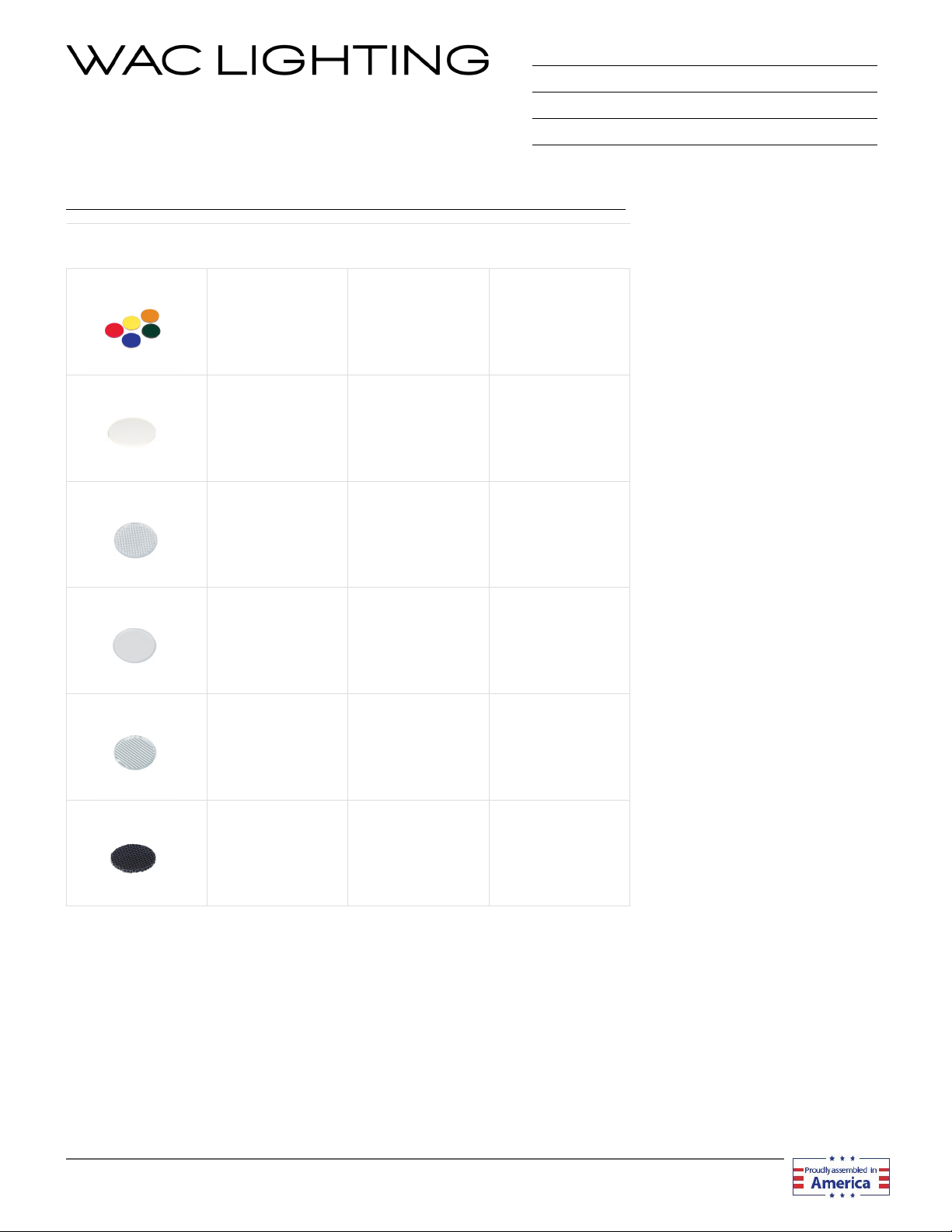

Page 2
2.5" Low Voltage
Downlight Trim
ACCESSORIES
Model Description Finish
LENS-16-AMB
LENS-16-BLU
LENS-16-GRN
LENS-16-RED
Colored Lens
Colored Lens
Colored Lens
Colored Lens
Fixture Type:
Catalog Number:
Project:
Location:
Amber
Blue
Green
Red
LENS-16-FR
LENS-16-SPR
LENS-16-UVF
LENS-16-BEL
LENS-16-HCL
Clear/Frosted Lens
Spread Lens
UV Filter lens
Beam Elongating Lens
Honeycomb Louver
Frosted
Spread Lens
Clear
Beam Elongating
Black
waclighting.com | Phone (800) 526.2588 | Fax (800) 526.2585 | Headquarters/Eastern Distribution Center 44 Harbor Park Drive Port Washington, NY 11050
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. June 2019
2

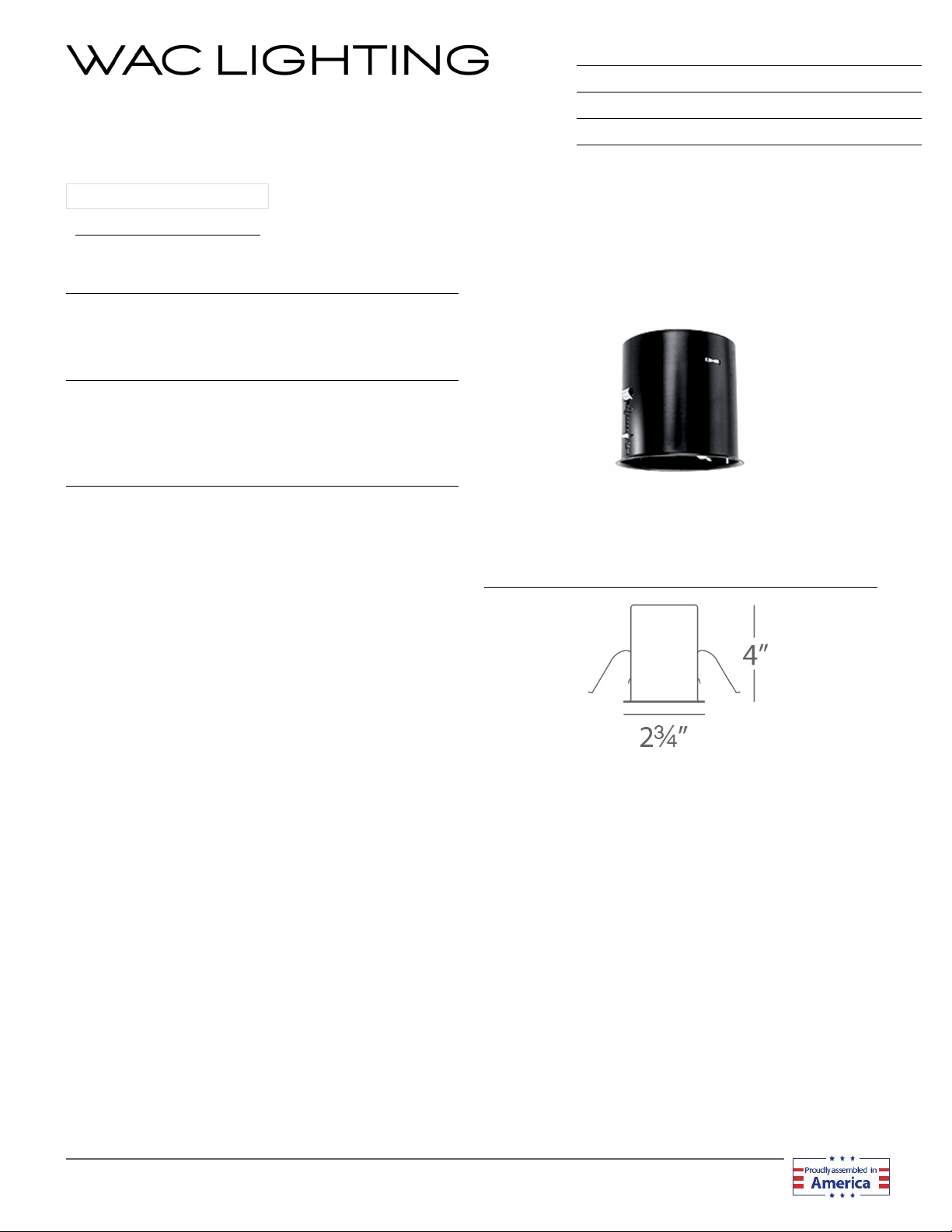

Page 3
2.5" Low Voltage
❍
Non-IC Housing for Cabinet Use
Model
HR-800
Remodel Housing
Example: HR-800
DESCRIPTION
Superb performance delivered in a small package. The 2.5" Low Voltage
Recessed Downlight series offers smooth and crisp light for under cabinet
and tight recessed spaces where miniature apertures are desired. May be
used with any WAC compatible 2.5" HR-837, HR-834, or HR-836 trims.
FEATURES
• For cabinet use only
• Total depth of 4", one of the lowest profile recessed units available
• Low profile housing
• Transformer required
• 5 year warranty
SPECIFICATIONS
Construction:
Input:
Light Source:
Mounting:
Cut Out:
Ceiling Thickness: 3/4"
Operating Temp: -4°F to 104°F (-20°C to 40°C)
Standards:
2.5in Under Cabinet
20 gauge steel
12 VAC, 50/60Hz
Halogen MR16 ( Sold Separately )
No screws, nails or hardware required. Flat
“wing” springs expand against the cut out hole
to hold fixture against the surface
3"
UL, cUL, Damp Location Listed, Non IC
LINE DRAWING
Fixture Type:
Catalog Number:
Project:
Location:
waclighting.com | Phone (800) 526.2588 | Fax (800) 526.2585 | Headquarters/Eastern Distribution Center 44 Harbor Park Drive Port Washington, NY 11050
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. June 2019
3

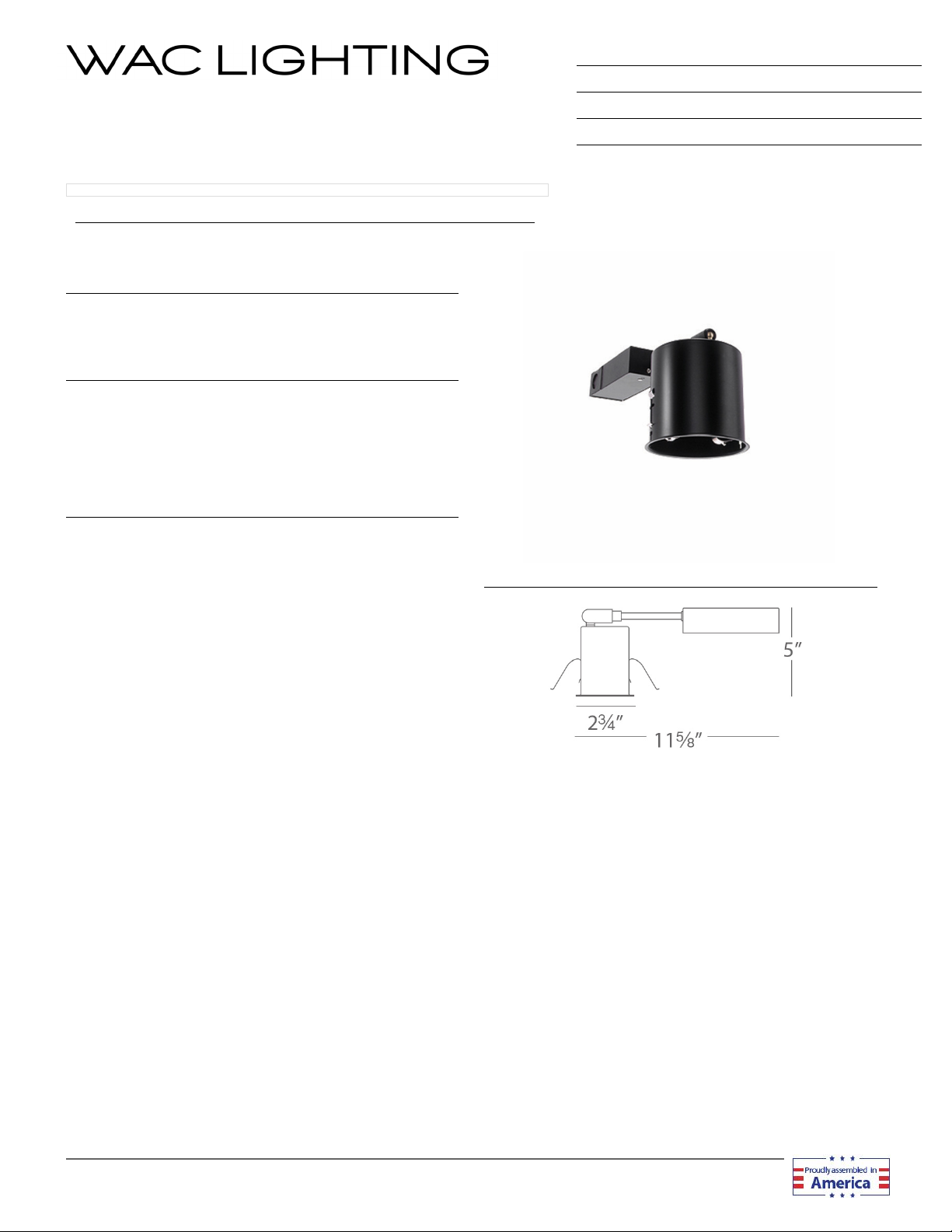

Page 4
2.5" Low Voltage
❍
Remodel Non-IC Housing Non-IC
Model & Product
HR-801
Example: HR-801
DESCRIPTION
Superb performance delivered in a small package. The 2.5" Low Voltage
Recessed Downlight series offers smooth and crisp light for under cabinet
and tight recessed spaces where miniature apertures are desired. May be
used with any WAC compatible 2.5" HR-837, HR-834, or HR-836 trims.
FEATURES
• Integral Electronic Transformer
• Advanced auto-reset, soft start and short circuit protection
• 3" clearance on all sides when insulation is present
• Suitable for chain wiring
• J-box and transformer accessible through ceiling opening
• Transformer included
• 5 year warranty
SPECIFICATIONS
Construction:
Power:
Input:
Dimming:
Light Source:
Mounting:
Cut Out:
Ceiling Thickness: 3/4"
Operating Temp: -4°F to 104°F (-20°C to 40°C)
Standards:
2.5in Low Voltage Remodel Non-IC Housing
20 gauge steel
50W
120 VAC, 50/60Hz
ELV: 100-10%
Halogen MR16 ( Sold Separately )
No screws, nails or hardware required. Flat
“wing” springs expand against the cut out hole
to hold fixture against the surface
3"
UL, cUL, Damp Location Listed, Non IC
LINE DRAWING
Fixture Type:
Catalog Number:
Project:
Location:
waclighting.com | Phone (800) 526.2588 | Fax (800) 526.2585 | Headquarters/Eastern Distribution Center 44 Harbor Park Drive Port Washington, NY 11050
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. June 2019
4

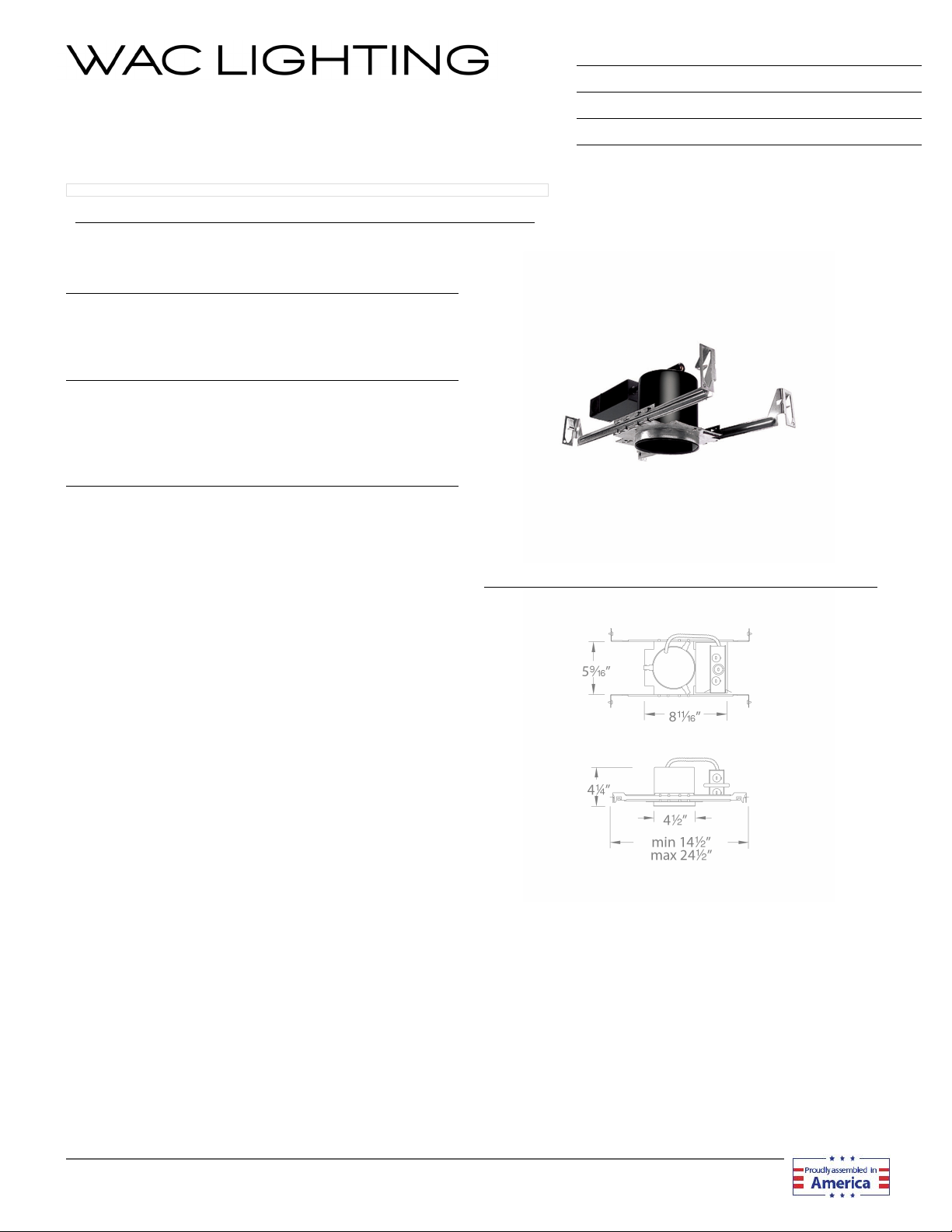

Page 5
2.5" Low Voltage
❍
New Construction Non-IC Housing
Model & Product
HR-802
Example: HR-802
DESCRIPTION
Superb performance delivered in a small package. The 2.5" Low Voltage
Recessed Downlight series offers smooth and crisp light for under cabinet
and tight recessed spaces where miniature apertures are desired. May be
used with any WAC compatible 2.5" HR-837, HR-834, or HR-836 trims.
FEATURES
• 3" clearance on all sides when insulation is present
• Total depth of 4", one of the lowest profile recessed units available
• Low profile housing
• Transformer included
• 5 year warranty
SPECIFICATIONS
Construction:
Power:
Input:
Dimming:
Light Source:
Mounting:
Cut Out:
Ceiling Thickness: 3/4"
Operating Temp: -4°F to 104°F (-20°C to 40°C)
Standards:
2.5in Low Voltage New Construction Non-IC Housing
20 gauge steel
50W
120 VAC, 50/60Hz
ELV: 100-10%
Halogen MR16
Supplied with hanger bars, adjustable from
15"-242" to accommodate various joist
construction and grid sizes.
3"
UL, cUL, Damp Location Listed, Non IC
LINE DRAWING
Fixture Type:
Catalog Number:
Project:
Location:
Powered by TCPDF (www.tcpdf.org)
waclighting.com | Phone (800) 526.2588 | Fax (800) 526.2585 | Headquarters/Eastern Distribution Center 44 Harbor Park Drive Port Washington, NY 11050
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. June 2019
5
