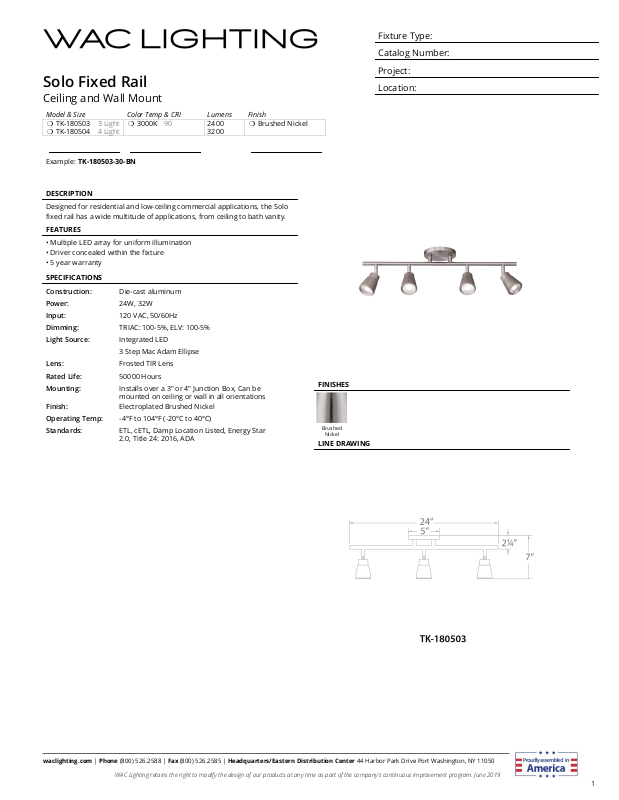

Page 1
Solo Fixed Rail
❍❍❍
❍
Ceiling and Wall Mount
Model & Size
TK-180503
TK-180504 4 Light 3200
Example: TK-180503-30-BN
DESCRIPTION
Designed for residential and low-ceiling commercial applications, the Solo
fixed rail has a wide multitude of applications, from ceiling to bath vanity.
FEATURES
• Multiple LED array for uniform illumination
• Driver concealed within the fixture
• 5 year warranty
SPECIFICATIONS
Construction:
Power:
Input:
Dimming:
Light Source:
Lens:
Rated Life:
Mounting:
Finish:
Operating Temp: -4°F to 104°F (-20°C to 40°C)
Standards:
Color Temp & CRI
3 Light 3000K 90 2400 Brushed Nickel
Die-cast aluminum
24W, 32W
120 VAC, 50/60Hz
TRIAC: 100-5%, ELV: 100-5%
Integrated LED
3 Step Mac Adam Ellipse
Frosted TIR Lens
50000 Hours
Installs over a 3" or 4" Junction Box, Can be
mounted on ceiling or wall in all orientations
Electroplated Brushed Nickel
ETL, cETL, Damp Location Listed, Energy Star
Lumens Finish
2.0, Title 24: 2016, ADA
FINISHES
Brushed
Nickel
LINE DRAWING
Fixture Type:
Catalog Number:
Project:
Location:
