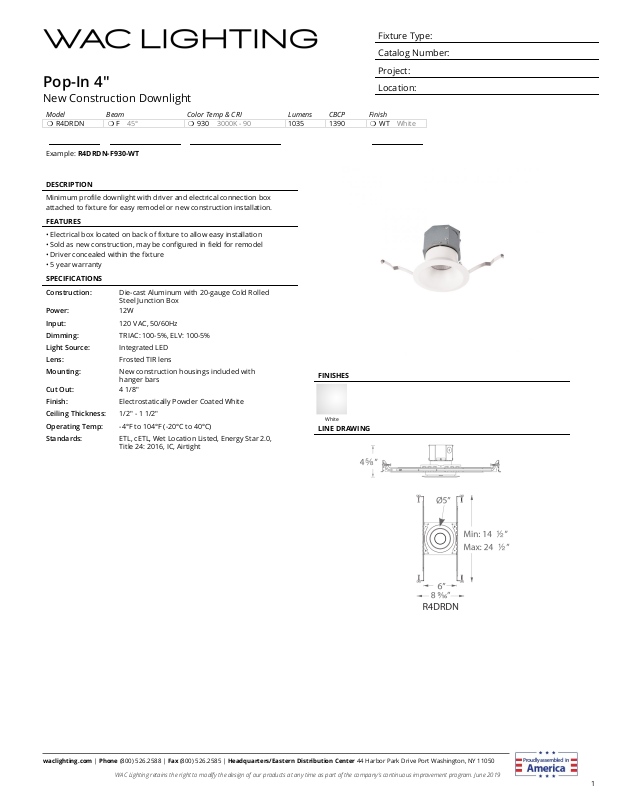

Pop-In 4"
❍❍❍
❍
New Construction Downlight
Model
R4DRDN F
Example: R4DRDN-F930-WT
DESCRIPTION
Minimum profile downlight with driver and electrical connection box
attached to fixture for easy remodel or new construction installation.
FEATURES
• Electrical box located on back of fixture to allow easy installation
• Sold as new construction, may be configured in field for remodel
• Driver concealed within the fixture
• 5 year warranty
SPECIFICATIONS
Construction:
Power:
Input:
Dimming:
Light Source:
Lens:
Mounting:
Cut Out:
Finish:
Ceiling Thickness: 1/2" - 1 1/2"
Operating Temp: -4°F to 104°F (-20°C to 40°C)
Standards:
Beam
45° 930 3000K - 90 1035 1390 WT White
Die-cast Aluminum with 20-gauge Cold Rolled
Steel Junction Box
12W
120 VAC, 50/60Hz
TRIAC: 100-5%, ELV: 100-5%
Integrated LED
Frosted TIR lens
New construction housings included with
hanger bars
4 1/8"
Electrostatically Powder Coated White
ETL, cETL, Wet Location Listed, Energy Star 2.0,
Color Temp & CRI
Title 24: 2016, IC, Airtight
Lumens CBCP
FINISHES
White
LINE DRAWING
Fixture Type:
Catalog Number:
Project:
Location:
Finish
waclighting.com | Phone (800) 526.2588 | Fax (800) 526.2585 | Headquarters/Eastern Distribution Center 44 Harbor Park Drive Port Washington, NY 11050
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. June 2019
