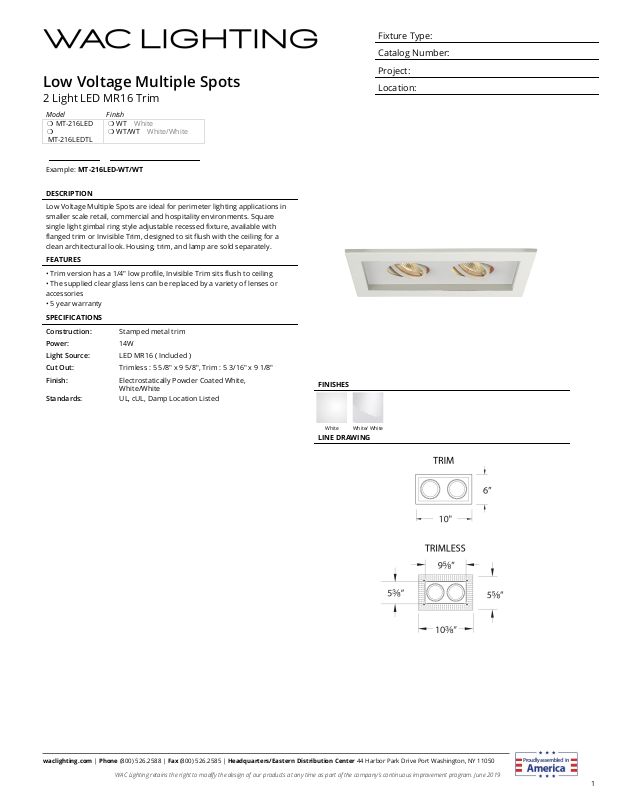

WAC Limited WACL1061 Specifications

Low Voltage Multiple Spots

❍❍❍

❍

2 Light LED MR16 Trim

Model

MT-216LED WT

MT-216LEDTL

Example: MT-216LED-WT/WT

DESCRIPTION

Low Voltage Multiple Spots are ideal for perimeter lighting applications in
smaller scale retail, commercial and hospitality environments. Square
single light gimbal ring style adjustable recessed fixture, available with
flanged trim or Invisible Trim, designed to sit flush with the ceiling for a
clean architectural look. Housing, trim, and lamp are sold separately.

FEATURES

• Trim version has a 1/4" low profile, Invisible Trim sits flush to ceiling

• The supplied clear glass lens can be replaced by a variety of lenses or
accessories

• 5 year warranty

SPECIFICATIONS

Construction:

Power:

Light Source:

Cut Out:

Finish:

Standards:

Finish

White

WT/WT White/White

Stamped metal trim

14W

LED MR16 ( Included )

Trimless : 5 5/8" x 9 5/8", Trim : 5 3/16" x 9 1/8"

Electrostatically Powder Coated White,
White/White

UL, cUL, Damp Location Listed

FINISHES

Fixture Type:

Catalog Number:

Project:

Location:

White White/ White

LINE DRAWING

waclighting.com | Phone [phone] | Fax [phone] | Headquarters/Eastern Distribution Center 44 Harbor Park Drive Port Washington, NY 11050

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. June 2019

1

Low Voltage Multiple Spots

2 Light LED MR16 Trim

ACCESSORIES

Model Description Finish

LENS-16-AMB
LENS-16-BLU
LENS-16-GRN
LENS-16-RED

Colored Lens
Colored Lens
Colored Lens
Colored Lens

Fixture Type:

Catalog Number:

Project:

Location:

Amber
Blue
Green
Red

LENS-16-FR

LENS-16-SPR

LENS-16-UVF

LENS-16-BEL

LENS-16-HCL

Clear/Frosted Lens

Spread Lens

UV Filter lens

Beam Elongating Lens

Honeycomb Louver

Frosted

Spread Lens

Clear

Beam Elongating

Black

waclighting.com | Phone [phone] | Fax [phone] | Headquarters/Eastern Distribution Center 44 Harbor Park Drive Port Washington, NY 11050

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. June 2019

2

Low Voltage Multiple Spots

❍

2 Light Housing

Model & Product

MT-216HS

Example: MT-216HS

DESCRIPTION

Low Voltage Multiple Spots are ideal for perimeter lighting applications in
smaller scale retail, commercial and hospitality environments. Square
single light gimbal ring style adjustable recessed fixture, available with
flanged trim or Invisible Trim, designed to sit flush with the ceiling for a
clean architectural look. Housing, trim, and lamp are sold separately.

FEATURES

• Electronic short circuit and overload protection with automatic reset

• Soft start to prolong lamp life

• Transformer concealed within the fixture

• 5 year warranty

SPECIFICATIONS

Construction:

Input:

Dimming:

Light Source:

Mounting:

Ceiling Thickness: 1/2" - 1"

Standards:

Low Voltage Multiple Two Light Non-IC Housing

Aluminum hardware with mouth blown etched
glass diffuser

120 VAC, 50/60Hz

ELV: 100-10%

Halogen or LED MR16

Supplied with hanger bars, adjustable from
15"-24 1/2" to accommodate various joist
construction and grid sizes

UL, cUL, Damp Location Listed, Non IC

LINE DRAWING

Fixture Type:

Catalog Number:

Project:

Location:
