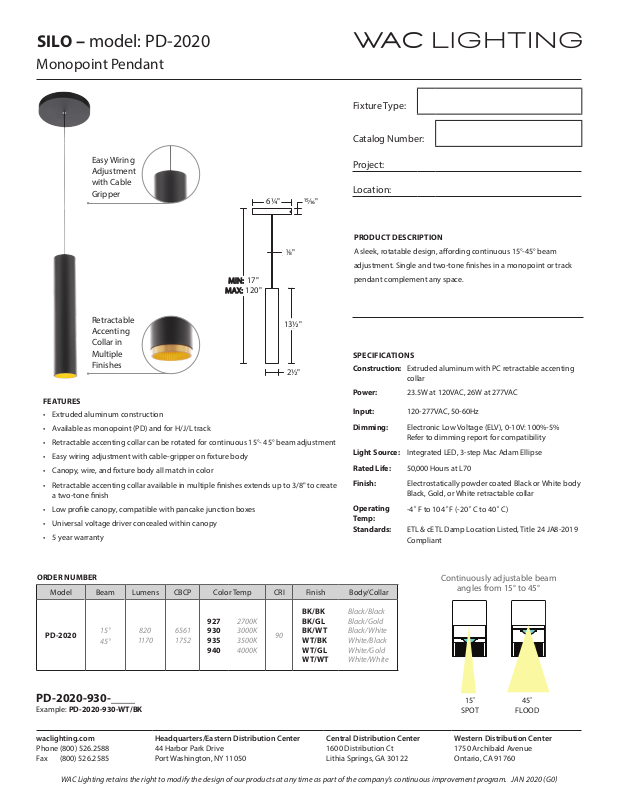

Page 1
SILO – model: PD-2020
”
12”
MIN: 15”
MAX: 120”
Monopoint Pendant
Fixture Type:
Catalog Number:
Easy Wiring
Adjustment
with Cable
Gripper
6¼" ⁄"
6¼6¼”
⁄"
17"
MIN: 15”
MAX: 120”
120"
Retractable
Accenting
13½"
12”
Collar in
Multiple
Finishes
FEATURES
• Extruded aluminum construction
• Available as monopoint (PD) and for H/J/L track
• Retractable accenting collar can be rotated for continuous 15°- 45° beam adjustment
• Easy wiring adjustment with cable-gripper on xture body
• Canopy, wire, and xture body all match in color
• Retractable accenting collar available in multiple nishes extends up to 3/8" to create
a two-tone nish
• Low prole canopy, compatible with pancake junction boxes
• Universal voltage driver concealed within canopy
• 5 year warranty
2½"
Project:
Location:
PRODUCT DESCRIPTION
A sleek, rotatable design, aording continuous 15°-45° beam
adjustment. Single and two-tone nishes in a monopoint or track
pendant complement any space.
SPECIFICATIONS
Construction: Extruded aluminum with PC retractable accenting
Power: 23.5W at 120VAC, 26W at 277VAC
Input: 120-277VAC, 50-60Hz
Dimming: Electronic Low Voltage (ELV), 0-10V: 100%-5%
Light Source: Integrated LED, 3-step Mac Adam Ellipse
Rated Life:
Finish: Electrostatically powder coated Black or White body
Operating
Temp:
Standards: ETL & cETL Damp Location Listed, Title 24 JA8-2019
collar
Refer to dimming report for compatibility
50,000 Hours at L70
Black, Gold, or White retractable collar
-4° F to 104° F (-20° C to 40° C)
Compliant
ORDER NUMBER
Model Beam Lumens CBCP Color Temp CRI Finish Body/Collar
PD-2020
PD-2020-930-____
Example: PD-2020-930-WT/BK
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JAN 2020 G0
15°
45°
927
820
1170
6561
1752
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
930
935
940
2700K
3000K
3500K
4000K
Continuously adjustable beam
angles from 15° to 45°
BK/BK
BK/GL
BK/WT
90
WT/BK
WT/GL
WT/WT
Black/Black
Black/Gold
Black/White
White/Black
White/Gold
White/White
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
15˚
SPOT
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
45˚
FLOOD
