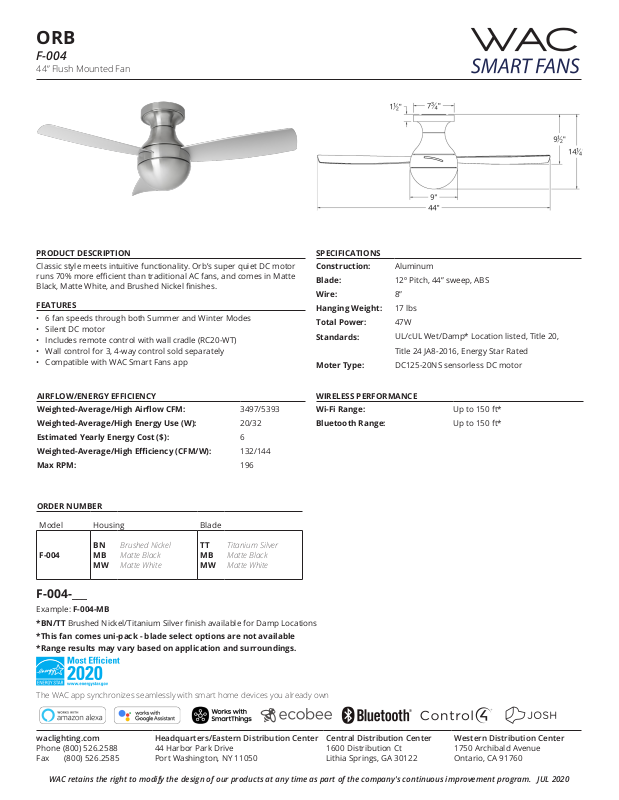

ORB
F-004
44” Flush Mounted Fan
PRODUCT DESCRIPTION
Classic style meets intuitive functionality. Orb’s super quiet DC motor
runs 70% more ecient than traditional AC fans, and comes in Matte
Black, Matte White, and Brushed Nickel nishes.
FEATURES
• 6 fan speeds through both Summer and Winter Modes
• Silent DC motor
• Includes remote control with wall cradle (RC20-WT)
• Wall control for 3, 4-way control sold separately
• Compatible with WAC Smart Fans app
AIRFLOW/ENERGY EFFICIENCY
Weighted-Average/High Airow CFM:
Weighted-Average/High Energy Use (W):
Estimated Yearly Energy Cost ($):
Weighted-Average/High Eciency (CFM/W):
Max RPM:
ORDER NUMBER
Model Housing Blade
BN
F-004
MB
MW
Brushed Nickel
Matte Black
Matte White
TT
MB
MW
3497/5393
20/32
6
132/144
196
Titanium Silver
Matte Black
Matte White
SPECIFICATIONS
Construction:
Blade:
Wire:
Hanging Weight:
Total Power:
Standards:
Moter Type:
WIRELESS PERFORMANCE
Wi-Fi Range:
Bluetooth Range:
Aluminum
12º Pitch, 44” sweep, ABS
8”
17 lbs
47W
UL/cUL Wet/Damp* Location listed, Title 20,
Title 24 JA8-2016, Energy Star Rated
DC125-20NS sensorless DC motor
Up to 150 ft*
Up to 150 ft*
F-004-___
Example: F-004-MB
*BN/TT Brushed Nickel/Titanium Silver finish available for Damp Locations
*This fan comes uni-pack - blade select options are not available
*Range results may vary based on application and surroundings.
The WAC app synchronizes seamlessly with smart home devices you already own
WAC retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUL 2020
Page 2
ORB
F-004
44” Flush Mounted Fan
OPTIONAL ACCESSORIES
Bluetooth Wall Control
Bluetooth Remote Control
Examples: Wall Control - WC20-WT, Remote Control - RC20-WT
WC20- WT White
RC20- WT White
Control fan speed and light
brightness, and switch between
Summer and Winter Modes.
Additional Wall Controls can be
purchased separately for multiple
location control.
Control fan speed and light
brightness, and switch between
Summer and Winter Modes.
Compatible with WAC Smart Fans.
Includes easy-to-install wall cradle
and batteries.
