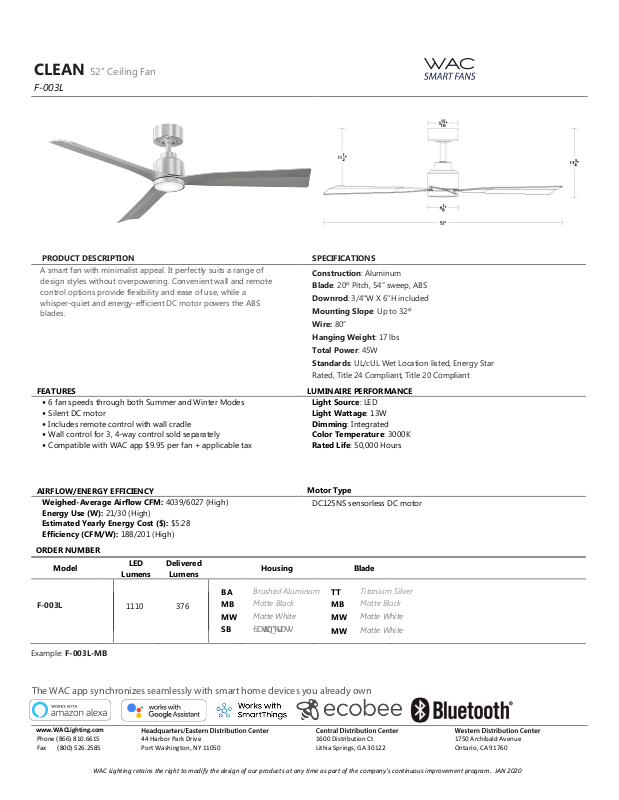

CLEAN 52” Ceiling Fan
FEATURES
F-003L
PRODUCT DESCRIPTION
A smart fan with minimalist appeal. It perfectly suits a range of
design styles without overpowering. Convenient wall and remote
control options provide flexibility and ease of use, while a
whisper-quiet and energy-efficient DC motor powers the ABS
blades.
•
6 fan speeds through both Summer and Winter Modes
•
Silent DC motor
•
Includes remote control with wall cradle
•
Wall control for 3, 4-way control sold separately
•
Compatible with WAC app $9.95 per fan + applicable tax
AIRFLOW/ENERGY EFFICIENCY
Weighed-Average Airflow CFM: 4039/6027 (High)
Energy Use (W): 21/30 (High)
Estimated Yearly Energy Cost ($): $5.28
Efficiency (CFM/W): 188/201 (High)
ORDER NUMBER
Model
F-003L
LED
Lumens
1110 376
Delivered
Lumens
BA
MB
MW
SB
Brushed Aluminum
Matte Black
Matte White
6DWLQ%UDVV
SPECIFICATIONS
Construction: Aluminum
Blade: 20º Pitch, 54” sweep, ABS
Downrod: 3/4"W X 6"H included
Mounting Slope: Up to 32º
Wire: 80”
Hanging Weight: 17 lbs
Total Power: 45W
Standards: UL/cUL Wet Location listed, Energy Star
Rated, Title 24 Compliant, Title 20 Compliant
LUMINAIRE PERFORMANCE
Light Source: LED
Light Wattage: 13W
Dimming: Integrated
Color Temperature: 3000K
Rated Life: 50,000 Hours
Motor Type
DC125NS sensorless DC motor
Housing Blade
Titanium Silver
TT
Matte Black
MB
Matte White
MW
Matte White
MW
Example: F-003L-MB
The WAC app synchronizes seamlessly with smart home devices you already own
www.WACLighting.com
Phone (866) 810.6615
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JAN 2020
44 Harbor Park Drive
1600 Distribution Ct
1750 Archibald Avenue
Page 2
CLEAN 52” Ceiling Fan
F-003L
OPTIONAL ACCESSORIES
OPTIONAL ACCESSORIES
Bluetooth Wall Control
Bluetooth Remote Control
WC20 WT White
RC20
WT White
Control fan speed and light brightness, and switch
between Summer and Winter Modes. Additional Wall
Controls can be purchased separately for multiple
location control.
Control fan speed and light brightness, and switch
between Summer and Winter Modes. Compatible with
WAC Smart Fans. Includes easy-to-install wall cradle
and batteries.
Downrod
Downrod Couplers
Sloped Ceiling Kit
XF-12
XF-18
XF-24
XF-36
XF-48
XF-60
XF-72
XF-I
12in
18in
24in
36in
48in
60in
72in
BA
%N
MB
MW
Brushed Aluminum
Brushed Nickel
Matte Black
Matte White
All our downrods are 1” O.D. and are threaded on the
motor end to create an extra layer of security and
allow for adjustments in the field.
Connects two downrods together.
Designed to accommodate buildings with steeper
sloped ceilings up to 45
o
or 12/12 pitch.
XF-SCK
Examples: Wall Control - WC20-WT, Remote Control - RC20-WT, Downrod - XF-12-BN, Downrod Coupler - XF-I-MB, Sloped Ceiling Kit - XF-SCK-MW
68**(67(''2:152'+(,*+786$*(
Ceiling Height 15’ 14’ 13’ 12’ 11’ 10’ 9’
Downrod 72” 60” 48” 36” 24” 18” 12”
SLOPED CEILING DEGREE CONVERSION CHART
Degree 4-8
Ceiling Slope
Pitch
1/12
pitch
o
9-13
2/12
pitch
o
14-17o18-21o 22-25o 26-29o 30-32o 33-35o 36-38o 39-41o 42-44o 45o
3/12
pitch
4/12
pitch
5/12
pitch
6/12
pitch
7/12
pitch
8/12
pitch
9/12
pitch
10/12
pitch
11/12
pitch
Supplied mounting brackets allow mounting on ceiling slopes up to 30° (7/12 pitch). Optional slope kit allows mounting on ceilings up to 45°
(12/12 pitch). The receiver will mount inside canopy up to 45°.
127(Recommended maximum downrod length of 72” with 80” lead wire
