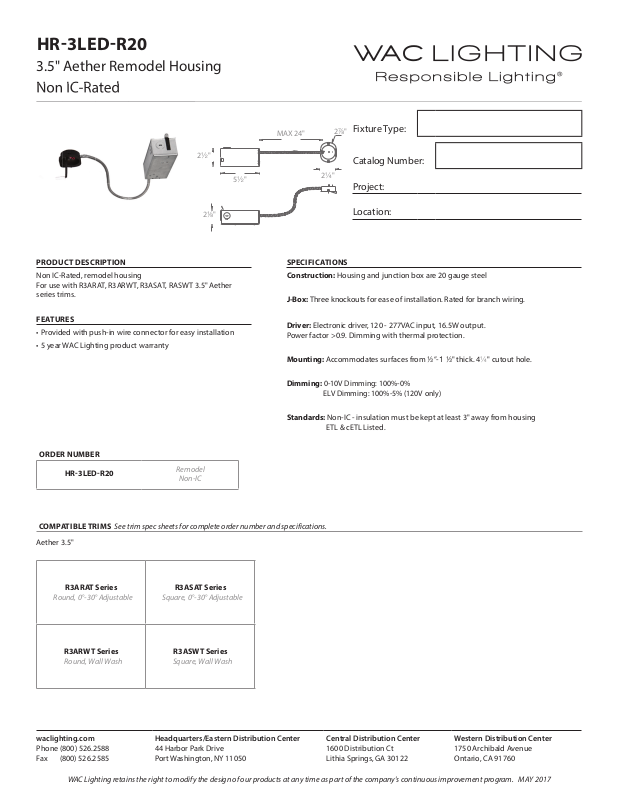

HR3LEDR20
3.5" Aether Remodel Housing
Non IC-Rated
MAX 24"
Fixture Type:
2d"
2½"
28"
PRODUCT DESCRIPTION
Non IC-Rated, remodel housing
For use with R3ARAT, R3ARWT, R3ASAT, RASWT 3.5" Aether
series trims.
FEATURES
• Provided with push-in wire connector for easy installation
• 5 year WAC Lighting product warranty
5½"
Catalog Number:
2¼"
Project:
Location:
SPECIFICATIONS
Construction: Housing and junction box are 20 gauge steel
J-Box: Three knockouts for ease of installation. Rated for branch wiring.
Driver: Electronic driver, 120 - 277VAC input, 16.5W output.
Power factor >0.9. Dimming with thermal protection.
Mounting: Accommodates surfaces from 2”-1 2" thick. 4
Dimming:
ELV Dimming: 100%-5% (120V only)
Standards: Non-IC - insulation must be kept at least 3" away from housing
ETL & cETL Listed.
0-10V Dimming: 100%-0%
¼" cutout hole.
ORDER NUMBER
HR3LEDR20
COMPATIBLE TRIMS See trim spec sheets for complete order number and specifications.
Aether 3.5"
R3ARAT Series
Round, 0°-30° Adjustable
R3ARWT Series
Round, Wall Wash
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
Remodel
Non-IC
R3ASAT Series
Square, 0°-30° Adjustable
R3ASWT Series
Square, Wall Wash
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. MAY 2017
