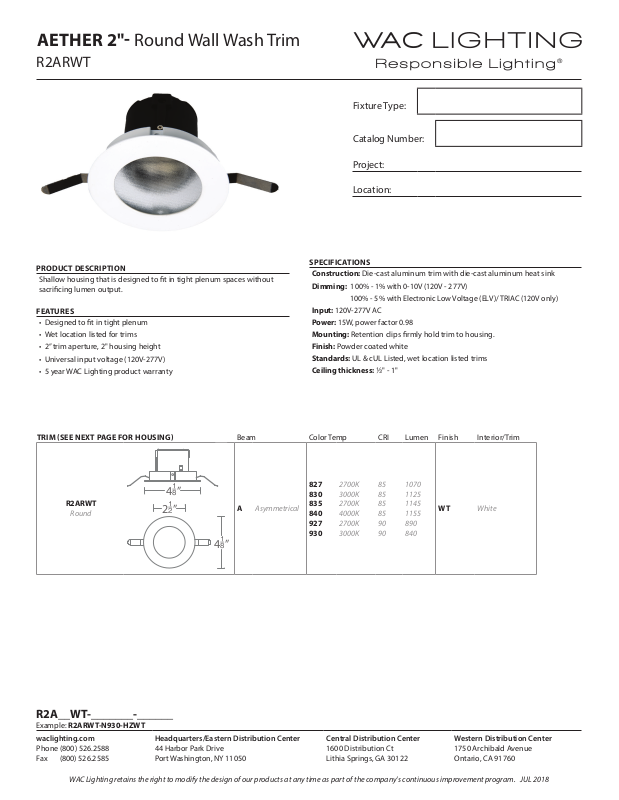

Page 1

AETHER 2" Round Wall Wash Trim

R2ARWT

Fixture Type:

Catalog Number:

Project:

Location:

PRODUCT DESCRIPTION

Shallow housing that is designed to t in tight plenum spaces without sacricing lumen output.

FEATURES

• Designed to t in tight plenum

• Wet location listed for trims

• 2” trim aperture, 2" housing height

• Universal input voltage (120V-277V)

• 5 year WAC Lighting product warranty

TRIM SEE NEXT PAGE FOR HOUSING Beam Color Temp CRI Lumen Finish Interior/Trim

4*”

R2ARWT

Round

2@”

A Asymmetrical

SPECIFICATIONS

Construction: Die-cast aluminum trim with die-cast aluminum heat sink

Dimming:

100% - 5% with Electronic Low Voltage (ELV)/ TRIAC (120V only)

Input:

Power:

Mounting: Retention clips rmly hold trim to housing.

Finish: Powder coated white

Standards: UL & cUL Listed, wet location listed trims Ceiling thickness: 2" - 1"

827 830 835 840 927 930

100% - 1% with 0-10V (120V - 277V)

120V-277V AC

15W, power factor 0.98

2700K 3000K 2700K 4000K 2700K 3000K

1070

1125

1145

1155

890

840

WT White

4*”

R2A__WT-_______-______

Example: R2ARWT-N930-HZWT

waclighting.com

Phone (800) 526.2588 Fax (800) 526.2585

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUL 2018

Headquarters/Eastern Distribution Center

44 Harbor Park Drive Port Washington, NY 11050

Central Distribution Center

1600 Distribution Ct Lithia Springs, GA 30122

Western Distribution Center

1750 Archibald Avenue Ontario, CA 91760

Page 2

AETHER  Housing

HR-2LED-H13A

HOUSING Model

2”

3S”

HR-2LED-H13A

New Construction IC-rated, Airtight

HR-2LED-H13____

Example: HR-2LED-H13A

8X”

11W”

14A”

Min 92”

Max 24 2"

HR-2LED-H13AC

New Construction IC-rated, Airtight Chicago Plenum
