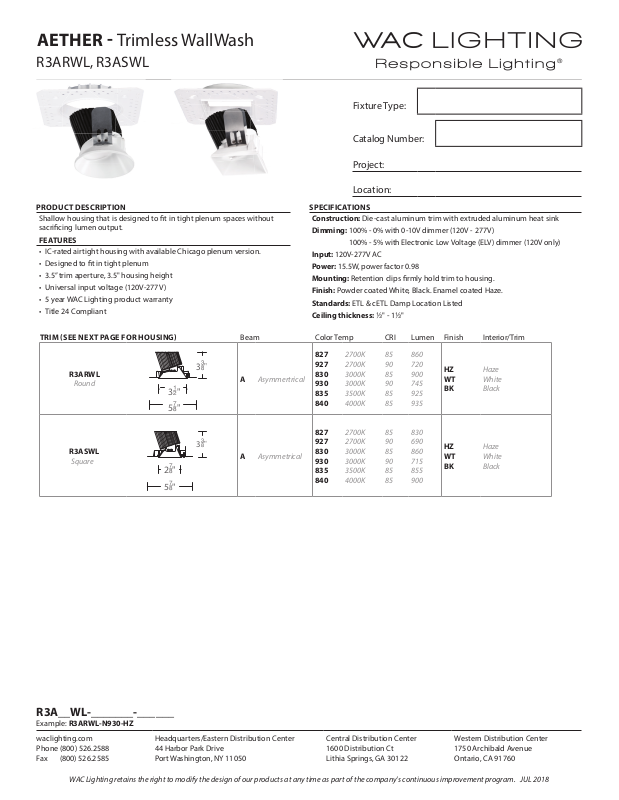

Page 1
AETHER Trimless WallWash
R3ARWL, R3ASWL
PRODUCT DESCRIPTION
Shallow housing that is designed to t in tight plenum spaces without
sacri cing lumen output.
FEATURES
• IC-rated airtight housing with available Chicago plenum version.
• Designed to t in tight plenum
• 3.5” trim aperture, 3.5" housing height
• Universal input voltage (120V-277V)
• 5 year WAC Lighting product warranty
• Title 24 Compliant
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFICATIONS
Construction: Die-cast aluminum trim with extruded aluminum heat sink
Dimming:
100% - 5% with Electronic Low Voltage (ELV) dimmer (120V only)
Input:
Power:
Mounting: Retention clips rmly hold trim to housing.
Finish: Powder coated White, Black. Enamel coated Haze.
Standards: ETL & cETL Damp Location Listed
Ceiling thickness: 2" - 12"
100% - 0% with 0-10V dimmer (120V - 277V)
120V-277V AC
15.5W, power factor 0.98
TRIM SEE NEXT PAGE FOR HOUSING Beam Color Temp CRI Lumen Finish Interior/Trim
R3ARWL
Round
R3ASWL
Square
2D"
5D"
3@"
5D"
3A"
3A"
A Asymmertrical
A Asymmetrical
827
927
830
930
835
840
827
927
830
930
835
840
2700K
2700K
3000K
3000K
3500K
4000K
2700K
2700K
3000K
3000K
3500K
4000K
85
860
90
720
85
900
90
745
85
925
85
935
85
830
90
690
85
860
90
715
85
855
85
900
HZ
WT
BK
HZ
WT
BK
Haze
White
Black
Haze
White
Black
R3A__WL-_______-______
Example: R3ARWL-N930-HZ
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUL 2018
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Page 2
AETHER Housing
HR-3LED-H17A
HOUSING Model
32"
Shown with open square white trim
HR-3LED-H17____
Example: HR-3LED-H17A
4w"
4s"
13d"
162"
92" Min 142"
Max 212"
HR-3LED-H17A
HR-3LED-H17AC
New Construction
IC-rated, Airtight
New Construction
IC-rated, Airtight
Chicago Plenum
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUL 2018
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
