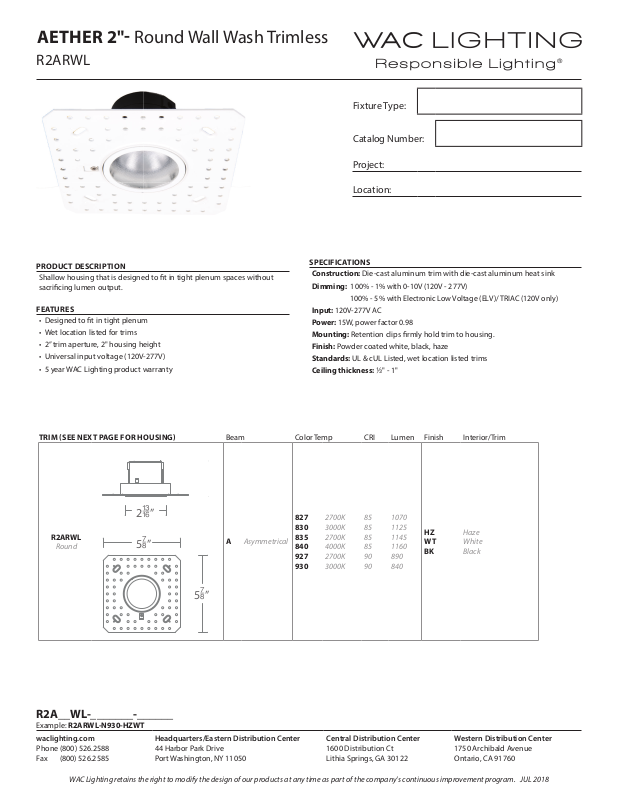

AETHER 2" Round Wall Wash Trimless
R2ARWL
Fixture Type:
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
Shallow housing that is designed to t in tight plenum spaces without
sacri cing lumen output.
FEATURES
• Designed to t in tight plenum
• Wet location listed for trims
• 2” trim aperture, 2" housing height
• Universal input voltage (120V-277V)
• 5 year WAC Lighting product warranty
TRIM SEE NEXT PAGE FOR HOUSING Beam Color Temp CRI Lumen Finish Interior/Trim
2M”
R2ARWL
Round
5D”
A Asymmetrical
SPECIFICATIONS
Construction: Die-cast aluminum trim with die-cast aluminum heat sink
Dimming:
100% - 5% with Electronic Low Voltage (ELV)/ TRIAC (120V only)
Input:
Power:
Mounting: Retention clips rmly hold trim to housing.
Finish: Powder coated white, black, haze
Standards: UL & cUL Listed, wet location listed trims
Ceiling thickness: 2" - 1"
827
830
835
840
927
930
100% - 1% with 0-10V (120V - 277V)
120V-277V AC
15W, power factor 0.98
2700K
3000K
2700K
4000K
2700K
3000K
85
1070
85
1125
85
1145
85
1160
90
890
90
840
HZ
WT
BK
Haze
White
Black
R2A__WL-_______-______
Example: R2ARWL-N930-HZWT
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUL 2018
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
5D”
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Page 2
AETHER Housing
HR-2LED-H13A
HOUSING Model
2”
3S”
HR-2LED-H13A
New Construction
IC-rated, Airtight
HR-2LED-H13____
Example: HR-2LED-H13A
8X”
11W”
14A”
Min 92”
Max 24 2"
HR-2LED-H13AC
New Construction
IC-rated, Airtight
Chicago Plenum
