Page 1

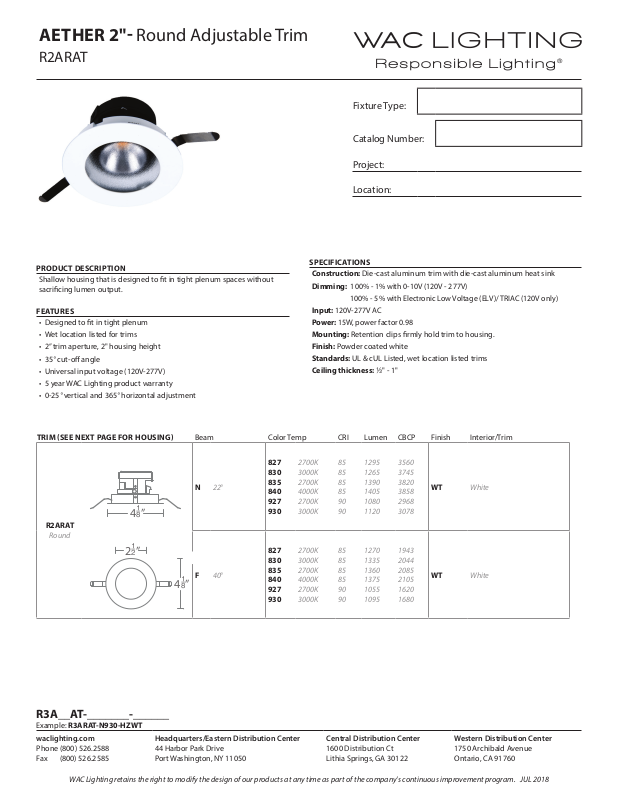

AETHER 2" Round Adjustable Trim
R2ARAT
Fixture Type:
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
Shallow housing that is designed to t in tight plenum spaces without
sacricing lumen output.
FEATURES
• Designed to t in tight plenum
• Wet location listed for trims
• 2” trim aperture, 2" housing height
• 35° cut-o angle
• Universal input voltage (120V-277V)
• 5 year WAC Lighting product warranty
• 0-25° vertical and 365° horizontal adjustment
TRIM SEE NEXT PAGE FOR HOUSING Beam Color Temp CRI Lumen CBCP Finish Interior/Trim
827
830
N 22°
4*”
R2ARAT
Round
2@”
F 40°
4*”
835
840
927
930
827
830
835
840
927
930
SPECIFICATIONS
Construction: Die-cast aluminum trim with die-cast aluminum heat sink
Dimming:
100% - 5% with Electronic Low Voltage (ELV)/ TRIAC (120V only)
Input:
Power:
Mounting: Retention clips rmly hold trim to housing.
Finish: Powder coated white
Standards: UL & cUL Listed, wet location listed trims
Ceiling thickness: 2" - 1"
2700K
3000K
2700K
4000K
2700K
3000K
2700K
3000K
2700K
4000K
2700K
3000K
100% - 1% with 0-10V (120V - 277V)
120V-277V AC
15W, power factor 0.98
85
1295
85
1265
85
1390
85
1405
90
1080
90
1120
85
1270
85
1335
85
1360
85
1375
90
1055
90
1095
3560
3745
3820
3858
2968
3078
1943
2044
2085
2105
1620
1680
WT White
WT White
R3A__AT-_______-______
Example: R3ARAT-N930-HZWT
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUL 2018
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Page 2
AETHER Housing
HR-2LED-H13A
HOUSING Model
2”
3S”
HR-2LED-H13A
New Construction
IC-rated, Airtight
HR-2LED-H13____
Example: HR-2LED-H13A
8X”
11W”
14A”
Min 92”
Max 24 2"
HR-2LED-H13AC
New Construction
IC-rated, Airtight
Chicago Plenum
