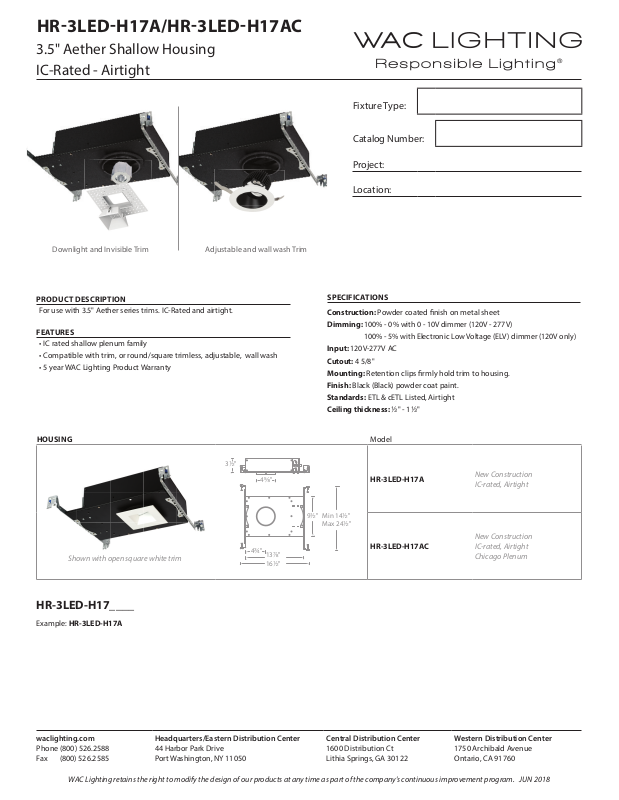

Page 1
HR3LEDH17A/HR3LEDH17AC
3.5" Aether Shallow Housing
IC-Rated - Airtight
Downlight and Invisible Trim Adjustable and wall wash Trim
Fixture Type:
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
For use with 3.5" Aether series trims. IC-Rated and airtight.
FEATURES
• IC rated shallow plenum family
• Compatible with trim, or round/square trimless, adjustable, wall wash
• 5 year WAC Lighting Product Warranty
HOUSING Model
32"
4s"
4w"
Shown with open square white trim
13d"
162"
SPECIFICATIONS
Construction: Powder coated nish on metal sheet
Dimming:
100% - 5% with Electronic Low Voltage (ELV) dimmer (120V only)
Input:
Cutout: 4 5/8"
Mounting: Retention clips rmly hold trim to housing.
Finish: Black (Black) powder coat paint.
Standards: ETL & cETL Listed, Airtight
Ceiling thickness: 2" - 12"
92" Min 142"
Max 242"
100% - 0% with 0 - 10V dimmer (120V - 277V)
120V-277V AC
HR-3LED-H17A
HR-3LED-H17AC
New Construction
IC-rated, Airtight
New Construction
IC-rated, Airtight
Chicago Plenum
HR-3LED-H17____
Example: HR-3LED-H17A
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUN 2018
