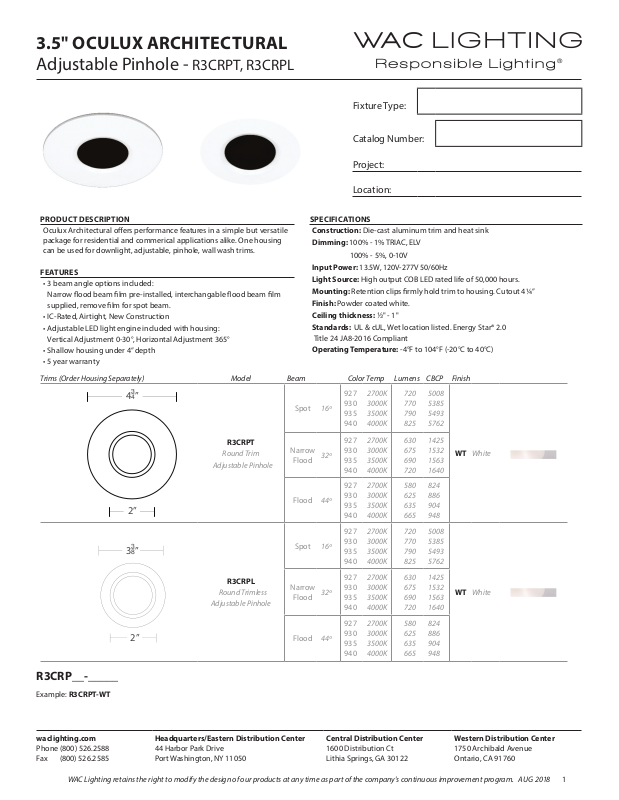

Page 1
3.5" OCULUX ARCHITECTURAL
4
W
2”
A
2”
Adjustable Pinhole -
PRODUCT DESCRIPTION
Oculux Architectural o ers performance features in a simple but versatile
package for residential and commerical applications alike. One housing
can be used for downlight, adjustable, pinhole, wall wash trims.
FEATURES
• 3 beam angle options included:
Narrow ood beam lm pre-installed, interchangable ood beam lm
supplied, remove lm for spot beam.
• IC-Rated, Airtight, New Construction
• Adjustable LED light engine included with housing:
Vertical Adjustment 0-30°, Horizontal Adjustment 365°
• Shallow housing under 4” depth
• 5 year warranty
R3CRPT, R3CRPL
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFICATIONS
Construction: Die-cast aluminum trim and heat sink
Dimming: 100% - 1% TRIAC, ELV
100% - 5%, 0-10V
Input Power:
Light Source: High output COB LED rated life of 50,000 hours.
Mounting: Retention clips rmly hold trim to housing. Cutout 4¼ ”
Finish: Powder coated white.
Ceiling thickness: 2" - 1"
Standards: UL & cUL, Wet location listed. Energy Star® 2.0
Title 24 JA8-2016 Compliant
Operating Temperature: -4°F to 104°F (-20°C to 40°C)
13.5W, 120V-277V 50/60Hz
Trims (Order Housing Separately)
3
Model Beam Color Temp Lumens CBCP Finish
720
770
790
825
630
675
690
720
580
625
635
665
720
770
790
825
630
675
690
720
580
625
635
665
R3CRPT
Round Trim
Adjustable Pinhole
R3CRPL
Round Trimless
Adjustable Pinhole
Spot
Narrow
Flood
Flood
Spot
Narrow
Flood
Flood
16º
32º
44º
16º
32º
44º
927
930
935
940
927
930
935
940
927
930
935
940
927
930
935
940
927
930
935
940
927
930
935
940
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
5008
5385
5493
5762
1425
1532
1563
1640
824
886
904
948
5008
5385
5493
5762
1425
1532
1563
1640
824
886
904
948
WT White
WT White
R3CRP__-_____
Example: R3CRPT-WT
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. AUG 2018
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
1
Page 2
3.5" OCULUX ARCHITECTUAL
3
M
@
9
@”min
”
6
V
0”
2
N
3
X
Adjustable Pinhole -
R3CRPT, R3CRPL
Housings (Required) - Order separately from trims
1
1
Example: R3CRN-11-927
FEATURES
• Adjustable LED light engine included with housing:
Vertical Adjustment 0-30°, Horizontal Adjustment 365°
• Trim or trimless with die-cast spackle frame included.
• Accepts one optional honeycomb louver or optical lens.
“~1”
max
Model Color Temp Input
R3CRN11
IC-Rated, Airtight
New Construction
927 2700K
930 3000K
935 3500K
940 4000K
GLARE CONTROL ACCESSORIES sold separately
LENS-16 HCL Honeycomb Louver
LENS ACCESSORIES sold separately
AMB
LENS-16
RED
FR
SPR
BEL
120V - 277V
Amber
Red
Frosted
Spread
Beam Elongating
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. AUG 2018 2
