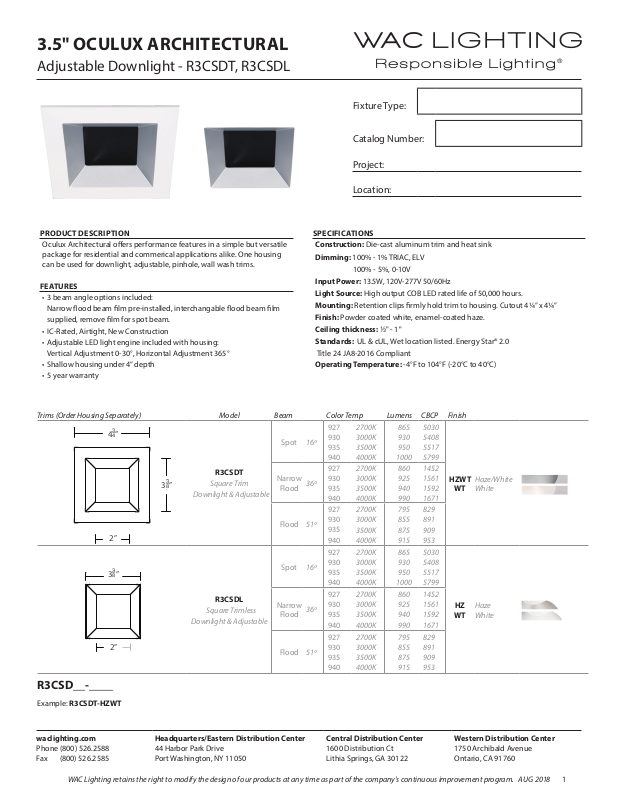

Page 1
3.5" OCULUX ARCHITECTURAL
4
W
3
A
2”
3
A
2”
Adjustable Downlight - R3CSDT, R3CSDL
Fixture Type:
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
Oculux Architectural o ers performance features in a simple but versatile
package for residential and commerical applications alike. One housing
can be used for downlight, adjustable, pinhole, wall wash trims.
FEATURES
• 3 beam angle options included:
Narrow ood beam lm pre-installed, interchangable ood beam lm
supplied, remove lm for spot beam.
• IC-Rated, Airtight, New Construction
• Adjustable LED light engine included with housing:
Vertical Adjustment 0-30°, Horizontal Adjustment 365°
• Shallow housing under 4” depth
• 5 year warranty
Trims (Order Housing Separately)
Model Beam Color Temp Lumens CBCP Finish
R3CSDT
Square Trim
Downlight & Adjustable
R3CSDL
Square Trimless
Downlight & Adjustable
Spot 16º
Narrow
Flood
Flood 51º
Spot 16º
Narrow
Flood
Flood 51º
SPECIFICATIONS
Construction: Die-cast aluminum trim and heat sink
Dimming: 100% - 1% TRIAC, ELV
100% - 5%, 0-10V
Input Power:
Light Source: High output COB LED rated life of 50,000 hours.
Mounting: Retention clips rmly hold trim to housing. Cutout 4¼ ” x 4 ¼ ”
Finish: Powder coated white, enamel-coated haze.
Ceiling thickness: 2" - 1"
Standards: UL & cUL, Wet location listed. Energy Star® 2.0
Title 24 JA8-2016 Compliant
Operating Temperature: -4°F to 104°F (-20°C to 40°C)
927
930
935
940
927
930
36º
935
940
927
930
935
940
927
930
935
940
927
930
36º
935
940
927
930
935
940
13.5W, 120V-277V 50/60Hz
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
865
930
950
1000
860
925
940
990
795
855
875
915
865
930
950
1000
860
925
940
990
795
855
875
915
5030
5408
5517
5799
1452
1561
1592
1671
829
891
909
953
5030
5408
5517
5799
1452
1561
1592
1671
829
891
909
953
HZWTWTHaze/White
White
HZWTHaze
White
R3CSD__-____
Example: R3CSDT-HZWT
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. AUG 2018
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
1
Page 2
3.5" OCULUX ARCHITECTURAL
3
M
@
9
@
” max
6
V
3
Adjustable Downlight - R3CSDT, R3CSDL
Housings (Required) - Order separately from trims
X
Example: R3CSN-11-927
FEATURES
• Adjustable LED light engine included with housing:
Vertical Adjustment 0-30°, Horizontal Adjustment 365°
• Trim or trimless with die-cast spackle frame included.
• Accepts one optional honeycomb louver or optical lens.
” min
“~1”
Model Color Temp Input
R3CSN11
IC-Rated, Airtight
New Construction
927 2700K
930 3000K
935 3500K
940 4000K
GLARE CONTROL ACCESSORIES sold separately
LENS-16 HCL Honeycomb Louver
LENS ACCESSORIES sold separately
LENS-16
120V - 277V
AMB
RED
FR
SPR
BEL
Amber
Red
Frosted
Spread
Beam Elongating
