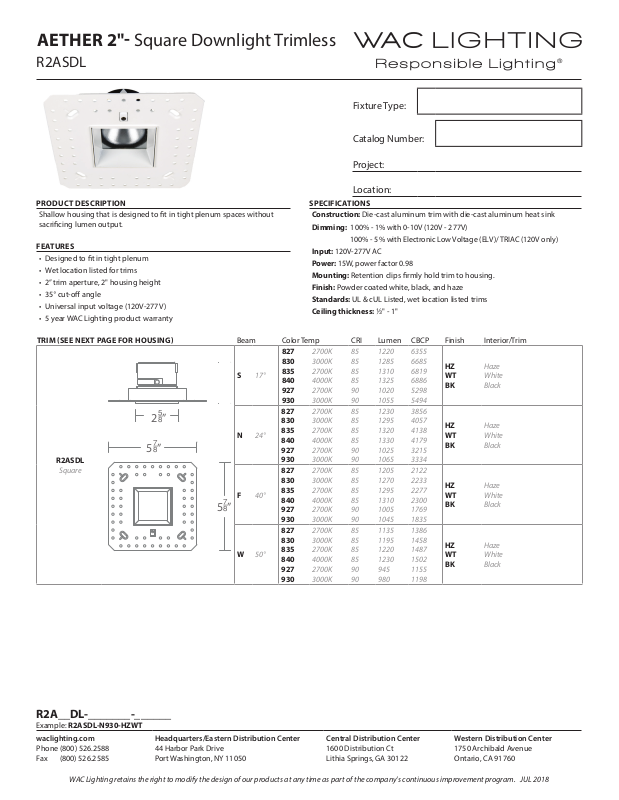

AETHER 2" Square Downlight Trimless
R2ASDL
PRODUCT DESCRIPTION
Shallow housing that is designed to t in tight plenum spaces without
sacricing lumen output.
FEATURES
• Designed to t in tight plenum
• Wet location listed for trims
• 2” trim aperture, 2" housing height
• 35° cut-o angle
• Universal input voltage (120V-277V)
• 5 year WAC Lighting product warranty
SPECIFICATIONS
Construction: Die-cast aluminum trim with die-cast aluminum heat sink
Dimming:
100% - 5% with Electronic Low Voltage (ELV)/ TRIAC (120V only)
Input:
Power:
Mounting: Retention clips rmly hold trim to housing.
Finish: Powder coated white, black, and haze
Standards: UL & cUL Listed, wet location listed trims
Ceiling thickness: 2" - 1"
Fixture Type:
Catalog Number:
Project:
Location:
100% - 1% with 0-10V (120V - 277V)
120V-277V AC
15W, power factor 0.98
TRIM SEE NEXT PAGE FOR HOUSING Beam Color Temp CRI Lumen CBCP Finish Interior/Trim
827
R2ASDL
Square
2S”
5D”
5D”
S 17°
N 24°
F 40°
W 50°
830
835
840
927
930
827
830
835
840
927
930
827
830
835
840
927
930
827
830
835
840
927
930
2700K
3000K
2700K
4000K
2700K
3000K
2700K
3000K
2700K
4000K
2700K
3000K
2700K
3000K
2700K
4000K
2700K
3000K
2700K
3000K
2700K
4000K
2700K
3000K
85
1220
85
1285
85
1310
85
1325
90
1020
90
1055
85
1230
85
1295
85
1320
85
1330
90
1025
90
1065
85
1205
85
1270
85
1295
85
1310
90
1005
90
1045
85
1135
85
1195
85
1220
85
1230
90
945
90
980
6355
6685
6819
6886
5298
5494
3856
4057
4138
4179
3215
3334
2122
2233
2277
2300
1769
1835
1386
1458
1487
1502
1155
1198
HZ
WT
BK
HZ
WT
BK
HZ
WT
BK
HZ
WT
BK
Haze
White
Black
Haze
White
Black
Haze
White
Black
Haze
White
Black
R2A__DL-_______-______
Example: R2ASDL-N930-HZWT
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUL 2018
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Page 2
AETHER Housing
HR-2LED-H13A
HOUSING Model
2”
3S”
HR-2LED-H13A
New Construction
IC-rated, Airtight
HR-2LED-H13____
Example: HR-2LED-H13A
8X”
11W”
14A”
Min 92”
Max 24 2"
HR-2LED-H13AC
New Construction
IC-rated, Airtight
Chicago Plenum
