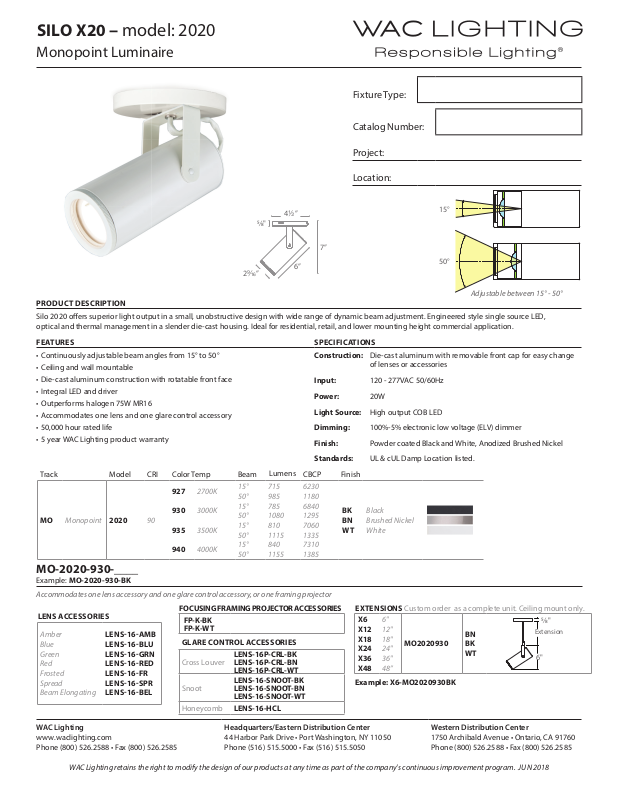

WAC Lighting XDMK3623 Specifications

SILO X20 – model: 2020

Monopoint Luminaire

Fixture Type:

Catalog Number:

Project:

Location:

42”

⁄"

7”

Lumens

715
985
785
1080
810
1115
840
1155

6”

SPECIFICATIONS

Construction: Die-cast aluminum with removable front cap for easy change

Input: 120 - 277VAC 50/60Hz

Power: 20W

Light Source: High output COB LED

Dimming:

Finish: Powder coated Black and White, Anodized Brushed Nickel

Standards: UL & cUL Damp Location listed.

CBCP Finish

6230
1180
6840
1295
7060
1335
7310
1385

of lenses or accessories

100%-5% electronic low voltage (ELV) dimmer

BK

Black

BN

Brushed Nickel

WT

White

2b”

PRODUCT DESCRIPTION

Silo 2020 o ers superior light output in a small, unobstructive design with wide range of dynamic beam adjustment. Engineered style single source LED,
optical and thermal management in a slender die-cast housing. Ideal for residential, retail, and lower mounting height commercial application.

FEATURES

• Continuously adjustable beam angles from 15° to 50°

• Ceiling and wall mountable

• Die-cast aluminum construction with rotatable front face

• Integral LED and driver

• Outperforms halogen 75W MR16

• Accommodates one lens and one glare control accessory

• 50,000 hour rated life

• 5 year WAC Lighting product warranty

Track Model CRI Color Temp Beam

15°
50°
15°
50°
15°
50°
15°
50°

MO Monopoint 2020 90

927

930

935

940

2700K

3000K

3500K

4000K

15°

50°

Adjustable between 15° - 50°

MO-2020-930-____

Example: MO-2020-930-BK

Accommodates one lens accessory and one glare control accessory, or one framing projector

LENS ACCESSORIES

Amber
Blue
Green
Red
Frosted
Spread
Beam Elongating

LENS16AMB
LENS16BLU
LENS16GRN
LENS16RED
LENS16FR
LENS16SPR
LENS16BEL

FOCUSING FRAMING PROJECTOR ACCESSORIES

FP-K-BK
FP-K-WT

GLARE CONTROL ACCESSORIES

Cross Louver

Snoot

Honeycomb LENS-16-HCL

LENS-16P-CRL-BK
LENS-16P-CRL-BN
LENS-16P-CRL-WT

LENS-16-SNOOT-BK
LENS-16-SNOOT-BN
LENS-16-SNOOT-WT

EXTENSIONS Custom order as a complete unit. Ceiling mount only.

X6

6"

X12

12"

X18

18"

X24
X36
X48

Example: X6-MO2020930BK

MO2020930BNBK

24"
36"
48”

WT

Extension

6"

⁄"

WAC Lighting

www.waclighting.com
Phone [phone] • Fax [phone]

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUN 2018
