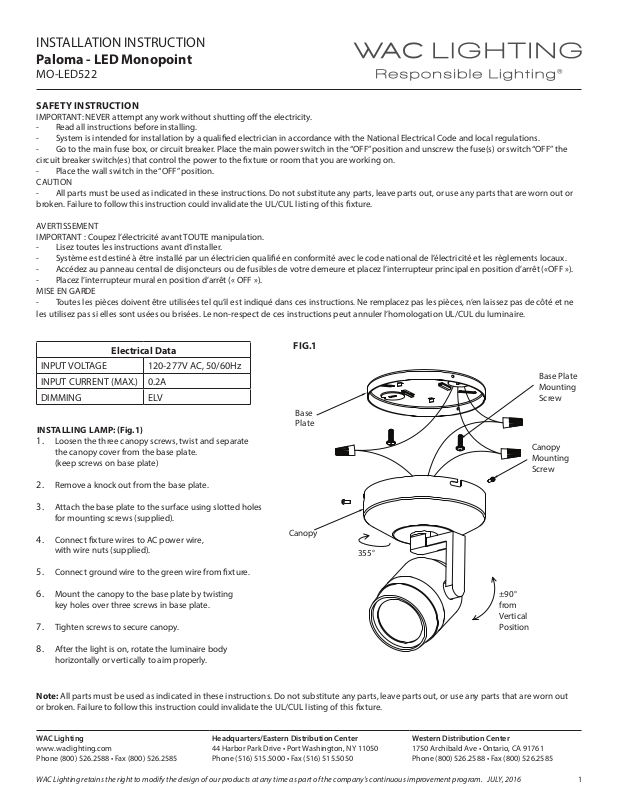

WAC Lighting XDMK3621 Installation & Assembly

INSTALLATION INSTRUCTION

Paloma - LED Monopoint

MO-LED522

SAFETY INSTRUCTION

IMPORTANT: NEVER attempt any work without shutting o the electricity.

- Read all instructions before installing.

- System is intended for installation by a qualied electrician in accordance with the National Electrical Code and local regulations.

- Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch “OFF” the
circuit breaker switch(es) that control the power to the xture or room that you are working on.

- Place the wall switch in the “OFF” position.
CAUTION

- All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out or
broken. Failure to follow this instruction could invalidate the UL/CUL listing of this xture.

AVERTISSEMENT
IMPORTANT : Coupez l’électricité avant TOUTE manipulation.

- Lisez toutes les instructions avant d’installer.

- Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et les règlements locaux.

- Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt («OFF »).

- Placez l’interrupteur mural en position d’arrêt (« OFF »).
MISE EN GARDE

- Toutes les pièces doivent être utilisées tel qu’il est indiqué dans ces instructions. Ne remplacez pas les pièces, n’en laissez pas de côté et ne
les utilisez pas si elles sont usées ou brisées. Le non-respect de ces instructions peut annuler l’homologation UL/CUL du luminaire.

Electrical Data

INPUT VOLTAGE 120-277V AC, 50/60Hz

INPUT CURRENT (MAX.) 0.2A

DIMMING ELV

INSTALLING LAMP: Fig.1)

1. Loosen the three canopy screws, twist and separate

the canopy cover from the base plate.
(keep screws on base plate)

2. Remove a knock out from the base plate.

3. Attach the base plate to the surface using slotted holes

for mounting screws (supplied).

4. Connect xture wires to AC power wire,

with wire nuts (supplied).

5. Connect ground wire to the green wire from xture.

6. Mount the canopy to the base plate by twisting

key holes over three screws in base plate.

7. Tighten screws to secure canopy.

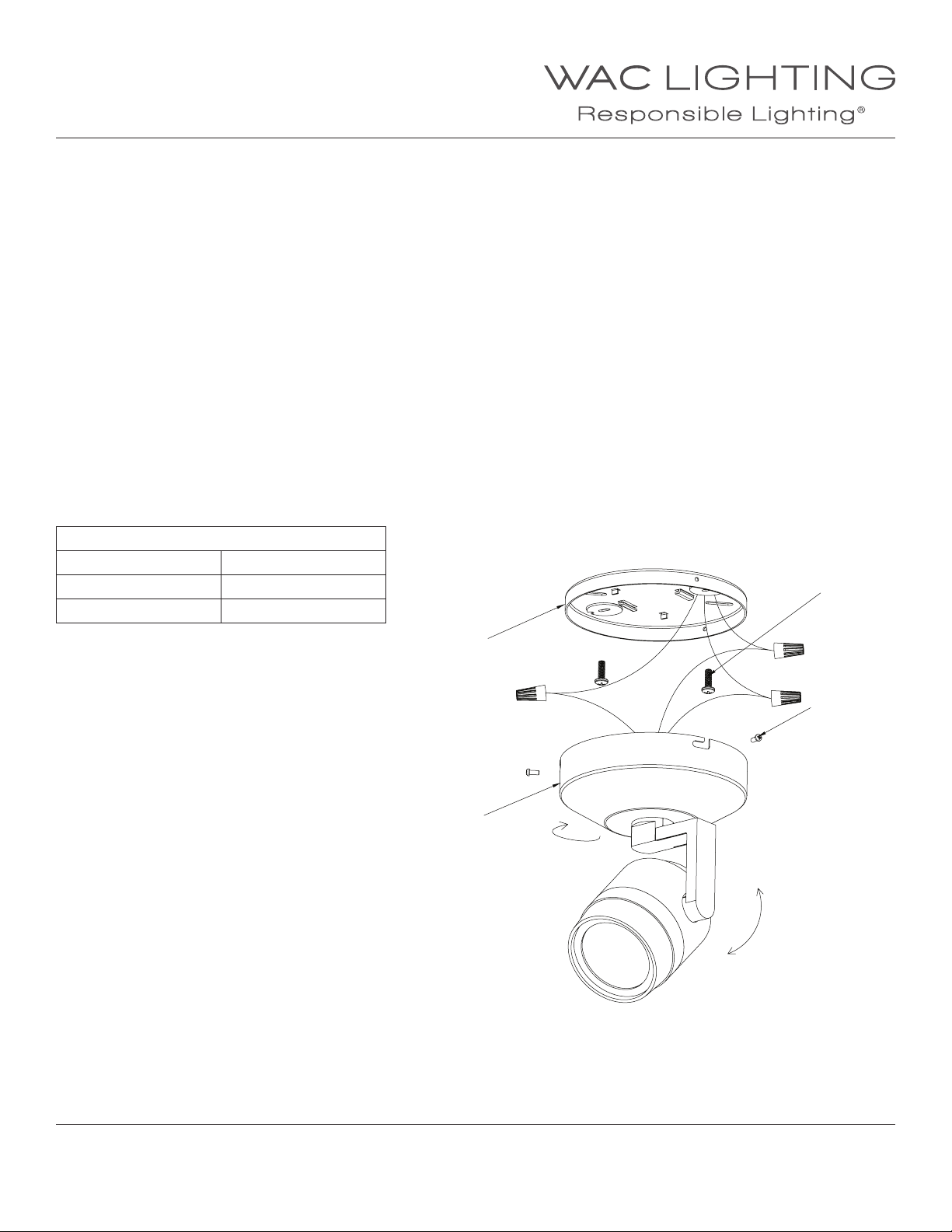

FIG.1

Base Plate
Mounting
Screw

Base
Plate

Canopy
Mounting
Screw

Canopy

355°

±90°
from
Vertical
Position

8. After the light is on, rotate the luminaire body

horizontally or vertically to aim properly.

Note: All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts out, or use any parts that are worn out
or broken. Failure to follow this instruction could invalidate the UL/CUL listing of this xture.

WAC Lighting

www.waclighting.com
Phone [phone] • Fax [phone]

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JULY, 2016 1

Headquarters/Eastern Distribution Center

44 Harbor Park Drive • Port Washington, NY 11050
Phone [phone] • Fax [phone]

Western Distribution Center

1750 Archibald Ave • Ontario, CA 91761
Phone [phone] • Fax [phone]

INSTALLATION INSTRUCTION

Paloma - LED Monopoint

MO-LED522

ACCESSORIES: Fig. 2

1. Take out the Front Cap by rotating it counter clockwise.

2. Push the original Lens Holder and LENS out from the Front Cap and replace it with the new LENS.

3. Put the Front Cap back onto the xture.

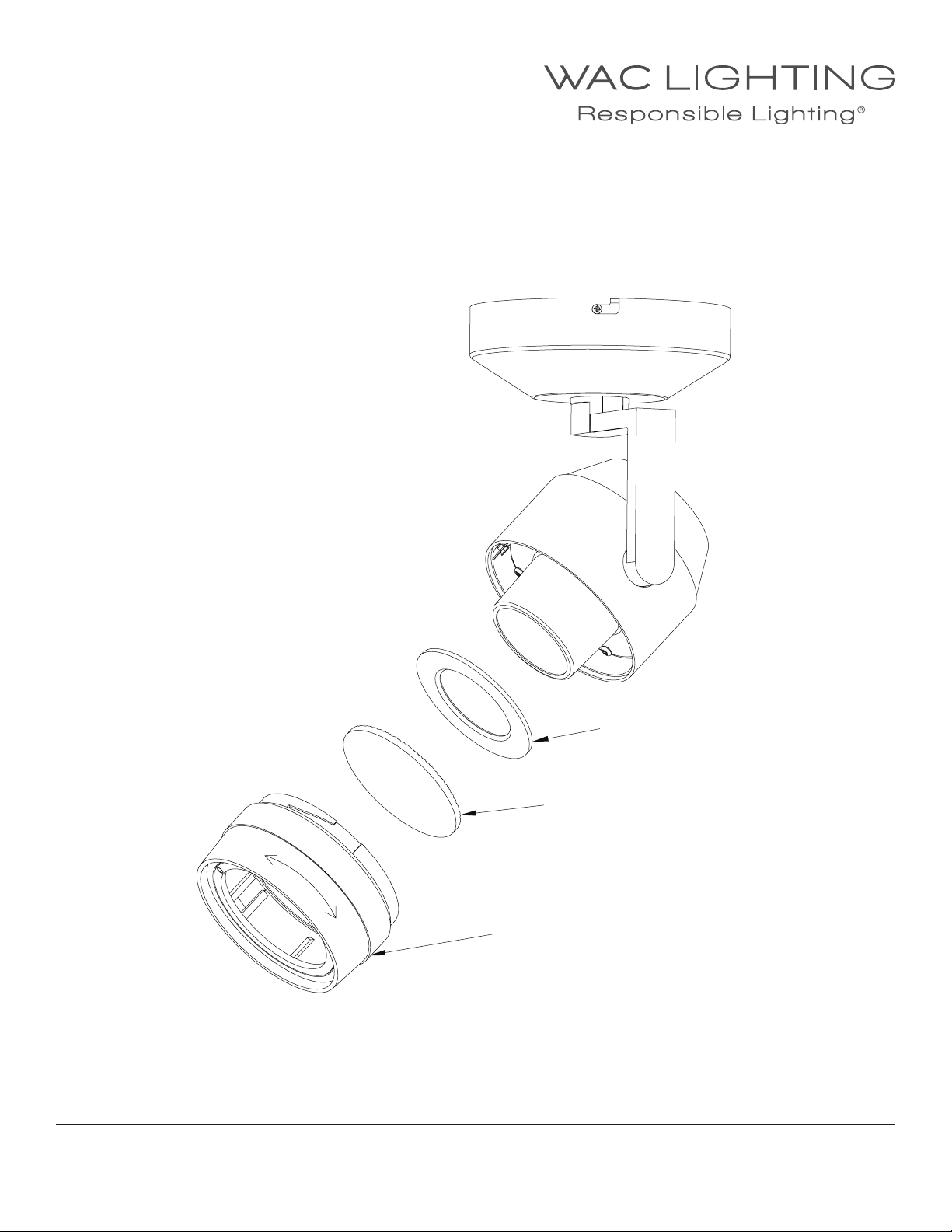

FIG.2

WAC Lighting

www.waclighting.com
Phone [phone] • Fax [phone]

LENS-20

Front Cap

Headquarters/Eastern Distribution Center

44 Harbor Park Drive • Port Washington, NY 11050
Phone [phone] • Fax [phone]

Lens Holder

Western Distribution Center

1750 Archibald Ave • Ontario, CA 91761
Phone [phone] • Fax [phone]

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JULY, 2016 2
