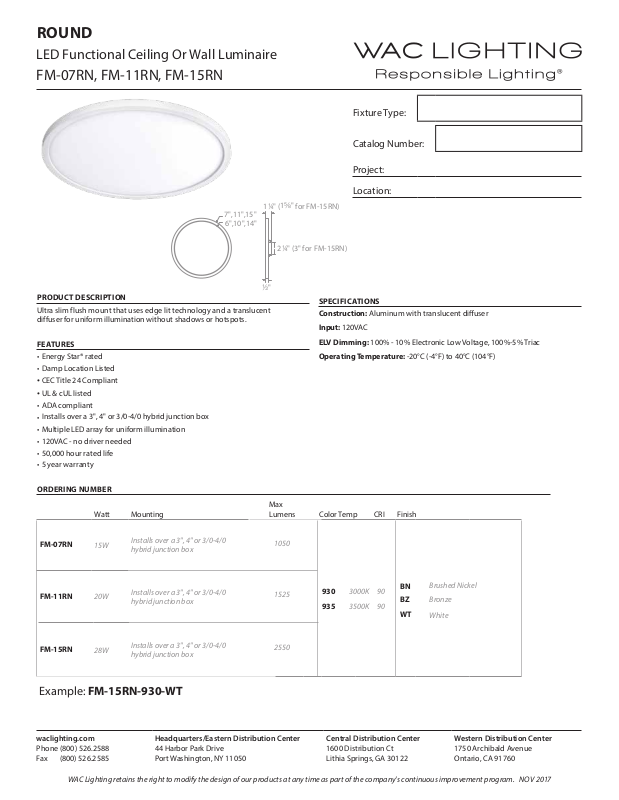

Page 1
ROUND
LED Functional Ceiling Or Wall Luminaire
FM-07RN, FM-11RN, FM-15RN
7",11",15"
6",10",14"
PRODUCT DESCRIPTION
Ultra slim flush mount that uses edge lit technology and a translucent
diffuser for uniform illumination without shadows or hotspots.
FEATURES
• Energy Star® rated
• Damp Location Listed
• CEC Title 24 Compliant
• UL & cUL listed
• ADA compliant
Installs over a 3", 4" or 3/0-4/0 hybrid junction box
•
• Multiple LED array for uniform illumination
• 120VAC - no driver needed
• 50,000 hour rated life
• 5 year warranty
14" ( for FM-15RN)
2"
Fixture Type:
Catalog Number:
Project:
Location:
1s"
24" (3" for FM-15RN)
SPECIFICATIONS
Construction: Aluminum with translucent di user
Input: 120VAC
ELV Dimming: 100% - 10% Electronic Low Voltage, 100%-5% Triac
Operating Temperature: -20°C (-4°F) to 40°C (104°F)
ORDERING NUMBER
Watt Mounting Color Temp
FM-07RN
FM-11RN
FM-15RN
15W
20W
28W
Installs over a 3", 4" or 3/0-4/0
hybrid junction box
Installs over a 3", 4" or 3/0-4/0
hybrid junction box
Installs over a 3", 4" or 3/0-4/0
hybrid junction box
Example: FM-15RN-930-WT
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. NOV 2017
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Max
Lumens
1050
1525
2550
Finish
CRI
930 3000K
935 3500K
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
90
90
BN
BZ Bronze
WT
Brushed Nickel
White
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
