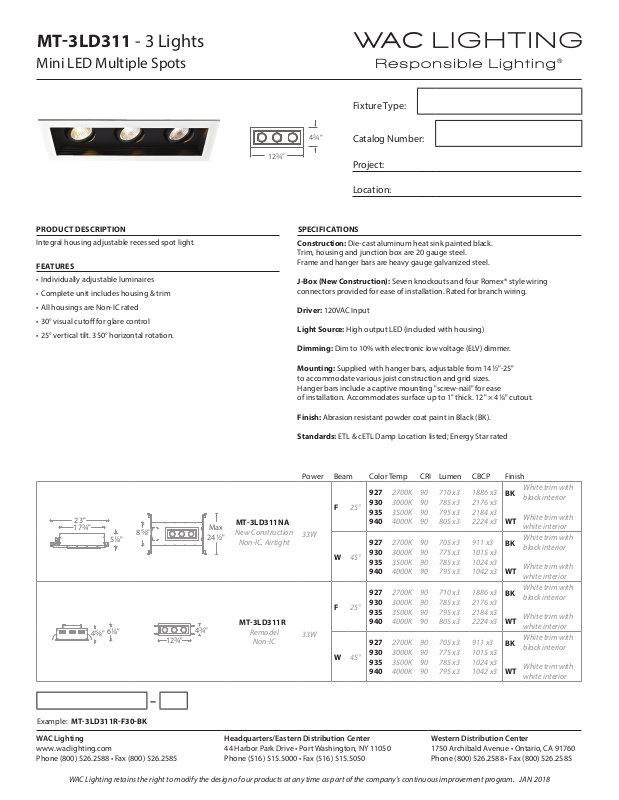

MT3LD311 - 3 Lights
4w”
12w”
Mini LED Multiple Spots
Fixture Type:
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
Integral housing adjustable recessed spot light.
FEATURES
• Individually adjustable luminaires
• Complete unit includes housing & trim
• All housings are Non-IC rated
• 30° visual cuto for glare control
• 25° vertical tilt. 350° horizontal rotation.
23"
17w"
4s"
58"
68"
8s"
12w"
4w"
Max
242"
MT3LD311NA
New Construction
Non-IC, Airtight
MT3LD311R
Remodel
Non-IC
SPECIFICATIONS
Construction: Die-cast aluminum heat sink painted black.
Trim, housing and junction box are 20 gauge steel.
Frame and hanger bars are heavy gauge galvanized steel.
J-Box (New Construction): Seven knockouts and four Romex® style wiring
connectors provided for ease of installation. Rated for branch wiring.
Driver: 120VAC Input
Light Source: High output LED (included with housing)
Dimming:
Mounting: Supplied with hanger bars, adjustable from 142"-25"
to accommodate various joist construction and grid sizes.
Hanger bars include a captive mounting "screw-nail" for ease
of installation. Accommodates surface up to 1" thick. 12" × 48" cutout.
Finish: Abrasion resistant powder coat paint in Black (BK).
Standards: ETL & cETL Damp Location listed; Energy Star rated
Power Beam Color Temp CRI Lumen CBCP Finish
33W
33W
Dim to 10% with electronic low voltage (ELV) dimmer.
927
2700K
90
F 25°
W 45°
F 25°
W 45°
930
935
940
927
930
935
940
927
930
935
940
927
930
935
940
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
2700K
3000K
3500K
4000K
710 x3
90
785 x3
90
795 x3
90
805 x3
90
705 x3
90
775 x3
90
785 x3
90
795 x3
90
710 x3
90
785 x3
90
795 x3
90
805 x3
90
705 x3
90
775 x3
90
785 x3
90
795 x3
1886 x3
2176 x3
2184 x3
2224 x3
911 x3
1015 x3
1024 x3
1042 x3
1886 x3
2176 x3
2184 x3
2224 x3
911 x3
1015 x3
1024 x3
1042 x3
White trim with
BK
black interior
White trim with
WT
white interior
White trim with
BK
black interior
White trim with
WT
white interior
White trim with
BK
black interior
White trim with
WT
white interior
White trim with
BK
black interior
White trim with
WT
white interior
Example: MT3LD311RF30BK
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JAN 2018
–
