HRLED90

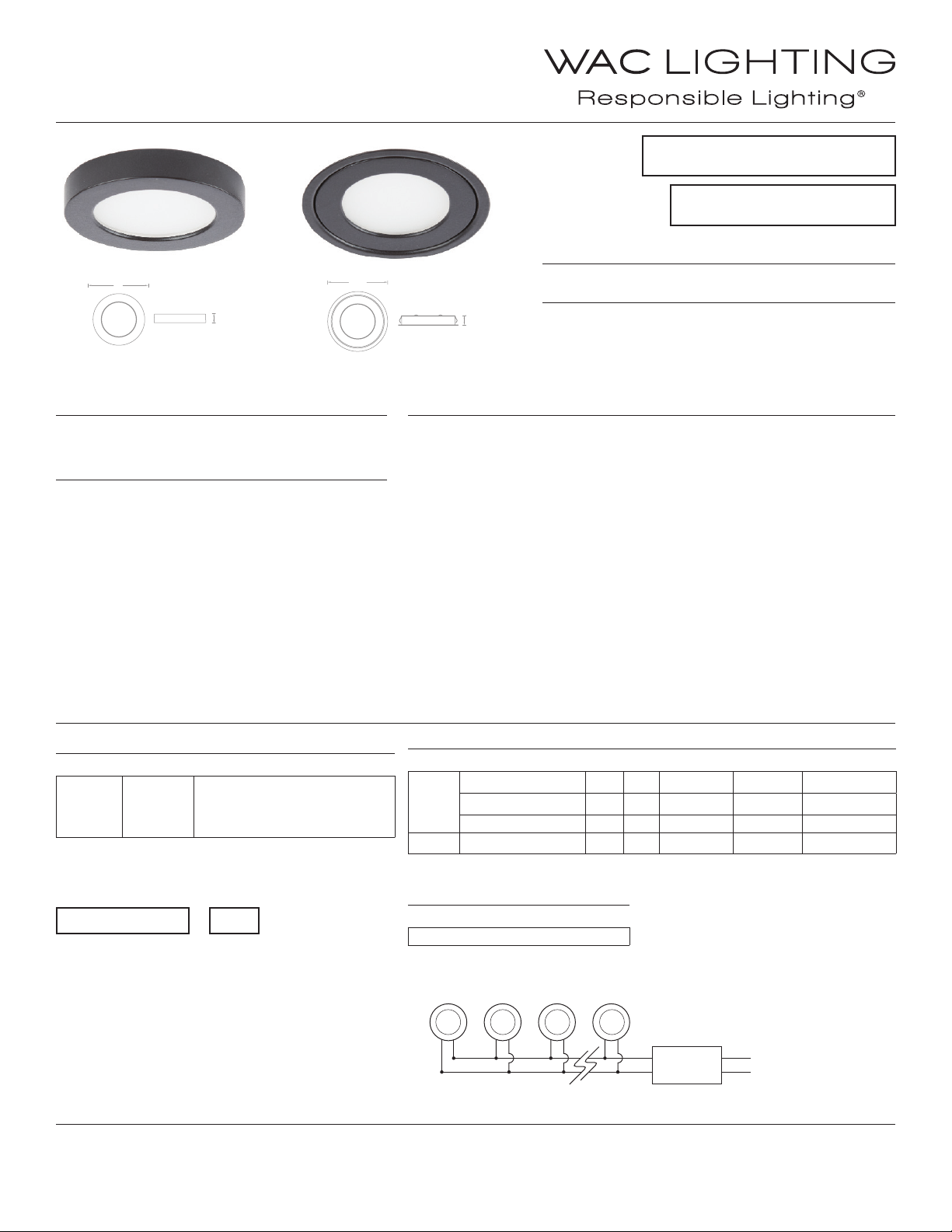

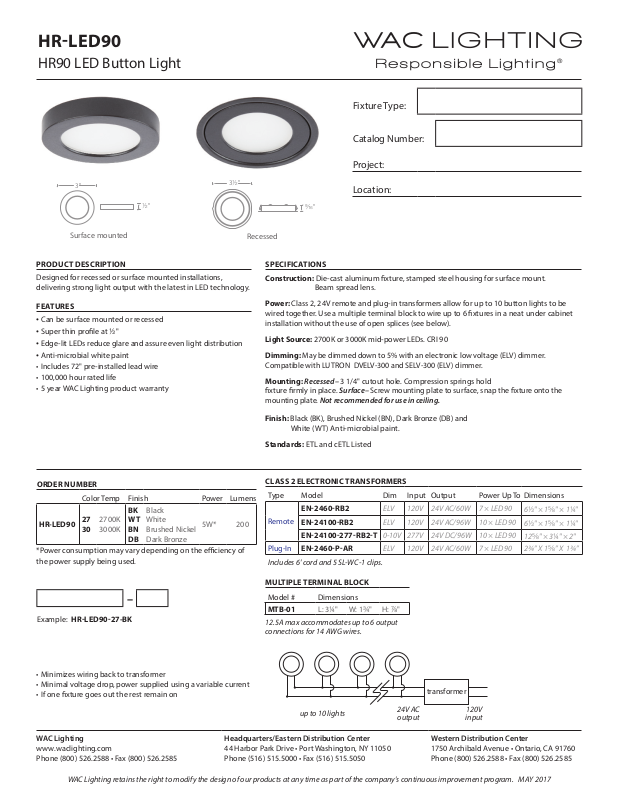

HR90 LED Button Light
3"
2"
Fixture Type:
Catalog Number:
Project:
32"
Location:
b"
Surface mounted
PRODUCT DESCRIPTION
Designed for recessed or surface mounted installations,
delivering strong light output with the latest in LED technology.
FEATURES
• Can be surface mounted or recessed
• Super thin pro le at 2"
• Edge-lit LEDs reduce glare and assure even light distribution
• Anti-microbial white paint
• Includes 72" pre-installed lead wire
• 100,000 hour rated life
• 5 year WAC Lighting product warranty
ORDER NUMBER
Color Temp Finish Power Lumens
BK
HR-LED90
*Power consumption may vary depending on the e ciency of
the power supply being used.
27302700K
3000K
Black
WT
White
BN
Brushed Nickel
DB
Dark Bronze
5W* 200
Recessed
SPECIFICATIONS
Construction: Die-cast aluminum xture, stamped steel housing for surface mount.
Beam spread lens.
Power: Class 2, 24V remote and plug-in transformers allow for up to 10 button lights to be
wired together. Use a multiple terminal block to wire up to 6 xtures in a neat under cabinet
installation without the use of open splices (see below).
Light Source: 2700K or 3000K mid-power LEDs. CRI 90
Dimming:
Compatible with LUTRON DVELV-300 and SELV-300 (ELV) dimmer.
Mounting: Recessed– 3 1/4" cutout hole. Compression springs hold
xture rmly in place. Surface–
mounting plate.
Finish: Black (BK), Brushed Nickel (BN), Dark Bronze (DB) and
White (WT) Anti-microbial paint.
Standards: ETL and cETL Listed
CLASS 2 ELECTRONIC TRANSFORMERS
Type Model Dim Input Output Power Up To Dimensions
Remote
Plug-In EN2460PAR ELV 120V 24V AC/60W 7 × LED90
Includes 6' cord and 5 SL-WC-1 clips.
May be dimmed down to 5% with an electronic low voltage (ELV) dimmer.
Not recommended for use in ceiling.
EN2460RB2 ELV 120V 24V AC/60W 7 × LED90
EN24100RB2 ELV 120V 24V AC/96W 10 × LED90
EN24100277RB2T 0-10V 277V 24V DC/96W 10 × LED90
Screw mounting plate to surface, snap the xture onto the
62" × 1s" × 14"
62" × 1s" × 14"
12s" × 34" × 2"
2¾” X 1s” X 1¾”
–
Example: HRLED9027-BK
• Minimizes wiring back to transformer
• Minimal voltage drop, power supplied using a variable current
• If one xture goes out the rest remain on
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. MAY 2017
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
MULTIPLE TERMINAL BLOCK
Model # Dimensions
MTB-01 L: 34" W: 1w" H: d"
12.5A max accommodates up to 6 output
connections for 14 AWG wires.
up to 10 lights
24V AC
output
transformer
120V
input
