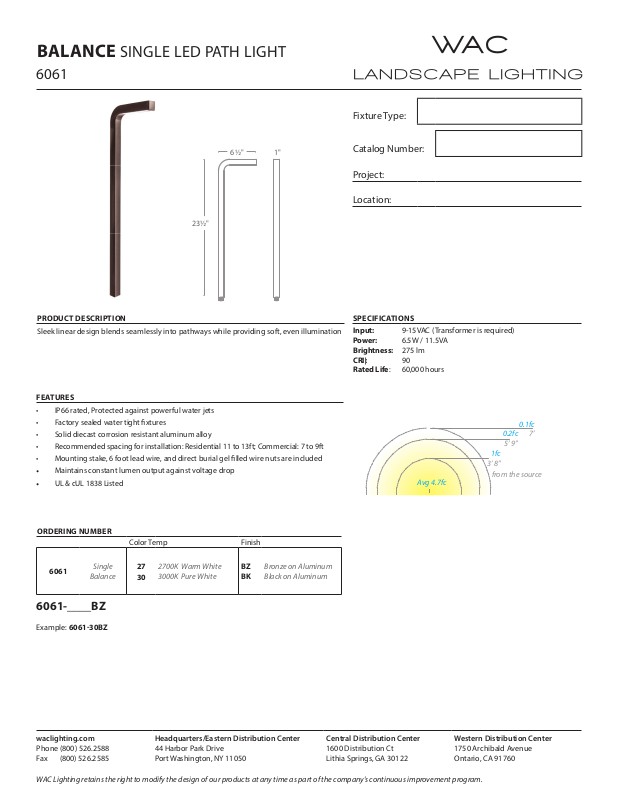

Page 1
BALANCE SINGLE LED PATH LIGHT
6061
Fixture Type:
1"6 ½ "
23½ "
PRODUCT DESCRIPTION
Sleek linear design blends seamlessly into pathways while providing soft, even illumination
FEATURES
• I
P66 rated, Protected against powerful water jets
•
Factory sealed water tight xtures
•
Solid diecast corrosion resistant aluminum alloy
•
Recommended spacing for installation: Residential 11 to 13ft; Commercial: 7 to 9ft
•
Mounting stake, 6 foot lead wire, and direct burial gel lled wire nuts are included
•
Maintains constant lumen output against voltage drop
•
UL & cUL 1838 Listed
Catalog Number:
Project:
Location:
SPECIFICATIONS
Input:
Power:
Brightness:
CRI:
Rated Life:
9-15VAC (Transformer is required)
6.5W / 11.5VA
275 lm
90
60,000 hours
Avg 4.7fc
0.1fc
0.2fc
5’ 9”
1fc
3’ 8”
from the source
7’
ORDERING NUMBER
Color Temp Finish
27
6061
Single
Balance
2700K Warm White
3000K Pure White
30
BZBKBronze on Aluminum
Black on Aluminum
6061-____BZ
Example: 606130BZ
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Page 2
BALANCE SINGLE LED PATH LIGHT
6061
Surface Mount Flange/Stake
Includes three 7 inch threaded stainless steel stabilizing pins for ground
mounting or surface mounts with four screws or over a junction box
5000-SCP-BZ
Bronze on Aluminum
Guardian Mount
Heavy duty stainless steel spike to position xture.
Formed from a single piece of metal
9000-SP9-BZ
Stainless Steel
Additional
Mounting Stake
9000-ST9-BK
Durable PVC stake
9075-TRN-SS
75W Max
Magnetic Transformers
Stainless Steel, 12-15V output, IP65 rated, UL 1838 listed
See transformer spec sheet for details and its accessories
9150-TRN-SS
150W Max
9300-TRN-SS
300W Max
9600-TRN-SS
600W Max
