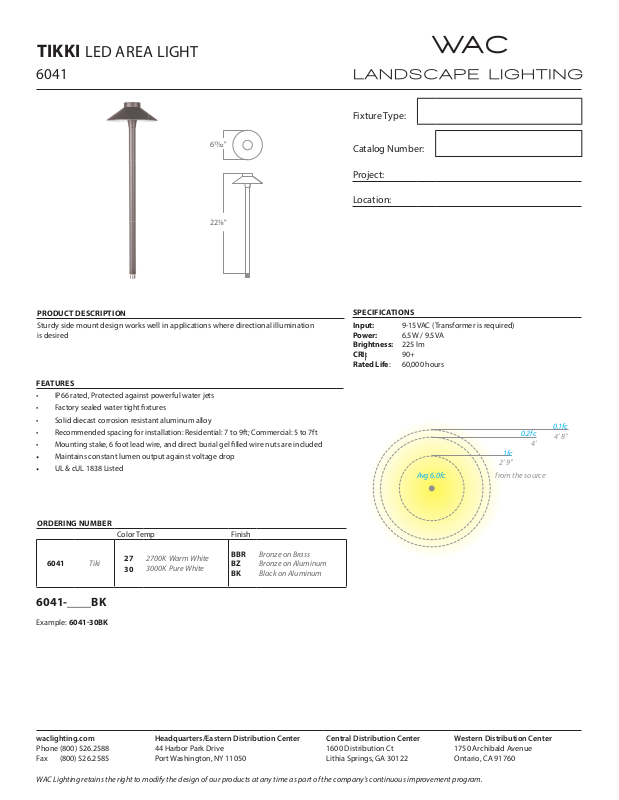

Page 1
TIKKI LED AREA LIGHT
6041
Fixture Type:
6⁄"
22⁄"
PRODUCT DESCRIPTION
Sturdy side mount design works well in applications where directional illumination
is desired
FEATURES
• I
P66 rated, Protected against powerful water jets
•
Factory sealed water tight xtures
•
Solid diecast corrosion resistant aluminum alloy
•
Recommended spacing for installation: Residential: 7 to 9ft; Commercial: 5 to 7ft
•
Mounting stake, 6 foot lead wire, and direct burial gel lled wire nuts are included
•
Maintains constant lumen output against voltage drop
•
UL & cUL 1838 Listed
Catalog Number:
Project:
Location:
SPECIFICATIONS
Input:
Power:
Brightness:
CRI:
Rated Life:
9-15VAC (Transformer is required)
6.5W / 9.5VA
225 lm
90+
60,000 hours
Avg 6.0fc
0.2fc
4'
1fc
2’ 9”
from the source
0.1fc
4’ 8”
ORDERING NUMBER
Color Temp Finish
BBR
6041 Tiki
27
2700K Warm White
3000K Pure White
30
Bronze on Brass
BZ
Bronze on Aluminum
BK
Black on Aluminum
6041-____BK
Example: 604130BK
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
Page 2
TIKKI LED AREA LIGHT
6041
Surface Mount Flange/Stake
Includes three 7 inch threaded stainless steel stabilizing pins for ground
mounting or surface mounts with four screws or over a junction box
5000-SCP-BZ
Bronze on Aluminum
Guardian Mount
Heavy duty stainless steel spike to position xture.
Formed from a single piece of metal
9000-SP9-BZ
Stainless Steel
Additional
Mounting Stake
9000-ST9-BK
Durable PVC stake
9075-TRN-SS
75W Max
Magnetic Transformers
Stainless Steel, 12-15V output, IP65 rated, UL 1838 listed
See transformer spec sheet for details and its accessories
9150-TRN-SS
150W Max
9300-TRN-SS
300W Max
9600-TRN-SS
600W Max
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program.
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
