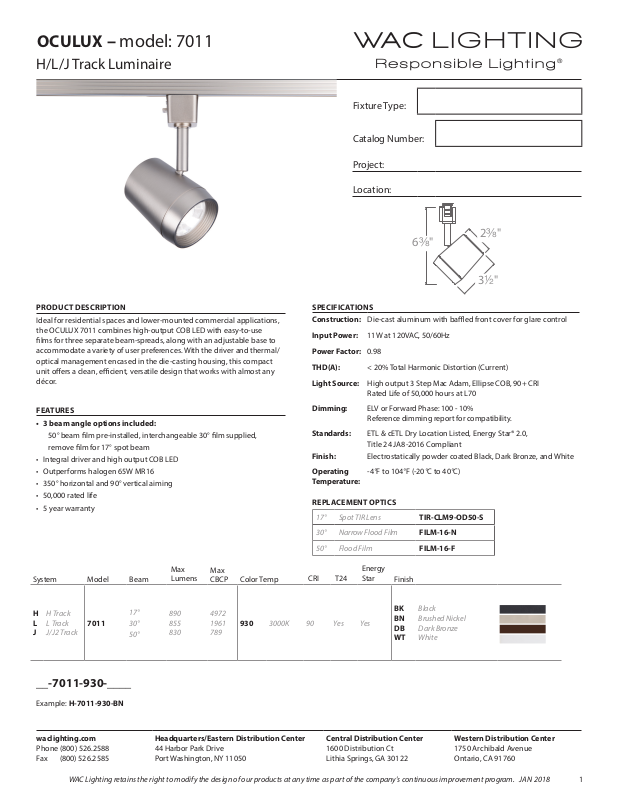

OCULUX – model: 7011
H/L/J Track Luminaire
Fixture Type:
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
Ideal for residential spaces and lower-mounted commercial applications,
the OCULUX 7011 combines high-output COB LED with easy-to-use
lms for three separate beam-spreads, along with an adjustable base to
accommodate a variety of user preferences. With the driver and thermal/
optical management encased in the die-casting housing, this compact
unit oers a clean, ecient, versatile design that works with almost any
décor.
FEATURES
• 3 beam angle options included:
50° beam lm pre-installed, interchangeable 30° lm supplied,
remove lm for 17° spot beam
• Integral driver and high output COB LED
• Outperforms halogen 65W MR16
• 350° horizontal and 90° vertical aiming
• 50,000 rated life
• 5 year warranty
6a"
2a"
32"
SPECIFICATIONS
Construction: Die-cast aluminum with baed front cover for glare control
Input Power: 11W at 120VAC, 50/60Hz
Power Factor: 0.98
THD(A): < 20% Total Harmonic Distortion (Current)
Light Source: High output 3 Step Mac Adam, Ellipse COB, 90+ CRI
Dimming:
Standards: ETL & cETL Dry Location Listed, Energy Star® 2.0,
Finish: Electrostatically powder coated Black, Dark Bronze, and White
Operating
Temperature:
REPLACEMENT OPTICS
17° Spot TIR Lens TIR-CLM9-OD50-S
30° Narrow Flood Film FILM-16-N
50° Flood Film FILM-16-F
Rated Life of 50,000 hours at L70
ELV or Forward Phase: 100 - 10%
Reference dimming report for compatibility.
Title 24 JA8-2016 Compliant
-4°F to 104°F (-20°C to 40°C)
System Model Beam
H
L
J
H Track
L Track
J/J2 Track
7011
17°
30°
50°
__-7011-930-____
Example: H-7011-930-BN
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JAN 2018
Max
Lumens
890
855
830
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Max
CBCP Color Temp
4972
1961
930 3000K 90 Yes Ye s
789
CRI T24
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Energy
Star
Finish
BK
BN
DB
WT
Black
Brushed Nickel
Dark Bronze
White
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
