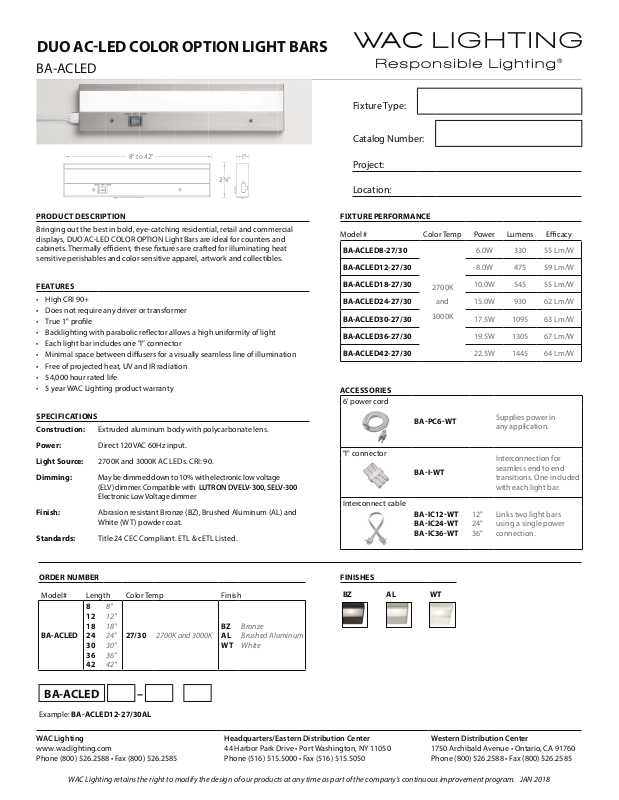

Page 1
DUO ACLED COLOR OPTION LIGHT BARS
2
w
BA-ACLED
Fixture Type:
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
Bringing out the best in bold, eye-catching residential, retail and commercial
displays, DUO AC-LED COLOR OPTION Light Bars are ideal for counters and
cabinets. Thermally e cient, these xtures are crafted for illuminating heat
sensitive perishables and color sensitive apparel, artwork and collectibles.
FEATURES
• High CRI 90+
• Does not require any driver or transformer
• True 1" pro le
• Backlighting with parabolic re ector allows a high uniformity of light
• Each light bar includes one "I" connector
• Minimal space between di users for a visually seamless line of illumination
• Free of projected heat, UV and IR radiation
• 54,000 hour rated life
• 5 year WAC Lighting product warranty
SPECIFICATIONS
Construction: Extruded aluminum body with polycarbonate lens.
Power: Direct 120VAC 60Hz input.
Light Source: 2700K and 3000K AC LEDs. CRI: 90.
Dimming:
Finish: Abrasion resistant Bronze (BZ), Brushed Aluminum (AL) and
Standards: Title 24 CEC Compliant. ETL & cETL Listed.
May be dimmed down to 10% with electronic low voltage
(ELV) dimmer. Compatible with LUTRON DVELV-300, SELV-300
Electronic Low Voltage dimmer
White (WT ) powder coat.
FIXTURE PERFORMANCE
Model # Color Temp Power Lumens E cacy
BA-ACLED8-27/30
BA-ACLED12-27/30 8.0W 475 59 Lm/W
BA-ACLED18-27/30 10.0W 545 55 Lm/W
BA-ACLED24-27/30 15.0W 930 62 Lm/W
BA-ACLED30-27/30 17.5W 1095 63 Lm/W
BA-ACLED36-27/30 19.5W 1305 67 Lm/W
BA-ACLED42-27/30 22.5W 1445 64 Lm/W
ACCESSORIES
6' power cord
"I" connector
Interconnect cable
2700K
and
3000K
BAPC6WT
BAIWT
BAIC12WT
BAIC24WT
BAIC36WT
6.0W 330 55 Lm/W
Supplies power in
any application.
Interconnection for
seamless end to end
transitions. One included
with each light bar.
12"
Links two light bars
24"
using a single power
36"
connection.
ORDER NUMBER
Model# Length Color Temp Finish
8
8"
12
12"
18
BA-ACLED
24
30
36
42
18"
24"
27/30 2700K and 3000KBZAL
30"
36"
42"
WT
Bronze
Brushed Aluminum
White
FINISHES
BZ AL WT
BA-ACLED –
Example: BAACLED1227/30AL
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JAN 2018
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585
